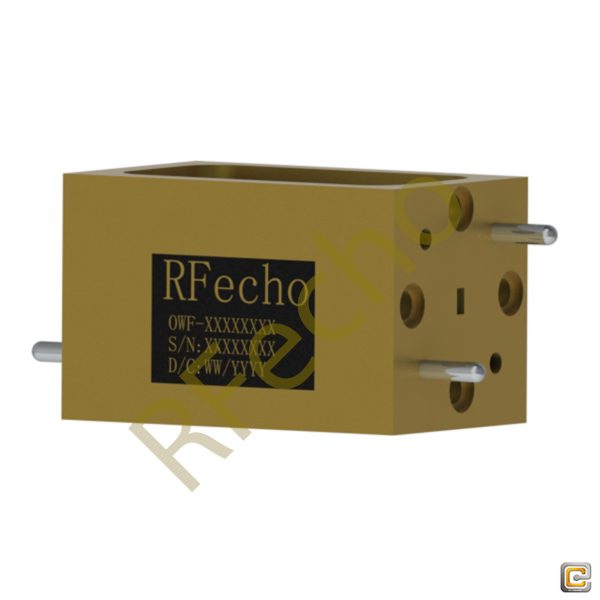

Microwave Bandpass Filter model OWBP-1090014000-08 is F band waveguide filter with a passband frequency from 109GHz to 140GHz and a rejection frequency 145GHz to 160GHz. Due to the waveguide cut off nature of F Band Waveguide filter, the low side of this RF filter has rejection range of DC to 94GHz. Our Microwave bandpass filter provides a nominal insertion loss of 2.5dB across its passband and a typical rejection of 40dB. Since the high end cutoff frequency of F Band Waveguide filter can be changed by modifying the design, custom designs can be offered under different model numbers. RF bandpass filter has operating temperature of -40c to +80c.
109GHz to 140GHz Ocean Bandpass filter from RFecho is just one part in a large selection of our RF Components. Our 109GHz to 140GHz Microwave Bandpass filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-1090014000-08 Categories: Passive Devices, RF Filter Bandpass, RF Filters

Description

PDF

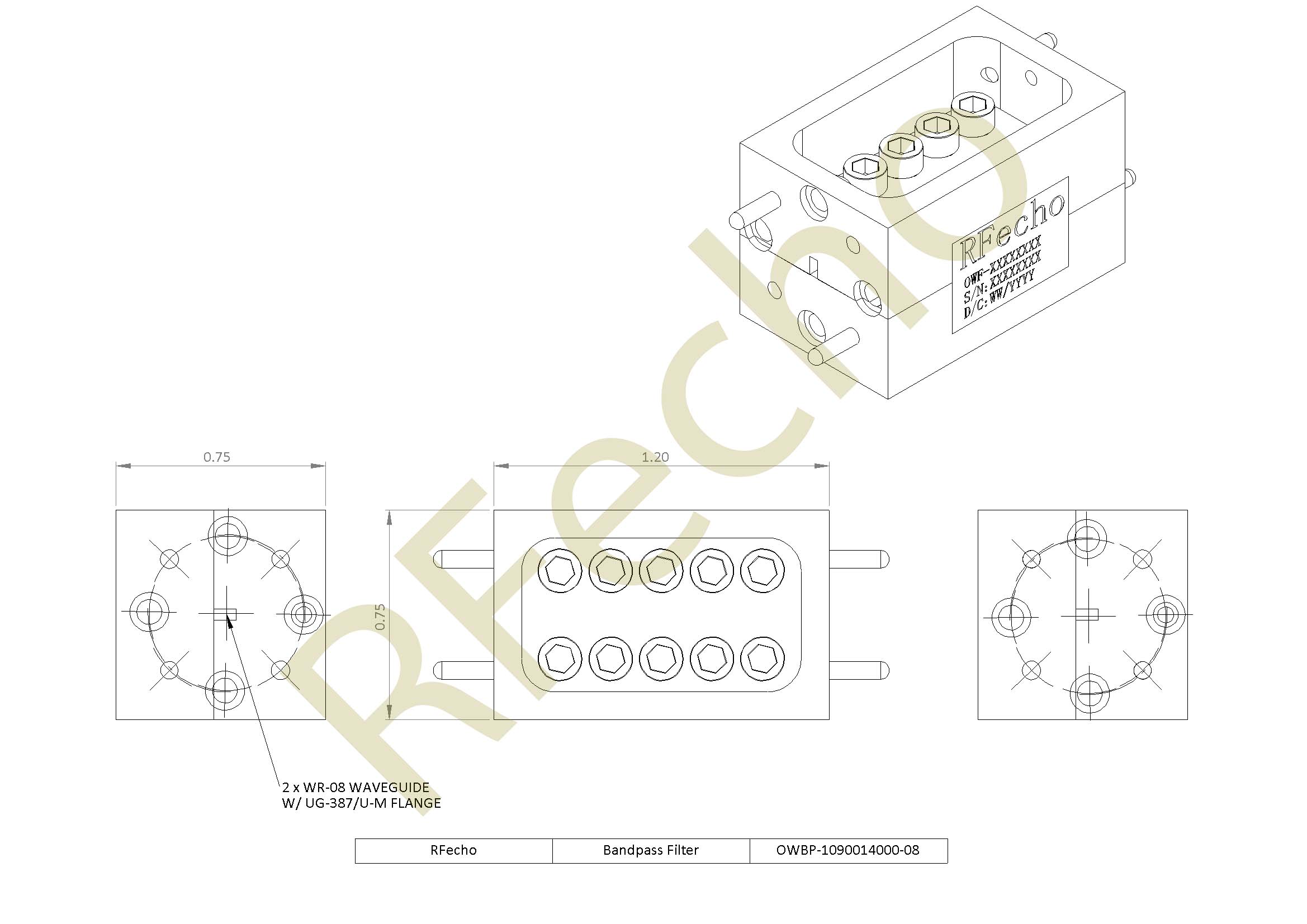

Outline

Microwave Bandpass filter 109GHz to 140GHz F band waveguide  filter with Rejection Frequency 145GHz to 160GHz

Plot

Microwave Bandpass filter 109GHz to 140GHz F band waveguide  filter with Rejection Frequency 145GHz to 160GHz

Additional information

Filter Type

RF Filter Bandpass

Min Pass Band Freq. (GHz)

109

Max Pass Band Freq. (GHz)

140

Insertion Loss (dB)

2.5

Rejection (dB)

40

Max Rejection Freq. Lowside

94

Min Rejection Freq. Highside

145

Waveguide Port

WR-08
