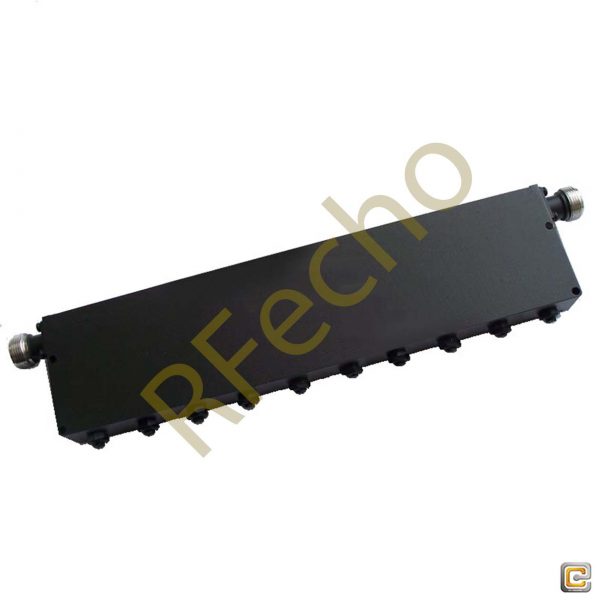

Cavity Band Rejection Filter OBR-1795-10

Cavity Band Rejection Filter OBR-1795-10

Ocean Microwave Bandstop Filters (Ocean Bandstop Filters, abbreviation:OBR) refer to filters that can pass through most frequency but attenuate some range of frequency to extremely low levels, which is opposite to the concept of band-pass filters. Among them, the notch filter is a special band-stop filter with a very small stop band range and a very high Q Factor.
The product name of this Ocean Bandstop Filters (OBR) is OBR-1795-10, its Stop Band Frequency is 1790~1800MHz,Stop Ba nd attenuation is 60dB, its Pass Band Frequency is DC~1775MHz & 1815~5000MHz, and its Pass Band Insertion Loss is 2.5dB. Its Pass BandVSW.R is 1.5:1

SKU: OBR-1795-10 Categories: ,

Description

PDF

Outline

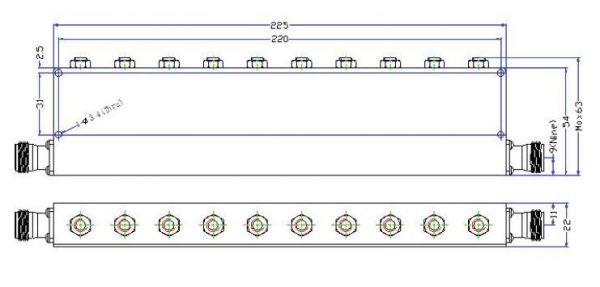

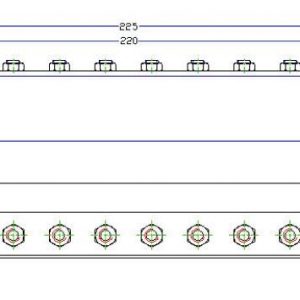

OBR 1795 10 outline Cavity Band Rejection Filter OBR-1795-10

Plot

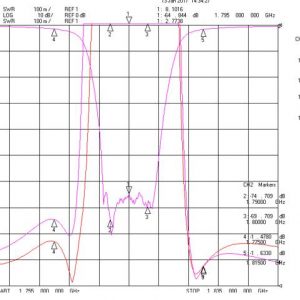

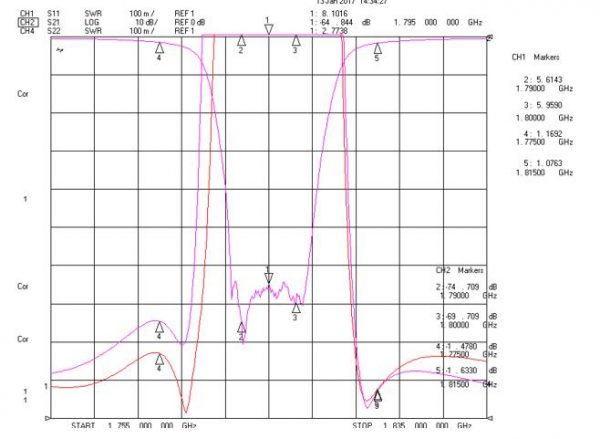

OBR 1795 10 plot1 Cavity Band Rejection Filter OBR-1795-10

Additional information

Center Frequency (F0) (MHz)

Stop Band Min. Frequency (MHz)

Stop Band Max. Frequency (MHz)

Stop Band Attenuation (dB)

Band Min. Frequency (MHz) A

Band Max. Frequency (MHz) A

Band Min. Frequency (MHz) B

Band Max. Frequency (MHz) B

Pass Band Insertion Loss (dB)

Impedance (Ω)

Power Handling (W)

Connection Type
