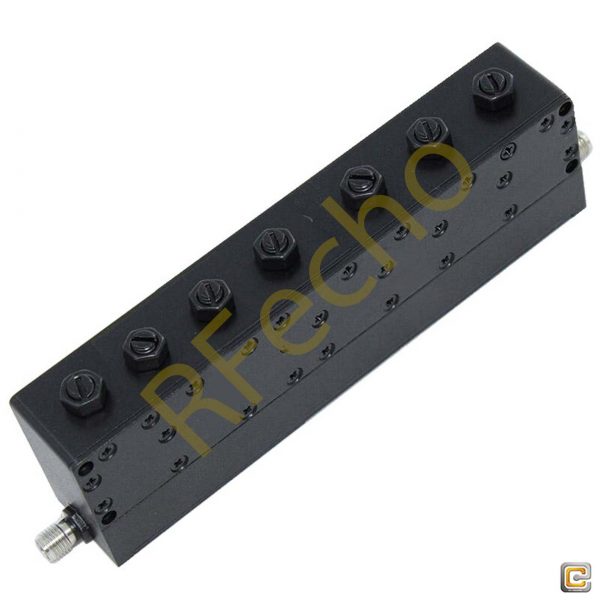

Band Reject Passive Microwave Filter 2400MHz to 2500MHz rejection ≥ 40dB RF Passive Band Reject Filter with SMA Female Connector

Band Reject Passive Microwave Filter model OHP: 2450-500 also known as Band Stop filter and Notch Filter that passes most frequencies unaltered but attenuates frequencies in a specific range to a very low level. This Band Reject Passive Microwave Filter manufactured with a stopband frequency from 2400MHz to 2500MHz and a passband frequency from DC to 2.3GHz & 2.6GHZ to 6GHz. RF Passive Band Reject Filter provides a nominal insertion loss of ≤1.0dB across its passband and a typical rejection of ≥40. This Band Reject Passive Microwave Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This RF Passive Band Reject Filter has Passband VSWR of ≤1.5:1 and Impedance of 50ohms. Band Reject Passive Microwave Filter is manufactured with SMA Female Connector and Net Weight of 0.21Kg. Our Ocean Microwave Band Reject Filter has power Handling of ≤10W.

2400MHz to 2500MHz Ocean Band Stop Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 2400MHz to 2500MHz Band Reject Passive Microwave Filter is ready for shipping worldwide after purchase. Additional specs of this RF Passive Band Reject Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OBR-2450-500 Categories: Cavity Band Reject Filter, RF Cavity Filter, RF Filters

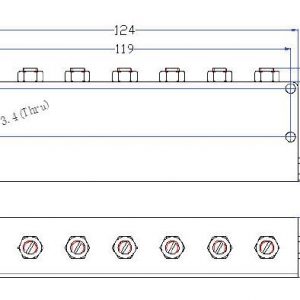

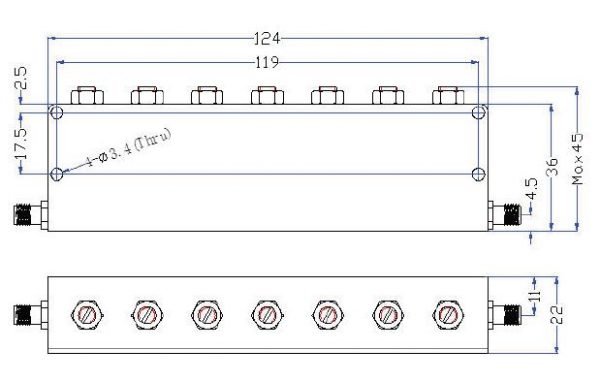

Description

OBR-2450-500 band-reject filter (also called a band-stop filter or notch filter in narrow stopband) from RFecho is just part of a wide selection of coaxial RF filter products supplied. This RF band reject filter is built from 1495MHz to 1510MHz with SMA Female connectors. The SMA band-reject filter design is rated for a VSWR of 1.5:1 and a maximum power of 10 Watts.

RFecho band-reject / band-stop filters have a minimum stopband frequency of 200 MHz and a maximum stopband frequency of 18GHz. The band-stop / notch filter part number OBR-2450-500 has an insertion loss maximum that is 1.0 dB. More RF coaxial band-stop / notch filter specs for this radio frequency component can be found on its notch/rejection RF filter PDF specifications datasheet.

RFecho also stocks a large selection of other band-stop RF filter products that will ship the same day from our location. RF/microwave and millimeter wave cavity filter components and other RF parts for radio, antenna, other types of radio frequency component connections in typical use, production, test and measurement labs, military/defense, etc. are in stock and ship same day from our warehouse inventory.



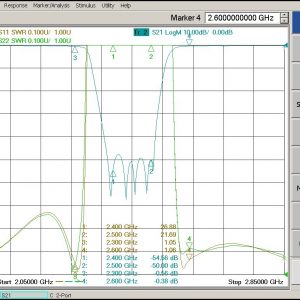

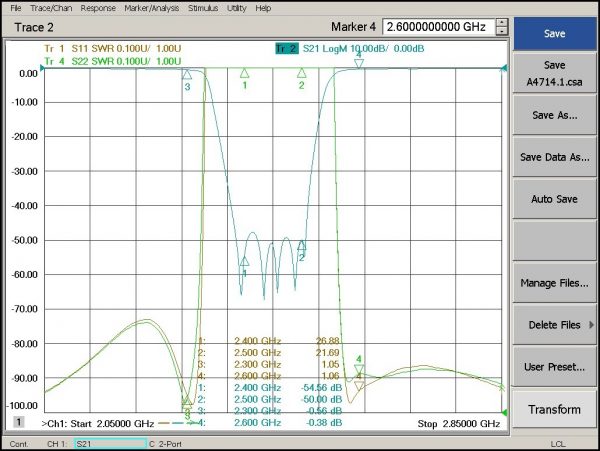

Band Reject Filter Datasheet (Click to download)



Additional information

Center Frequency (F0) (MHz)

NA

Stop Band Min. Frequency (MHz)

2400

Stop Band Max. Frequency (MHz)

2500

Stop Band Attenuation (dB)

≥40

Band Min. Frequency (MHz) A

DC

Band Max. Frequency (MHz) A

2300

Band Min. Frequency (MHz) B

2600

Band Max. Frequency (MHz) B

6000

Pass Band Insertion Loss (dB)

≤1

Impedance (Ω)

50

Power Handling (W)

≤10

Connection Type

SMA-Female
