Cavity Band Rejection Filter OBR-1842-75

Cavity Band Rejection Filter OBR-1842-75

Ocean Microwave Bandstop Filters (Ocean Bandstop Filters,abbreviation:OBR) refer to filters that can pass through most frequency but attenuate some range of frequency to extremely low levels, which is opposite to the concept of band-pass filters. Among them, the notch filter is a special band-stop filter with a very small stop band range and a very high Q Factor.

The product name of this Ocean Bandstop Filters (OBR) is OBR-1842-75,its Stop Band Frequency is 1.805-1.88GHz ,Stop Band attenuation is 50dB,its Pass Band Frequency is
DC-1.78GHz&1.905-5GHz, and its Pass Band Insertion Loss is 2.0dB. Its Pass Band VSWR is 1.5.

SKU: OBR-1842-75 Categories: ,

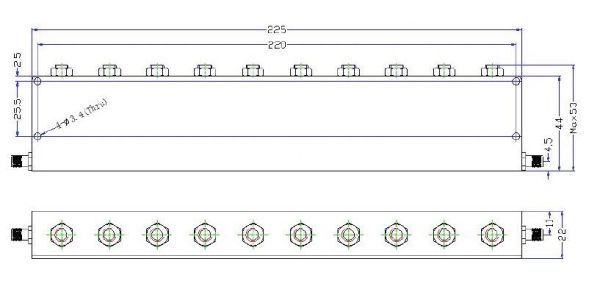

OBR 1842 75 outline Cavity Band Rejection Filter OBR-1842-75

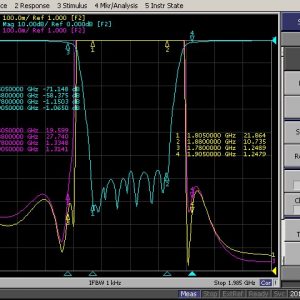

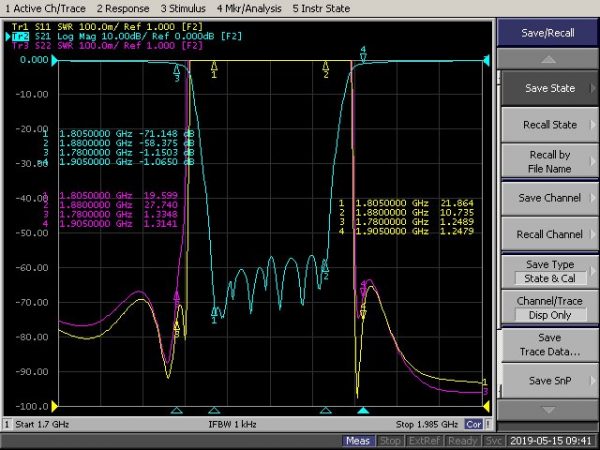

OBR 1842 75 plot1 Cavity Band Rejection Filter OBR-1842-75

Additional information

Center Frequency (F0) (MHz)

Stop Band Min. Frequency (MHz)

Stop Band Max. Frequency (MHz)

Stop Band Attenuation (dB)

Band Min. Frequency (MHz) A

Band Max. Frequency (MHz) A

Band Min. Frequency (MHz) B

Band Max. Frequency (MHz) B

Pass Band Insertion Loss (dB)

Impedance (Ω)

Power Handling (W)

Connection Type
