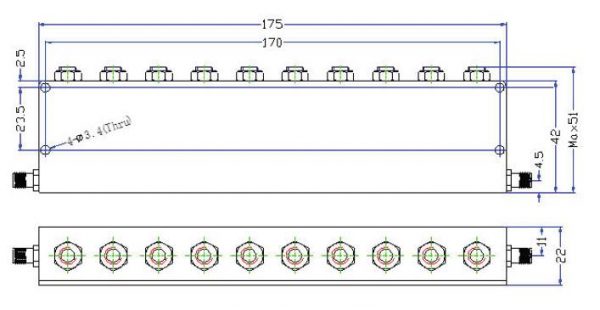

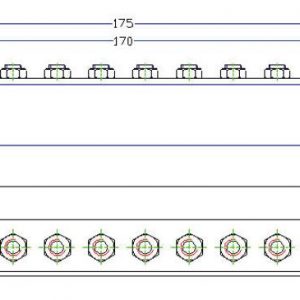

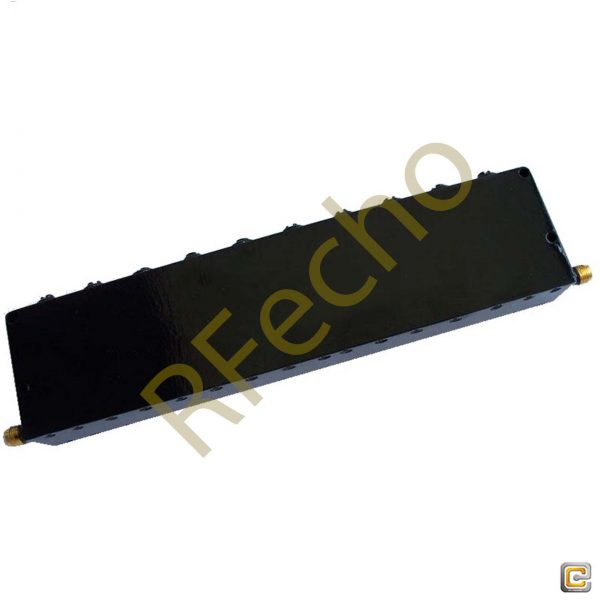

2110MHz to 2180MHz RF Band Reject Filter rejection ≥ 50dB Microwave Passive Band Reject Filter with SMA Female Connector

2110MHz to 2180MHz RF Band Reject Filter model OHP: 2145-70 also known as Band Stop filter and Notch Filter that passes most frequencies unaltered but attenuates frequencies in a specific range to a very low level. This 2110MHz to 2180MHz RF Band Reject Filter manufactured with a stopband frequency from 2110MHz to 2180MHz and a passband frequency from DC to 2085MHz & 2210MHZ to 6000MHz. Microwave Passive Band Reject Filter provides a nominal insertion loss of ≤1.0dB @ DC to 2065MHz @ 2230MHz 50 6000MHz | ≤2.0dB @ 2065MHz to 2085MHz & 2210MHz to 2230Mhz across its passband and a typical rejection of ≥50. Our 2110MHz to 2180MHz RF Band Reject Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Microwave Passive Band Reject Filter has Passband VSWR of ≤1.7:1 and Impedance of 50ohms. 2110MHz to 2180MHz RF Band Reject Filter is manufactured with SMA Female Connector and Net Weight of 0.33Kg. Our Ocean Microwave Band Reject Filter has power Handling of ≤20W. 2110MHz to 2180MHz Ocean Band Stop Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 2110MHz to 2180MHz RF Band Reject Filter is ready for shipping worldwide after purchase. Additional specs of this Band Reject Microwave Passive Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OBR-2145-70 Categories: Cavity Band Reject Filter, RF Cavity Filter, RF Filters

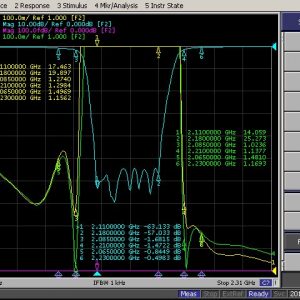

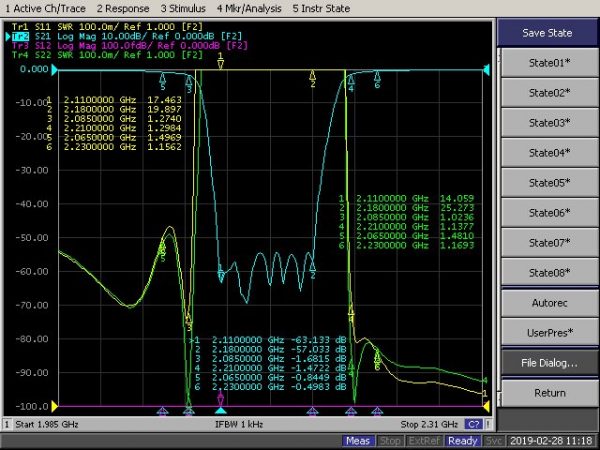

Description

OBR-2145-70 band-reject filter (also called a band-stop filter or notch filter in narrow stopband) from RFecho is just part of a wide selection of coaxial RF filter products supplied. This RF band reject filter is built from 2110MHz to 2180MHz with SMA Female connectors. The SMA band-reject filter design is rated for a VSWR of 1.7:1 and a maximum power of 20 Watts.

RFecho band-reject / band-stop filters have a minimum stopband frequency of 200 MHz and a maximum stopband frequency of 18GHz. The band-stop / notch filter part number OBR-2145-70 has an insertion loss maximum that is 2.0 dB. More RF coaxial band-stop / notch filter specs for this radio frequency component can be found on its notch/rejection RF filter PDF specifications datasheet.

RFecho also stocks a large selection of other band-stop RF filter products that will ship the same day from our location. RF/microwave and millimeter wave cavity filter components and other RF parts for radio, antenna, other types of radio frequency component connections in typical use, production, test and measurement labs, military/defense, etc. are in stock and ship same day from our warehouse inventory.



Band Reject Filter Datasheet (Click to download)



Additional information

Center Frequency (F0) (MHz)

NA

Stop Band Min. Frequency (MHz)

2110

Stop Band Max. Frequency (MHz)

2180

Stop Band Attenuation (dB)

≥50

Band Min. Frequency (MHz) A

DC

Band Max. Frequency (MHz) A

2085

Band Min. Frequency (MHz) B

2210

Band Max. Frequency (MHz) B

6000

Pass Band Insertion Loss (dB)

≤1

Impedance (Ω)

50

Power Handling (W)

≤20

Connection Type

SMA-Female
