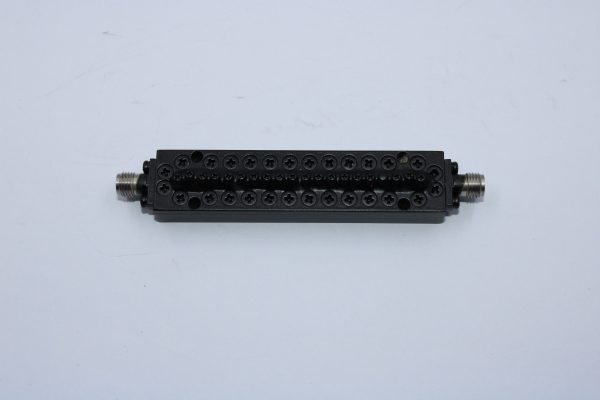

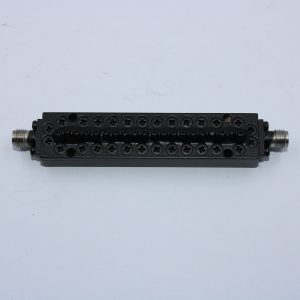

Band Pass Filter From 28-43.5GHz OBP-35750-5500 With 2.92mm(K)-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

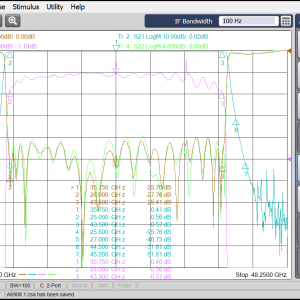

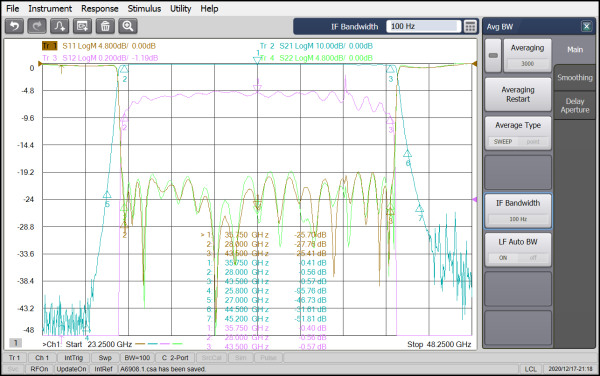

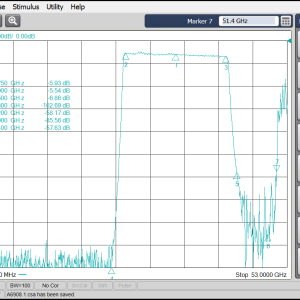

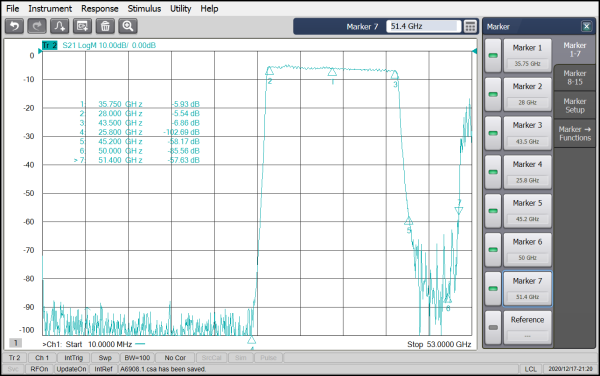

The product name of this Ocean band-pass filter (OBP) is OBP-35750-5500, it’s Center Frequency (FO) is 35.75GHz, it’s Pass Band Bandwidth is 28-43.5GHz, it’s Pass Band Insertion Loss is ≤0.9dB, Pass Band Return Loss is ≥17dB, Pass Band VSWR is, and the Stop Band frequency is ≥80dB@DC ~25.8GHz ≥40dB@25.8~27GHz522dB@44.5~45.2GHz≥40dB@45.2-51GHz.

Availability: Available on backorder SKU: OBP-35750-5500 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-35750-5500, it’s Center Frequency (FO) is 35.75GHz, it’s Pass Band Bandwidth is 28-43.5GHz, it’s Pass Band Insertion Loss is ≤0.9dB, Pass Band Return Loss is ≥17dB, Pass Band VSWR is, and the Stop Band frequency is ≥80dB@DC~25.8GHz ≥40dB@25.8~27GHz522dB@44.5~45.2GHz≥40dB@45.2-51GHz.

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

31000

Min. Pass Band Frequency (MHz)

29300

Max. Pass Band Frequency (MHz)

32700

Pass Band Insertion Loss (dB)

≤0.7

Stop Band Rejection

≥70dB@DC~26GHz≥55dB@36-48GHz.

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

2.92mm(K)-Female
