Bandpass Passive Microwave Filter 57.5GHz to 62.5GHz V Band Waveguide Bandpass Filter Rejection Frequency 67GHz to 80GHz

Bandpass Passive Microwave Filter 57.5GHz to 62.5GHz V Band Waveguide Bandpass Filter Rejection Frequency 67GHz to 80GHz

0 out of 5

Bandpass Passive Microwave Filter model OWBP-57506250-15 is V Band Waveguide Bandpass filter with a passband frequency from 57.5GHz to 62.5GHz and a rejection frequency 67GHz to 80GHz. Due to the waveguide cut off nature of Bandpass Passive Microwave filter, the low side of this RF filter has rejection range of DC to 55GHz. Our V Band Waveguide Bandpass Filter provides a nominal insertion loss of 2.0dB across its passband and a typical rejection of 25dB. Since the high end cutoff frequency of Bandpass Passive Microwave Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This V Band Waveguide Bandpass Filter has passband ripple of ±0.5dB and power handling of 100W. 57.5GHz to 62.5GHz Ocean Bandpass filter from RFecho is just one part in a large selection of our RF Components. Our 57.5GHz to 62.5GHz Bandpass Passive Microwave filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-57506250-15 Categories: Passive Devices, RF Filter Bandpass, RF Filters

Description

PDF

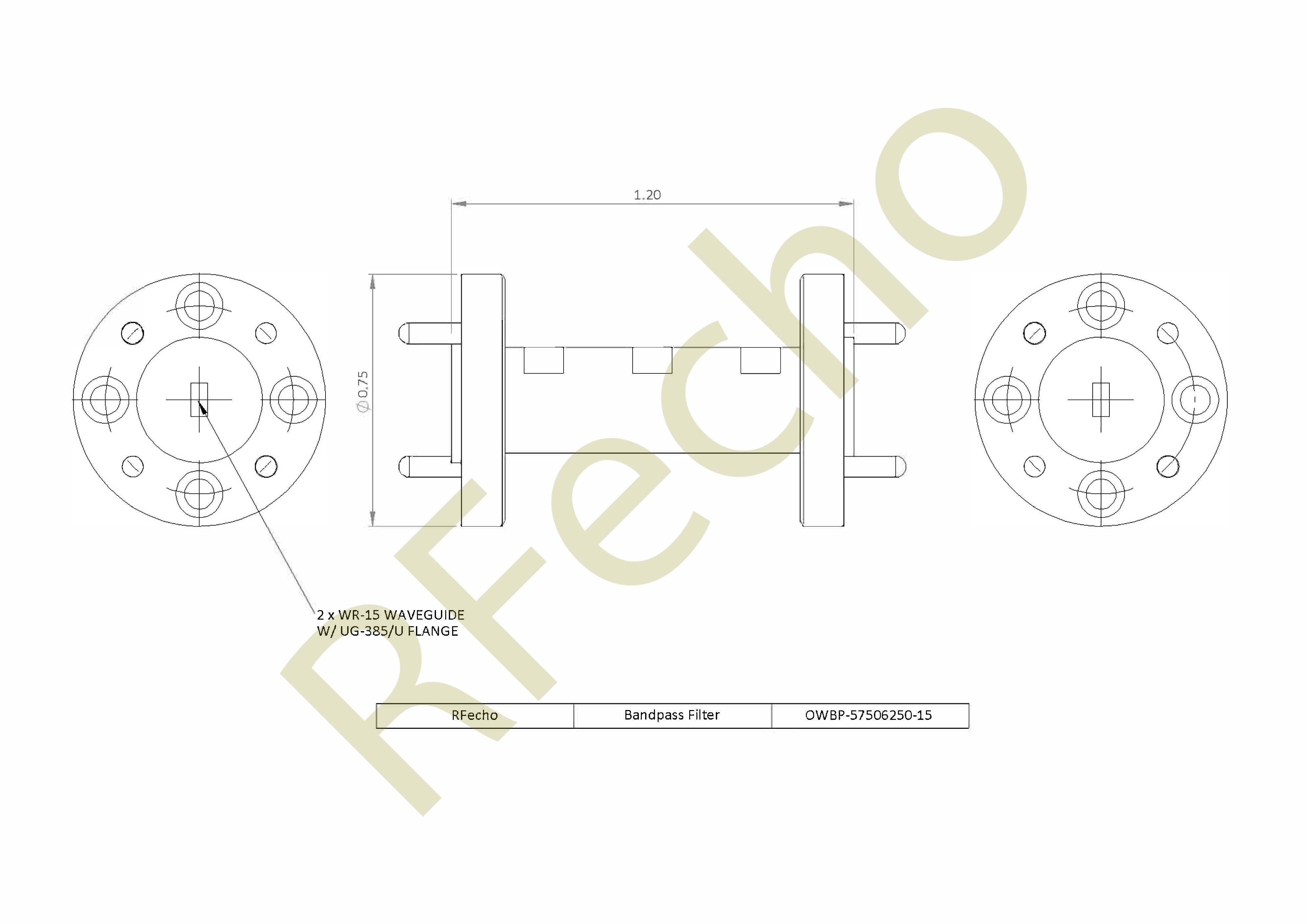

Outline

Bandpass Passive Microwave Filter 57.5GHz to 62.5GHz V Band Waveguide Bandpass Filter Rejection Frequency 67GHz to 80GHz

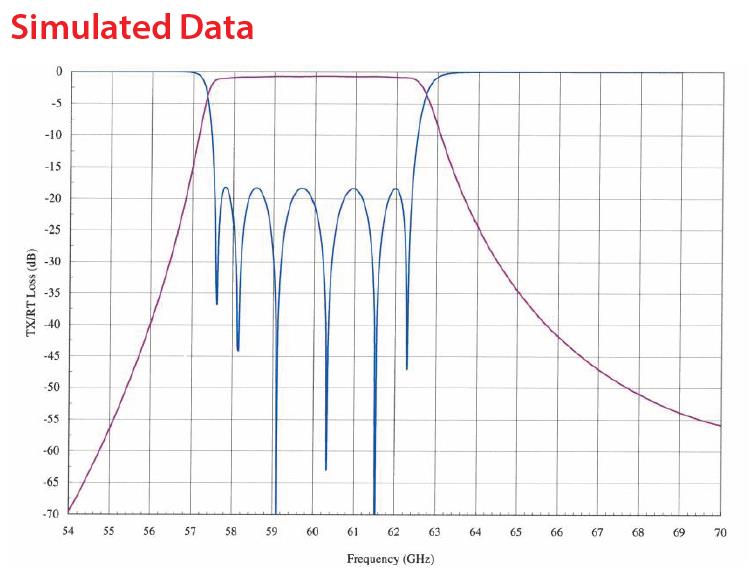

Plot

Bandpass Passive Microwave Filter 57.5GHz to 62.5GHz V Band Waveguide Bandpass Filter Rejection Frequency 67GHz to 80GHz

Additional information

Filter Type

RF Filter Bandpass

Min Pass Band Freq. (GHz)

57.5

Max Pass Band Freq. (GHz)

62.5

Insertion Loss (dB)

2

Rejection (dB)

25

Max Rejection Freq. Lowside

55

Min Rejection Freq. Highside

67

Waveguide Port

WR-15
