Waveguide Bandpass Passive Filter 58.6GHz to 63.4GHz Bandpass Microwave Passive Filter Rejection Frequency 68GHz to 80GHz

Waveguide Bandpass Passive Filter 58.6GHz to 63.4GHz Bandpass Microwave Passive Filter Rejection Frequency 68GHz to 80GHz

0 out of 5

Waveguide Bandpass Passive Filter model OWBP-58606340-15 is V Band Waveguide Bandpass filter with a passband frequency from 58.6GHz to 63.4GHz and a rejection frequency 68GHz to 80GHz. Due to the waveguide cut off nature of Waveguide Bandpass Passive filter, the low side of this RF filter has rejection range of DC to 56GHz. Our Bandpass Passive Filter provides a nominal insertion loss of 2.0dB across its passband and a typical rejection of 50dB. Since the high end cutoff frequency of Waveguide Bandpass Passive Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Bandpass Passive Filter has specification temperature of +25C. 58.6GHz to 63.4GHz Ocean Bandpass filter from RFecho is just one part in a large selection of our RF Components. Our 58.6GHz to 63.4GHz Waveguide Bandpass Passive filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-58606340-15 Categories: Passive Devices, RF Filter Bandpass, RF Filters

Description

PDF

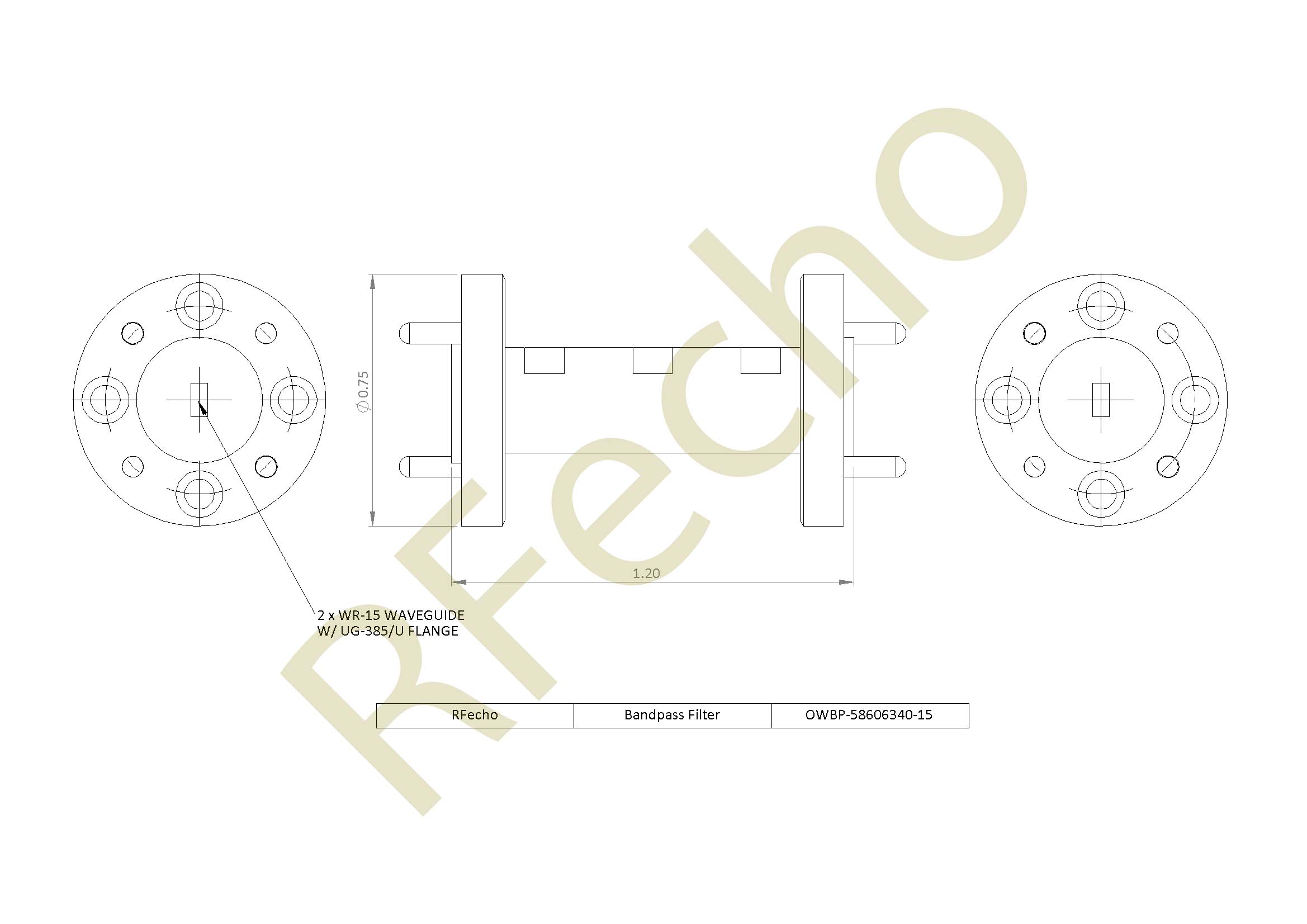

Outline

Waveguide Bandpass Passive Filter 58.6GHz to 63.4GHz Bandpass Microwave Passive Filter Rejection Frequency 68GHz to 80GHz

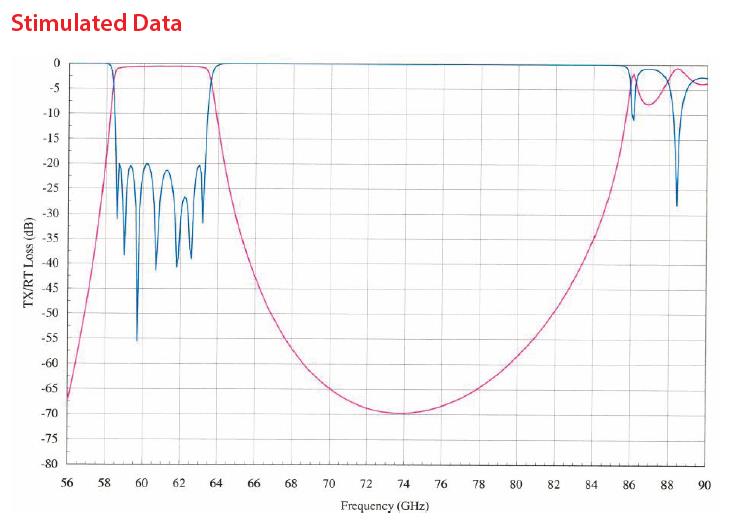

Plot

Waveguide Bandpass Passive Filter 58.6GHz to 63.4GHz Bandpass Microwave Passive Filter Rejection Frequency 68GHz to 80GHz

Additional information

Filter Type

RF Filter Bandpass

Min Pass Band Freq. (GHz)

58.6

Max Pass Band Freq. (GHz)

63.4

Insertion Loss (dB)

2

Rejection (dB)

50

Max Rejection Freq. Lowside

56

Min Rejection Freq. Highside

68

Waveguide Port

WR-15
