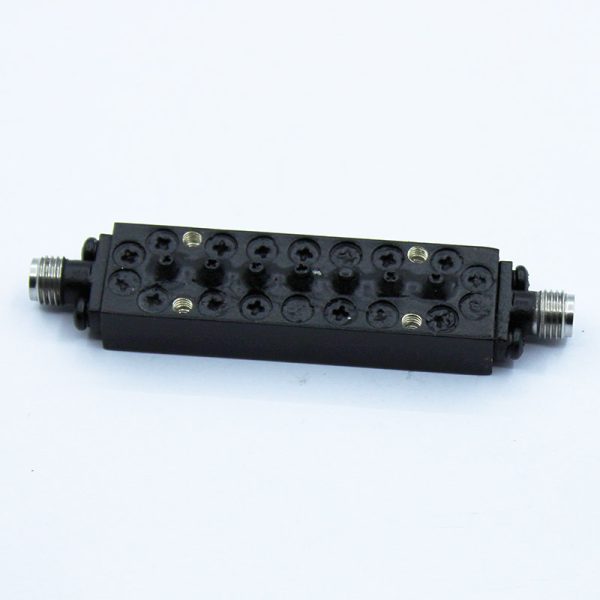

Band pass Filter From 1.0GHz(27~28GHz) OBP-275000-1000 With SMA-Female Connectors

Band pass Filter From 1.0GHz(27~28GHz) OBP-275000-1000 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-275000-1000,its Center Frequency(F0) is 27.5GHz , its Pass Band Bandwidth is1.0GHz(27~28GHz), its Pass Band Insertion Loss is ≤1.5dB, and its PassBandVSWRis≤1.5:1. Its Stop Band frequency is≥30dB @ DC~26GHz ≥30dB
@ 29~35GHz.

Availability: Available on backorder SKU: OBP-275000-1000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-275000-1000,its Center Frequency(F0) is 27.5GHz , its Pass Band Bandwidth is1.0GHz(27~28GHz), its Pass Band Insertion Loss is ≤1.5dB, and its PassBandVSWRis≤1.5:1. Its Stop Band frequency is≥30dB @ DC~26GHz ≥30dB
@ 29~35GHz.

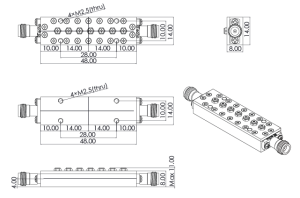

Outline

Band pass Filter From 1.0GHz(27~28GHz) OBP-275000-1000 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-275000-1000

Additional information

Center Frequency (F0) (MHz)

27500

Min. Pass Band Frequency (MHz)

27000

Max. Pass Band Frequency (MHz)

28000

Pass Band Insertion Loss (dB)

≤1.5

Impedance (Ω)

50

Power Handling (W)

≤5

Connection Type

2.92mm(K)-Female
