Band Pass Filter From 1000MHz (20.2~21.2GHz) OBP-20700-1000 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

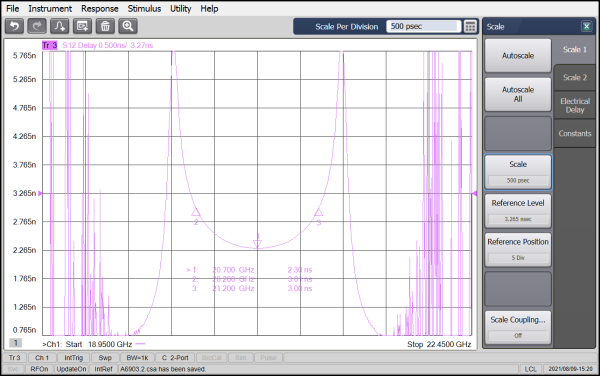

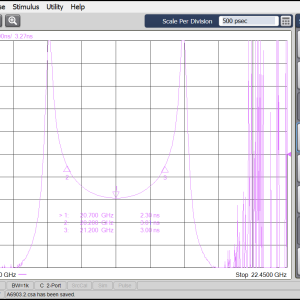

The product name of this Ocean band-pass filter (OBP) is OBP-20700-1000 ,its Center Frequency(F0) is 20.7GHz, its Pass Band Bandwidth is 1000MHz (20.2~21.2GHz) ,it’s Pass Band Insertion Loss is ≤1.0dB@20.7GHz≤1.3dB@ 20.2~21.2GHz, PassBand VSWR is≤1.22:1 ,and the Stop Band frequency is ≤1.0ns @peak-peak in the range of20.2~21.2GHz.

Availability: Available on backorder SKU: OBP-20700-1000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-20700-1000 ,its Center Frequency(F0) is 20.7GHz, its Pass Band Bandwidth is 1000MHz (20.2~21.2GHz) ,it’s Pass Band Insertion Loss is ≤1.0dB@20.7GHz≤1.3dB@ 20.2~21.2GHz, PassBand VSWR is≤1.22:1 ,and the Stop Band frequency is ≤1.0ns @peak-peak in the range of20.2~21.2GHz.

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

20700

Min. Pass Band Frequency (MHz)

20200

Max. Pass Band Frequency (MHz)

21200

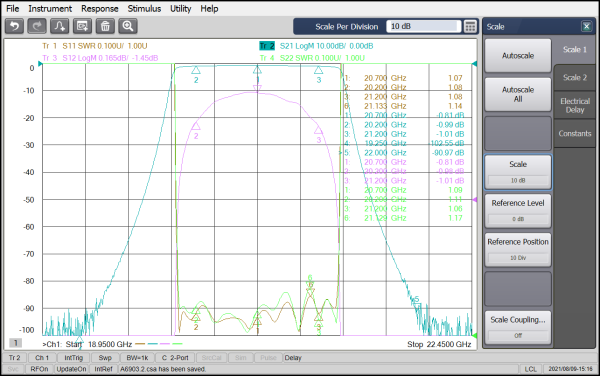

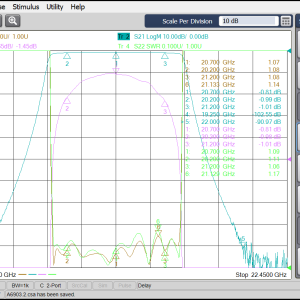

Pass Band Insertion Loss (dB)

≤1.0dB @ 20.7GHz ≤1.3dB @ 20.2 ~ 21.2GHz

Stop Band Rejection

≥90dB @ 0.1 ~ 19.25GHz ≥80dB @ 22 ~ 40GHz

Impedance (Ω)

50

Power Handling (W)

5W Max

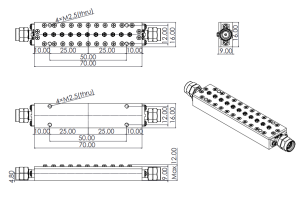

Connection Type

SMA-Female
