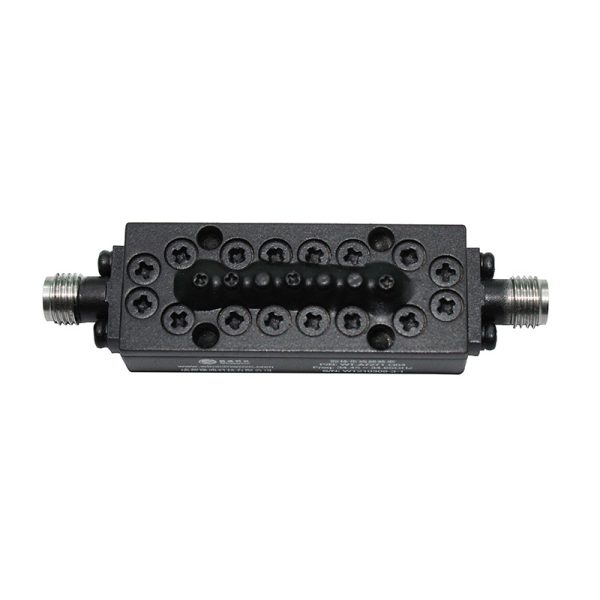

Band Pass Filter From 100MHz(34.5~34.6GHz) OBP-34550-100 With 2.92mm(K)-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-34550-100, it’s Center Frequency (FO) is 34.55GHz, it’s Pass Band Bandwidth is 100MHz(34.5~34.6GHz), it’s Pass Band Insertion Loss is<3.0dB, Pass Band Return Loss is >18dB, Pass Band VSWR is, and the Stop Band frequency is >45dB@33.5GHz >45dB@41.5GHz >70dB@32.5GHz>70dB@42.5GHz.

Availability: Available on backorder SKU: OBP-34550-100 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-34550-100, it’s Center Frequency (FO) is 34.55GHz, it’s Pass Band Bandwidth is 100MHz(34.5~34.6GHz), it’s Pass Band Insertion Loss is<3.0dB, Pass Band Return Loss is >18dB, Pass Band VSWR is, and the Stop Band frequency is >45dB@33.5GHz >45dB@41.5GHz >70dB@32.5GHz>70dB@42.5GHz.

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

34550

Min. Pass Band Frequency (MHz)

34500

Max. Pass Band Frequency (MHz)

34600

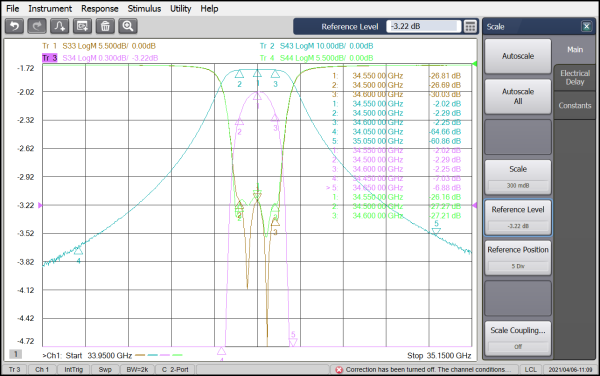

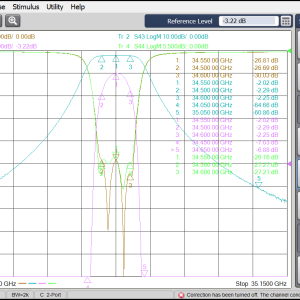

Pass Band Insertion Loss (dB)

≤3.0

Stop Band Rejection

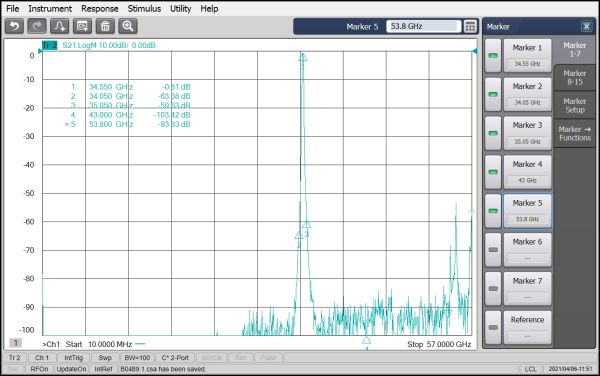

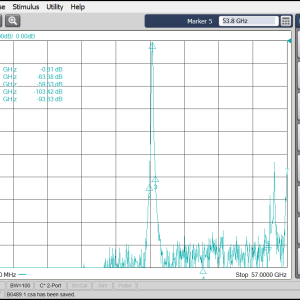

>50dB@F0±500MHz(DC-34.05GHz,35.05-52GHz)

Impedance (Ω)

50

Power Handling (W)

10W Max.

Connection Type

2.92mm(K)-Female
