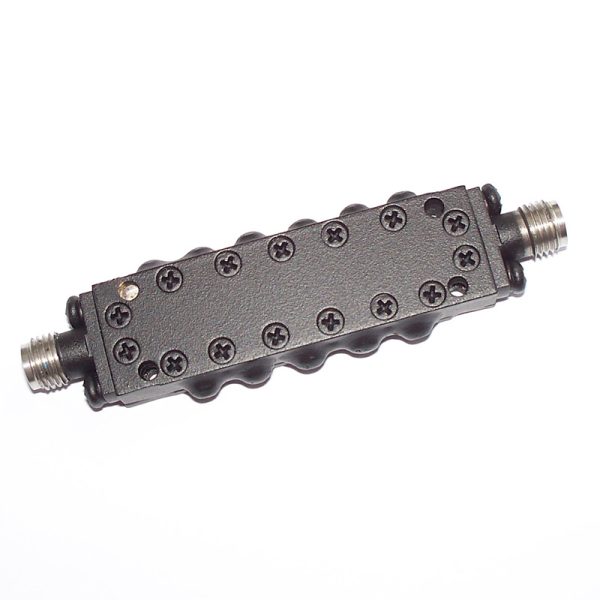

Band Pass Filter From 17.2~23.76GHz OBP-20480-6560 With SMA-Female Connectors

$398

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

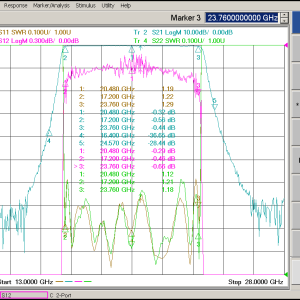

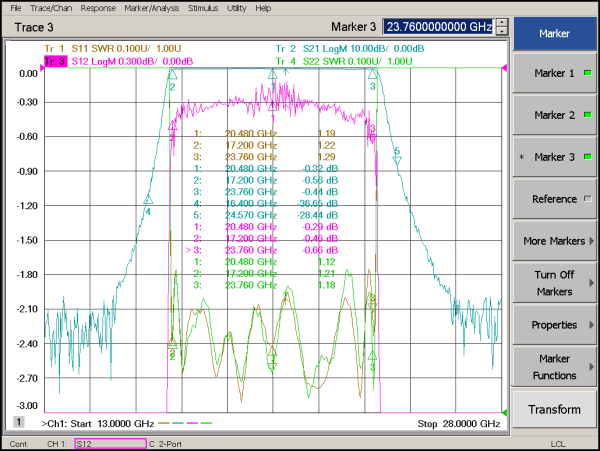

The product name of this Ocean band-pass filter (OBP) is OBP-20480-6560, its Center Frequency(F0) is 20.48GHz, its Pass Band Bandwidth is 17.2~23.76GHz,its Pass Band Insertion Loss is ≤1.2dB, Pass Band VSWR is ≤1.8:1 and the Stop Band frequency is ≥10dB@ DC~16.4GHz≥10dB @24.57~30GHz.

Availability: Available on backorder SKU: OBP-20480-6560 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-20480-6560, its Center Frequency(F0) is 20.48GHz, its Pass Band Bandwidth is 17.2~23.76GHz,its Pass Band Insertion Loss is ≤1.2dB, Pass Band VSWR is ≤1.8:1 and the Stop Band frequency is ≥10dB@ DC~16.4GHz≥10dB @24.57~30GHz.

Band Pass Filter Datasheet (Click to download)

Additional information

Weight 0.5 kg

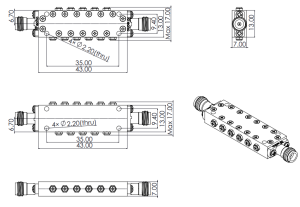

Dimensions 26 × 11.5 × 14.5 cm
Center Frequency (F0) (MHz)

20480

Min. Pass Band Frequency (MHz)

17200

Max. Pass Band Frequency (MHz)

23760

Pass Band Insertion Loss (dB)

≤1.2dB

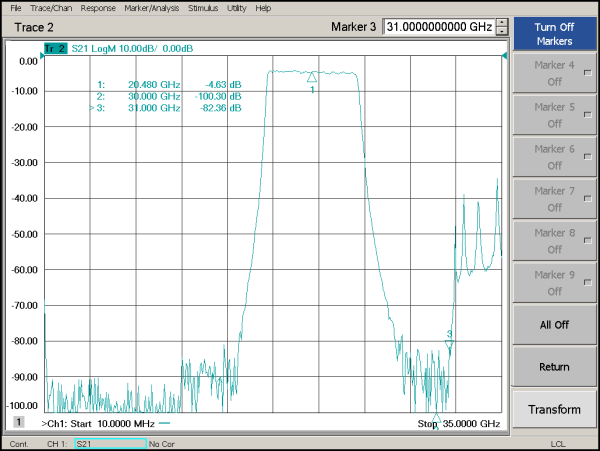

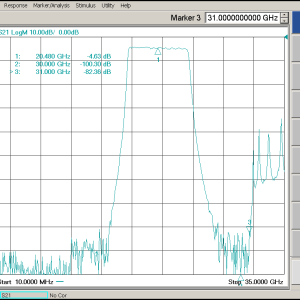

Stop Band Rejection

≥10dB @ DC~16.4GHz ≥10dB @ 24.57~30GHz

Impedance (Ω)

50

Power Handling (W)

≤2W

Connection Type

SMA-Female
