Band pass Filter From 17.384~23.576GHz OBP-20480-6192 With SMA-Female Connectors

Band pass Filter From 17.384~23.576GHz OBP-20480-6192 With SMA-Female Connectors

0 out of 5

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.The product name of this Ocean band-pass filter (OBP) is OBP-20480-6192,its Center Frequency(F0) is 20.48GHz, its Pass Band Bandwidth is 17.384~23.576GHz its Pass Band Insertion Loss is≤1.5dB, and its PassBand VSWR ≤1.7:1is. Its Stop Band frequency is≥30dB @ DC~16.5GHz≥30dB @ 24.46~28GHz

SKU: OBP-20480-6192 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

SPEC

Cavity bandpass filter

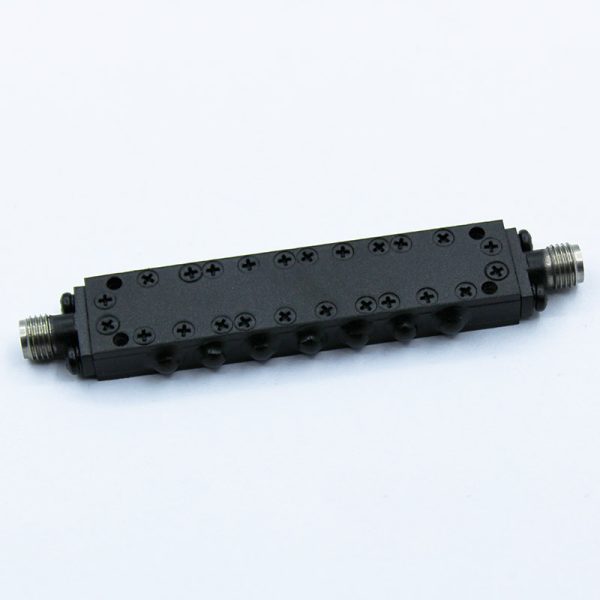

Band pass Filter From 17.384~23.576GHz OBP-20480-6192 With SMA-Female Connectors

OBP-20480-6192

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.The product name of this Ocean band-pass filter (OBP) is OBP-20480-6192,its Center Frequency(F0) is 20.48GHz, its Pass Band Bandwidth is 17.384~23.576GHz its Pass Band Insertion Loss is≤1.5dB, and its PassBand VSWR ≤1.7:1is. Its Stop Band frequency is≥30dB @ DC~16.5GHz≥30dB @ 24.46~28GHz

Property

Value

Center Frequency (F0) (MHz)

20480

Min. Pass Band Frequency (MHz)

17384

Max. Pass Band Frequency (MHz)

23576

Pass Band Insertion Loss (dB)

≤1.5

Stop Band Rejection

≥30dB @ DC~16500MHz≥30dB @ 24460~28000MHz

Impedance (Ω)

50

Power Handling (W)

≤2

Connection Type

SMA-Female

Data Sheet

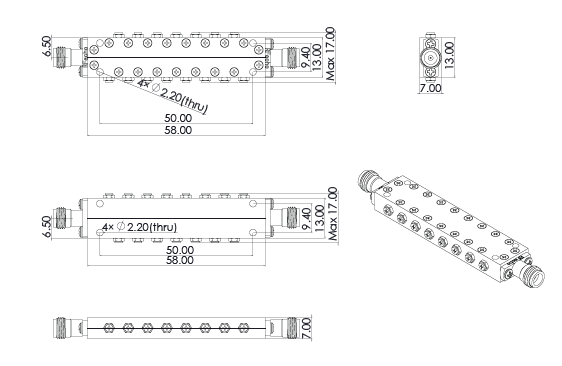

Outline

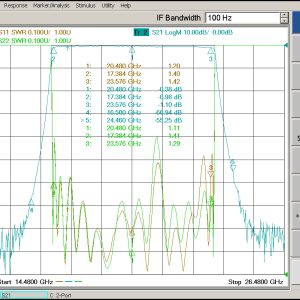

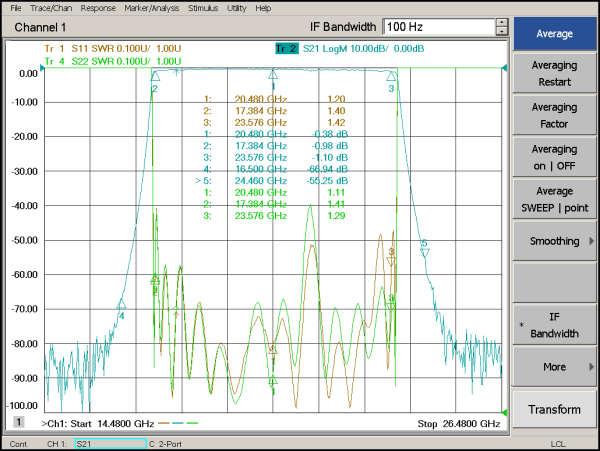

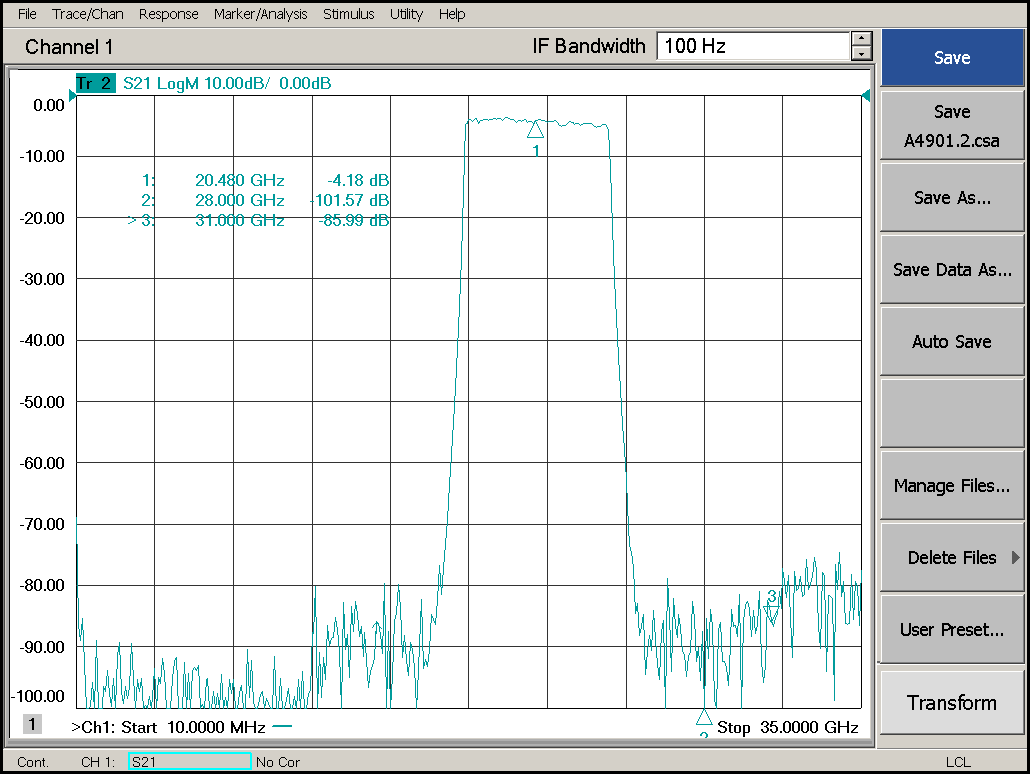

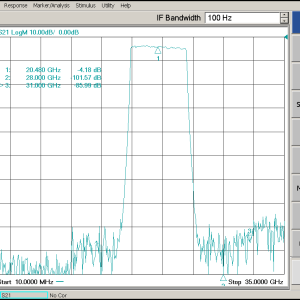

Plot

Additional information

Min. Pass Band Frequency (MHz)

17384

Max. Pass Band Frequency (MHz)

23576

Pass Band Insertion Loss (dB)

≤1.5

1

≥30dB @ DC~16500MHz≥30dB @ 24460~28000MHz

Impedance (Ω)

50

Power Handling (W)

≤2

Connection Type

SMA-Female
