Band Pass Filter From 17.5~26.5GHz OBP-22000-9000 With 2.92mm(K)-Female Connectors

$398

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-22000-9000, its Center Frequency(F0) is 22GHz, its Pass Band Bandwidth is 17.5~26.5GHz ,its Pass Band Insertion Loss is ≤1.0dB, Pass Band VSWR is ,and the Stop Band frequency is ≥80dB @DC~15700MHz≥75dB @15700~16000MHz ≥70dB @28000~28300MHz≥80dB @28300~36500MHz.

Availability: Available on backorder SKU: OBP-22000-9000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

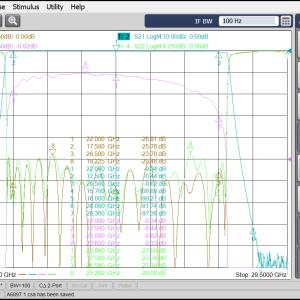

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-22000-9000, its Center Frequency(F0) is 22GHz, its Pass Band Bandwidth is 17.5~26.5GHz ,its Pass Band Insertion Loss is ≤1.0dB, Pass Band VSWR is ,and the Stop Band frequency is ≥80dB @DC~15700MHz≥75dB @15700~16000MHz ≥70dB @28000~28300MHz≥80dB @28300~36500MHz.

Band Pass Filter Datasheet (Click to download)

Additional information

Weight 0.5 kg
Dimensions 26 × 11.5 × 14.5 cm
Center Frequency (F0) (MHz)

22000

Min. Pass Band Frequency (MHz)

17500

Max. Pass Band Frequency (MHz)

26500

Pass Band Insertion Loss (dB)

≤1.0dB ≤0.4dB ≥17dB

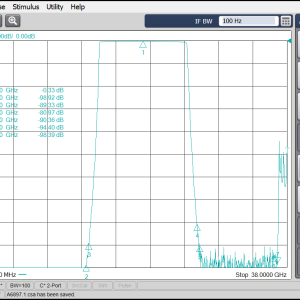

Stop Band Rejection

≥80dB @ DC ~ 15700MHz ≥75dB @ 15700 ~ 16000MHz ≥70dB @ 28000 ~ 28300MHz ≥80dB @ 28300 ~ 36500MHz

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

2.92mm(K)-Female
