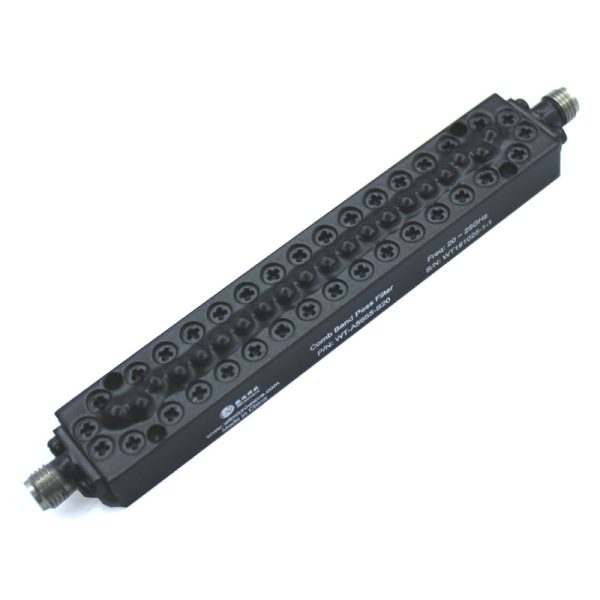

Band Pass Filter From 20~25GHz OBP-22500-5000 With 2.92mm(K)-Female Connectors

$398

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-22500-5000, its Center Frequency(F0) is 22.5GHz, its Pass Band Bandwidth is 20~25GHz ,its Pass Band Insertion Loss is ≤1.7dB, Pass Band VSWRis, and the Stop Band frequency is ≥80dB @DC~19GHz ≥80dB @26~38GHz.

Availability: Available on backorder SKU: OBP-22500-5000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-22500-5000, its Center Frequency(F0) is 22.5GHz, its Pass Band Bandwidth is 20~25GHz ,its Pass Band Insertion Loss is ≤1.7dB, Pass Band VSWRis, and the Stop Band frequency is ≥80dB @DC~19GHz ≥80dB @26~38GHz.

Band Pass Filter Datasheet (Click to download)

Additional information

Weight 0.5 kg

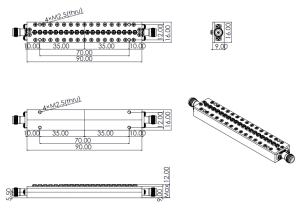

Dimensions 26 × 11.5 × 14.5 cm
Center Frequency (F0) (MHz)

22500

Min. Pass Band Frequency (MHz)

20000

Max. Pass Band Frequency (MHz)

25000

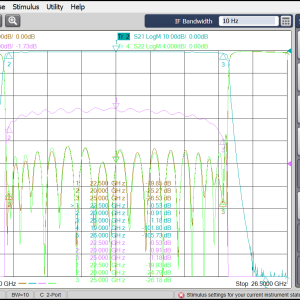

Pass Band Insertion Loss (dB)

≤1.7dB ≤1.0dB ≥15dB

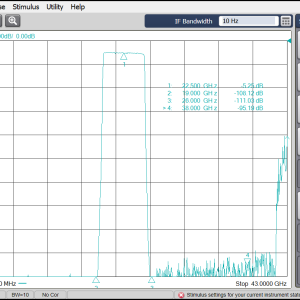

Stop Band Rejection

≥80dB @ DC ~ 19GHz ≥80dB @ 26 ~ 38GHz

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

2.92mm(K)-Female
