Band Pass Filter From 23.1~27GHz OBP-25050-3900 With 2.92mm-Female Connectors

Band Pass Filter From 23.1~27GHz OBP-25050-3900 With 2.92mm-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-25050-3900 ,it’s Center Frequency(F0) is 25.05GHz, it’s Pass Band Bandwidth is 23.1~27GHz ,it’s Pass Band Insertion Loss is ≤2.0dB, Pass Band Return Loss is,Pass Band VSWR is ≤1.8:1, and the Stop Band frequency is ≥45dB@22.05GHz≥45dB @28.05GHz ≥70dB @21.25GHz≥70dB @28.85GHz.

Availability: Available on backorder SKU: OBP-25050-3900 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-25050-3900 ,it’s Center Frequency(F0) is 25.05GHz, it’s Pass Band Bandwidth is 23.1~27GHz ,it’s Pass Band Insertion Loss is ≤2.0dB, Pass Band Return Loss is,Pass Band VSWR is ≤1.8:1, and the Stop Band frequency is ≥45dB@22.05GHz≥45dB @28.05GHz ≥70dB @21.25GHz≥70dB @28.85GHz.

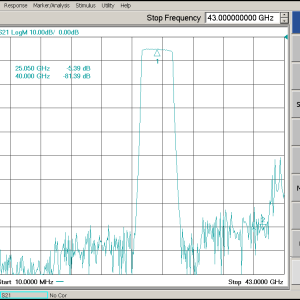

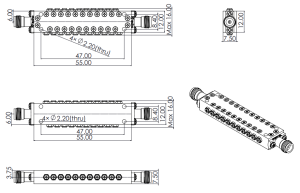

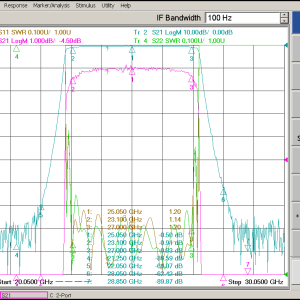

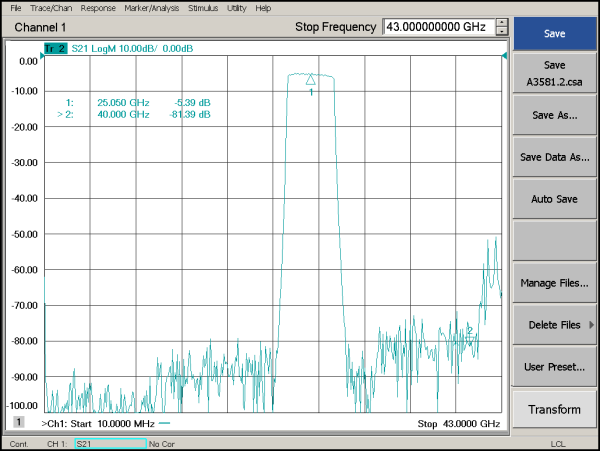

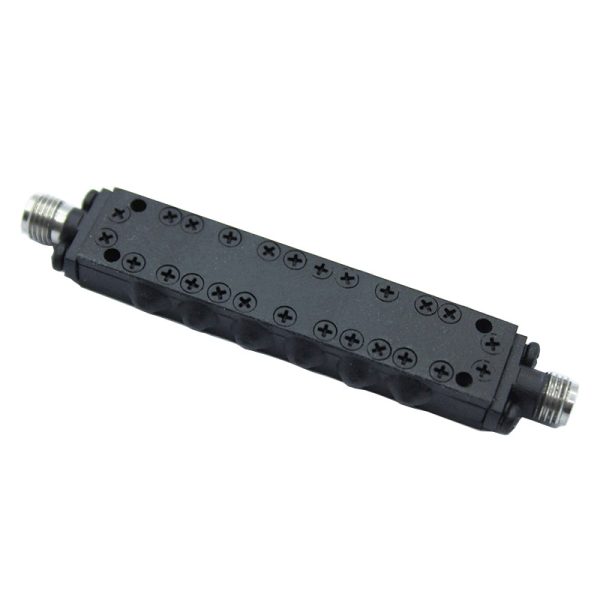

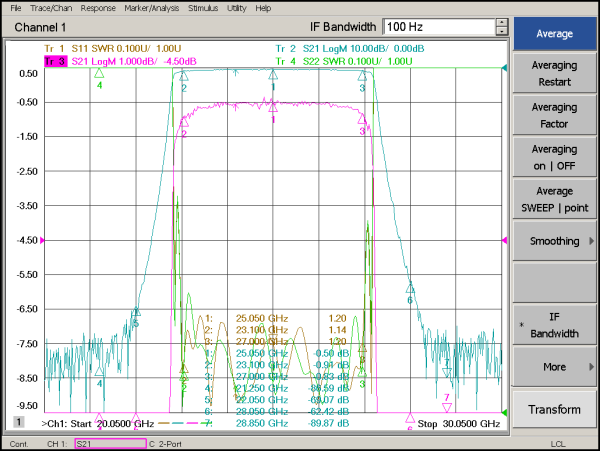

Outline

Band Pass Filter From  23.1~27GHz OBP-25050-3900 With 2.92mm-Female Connectors

PDF

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

25050

Min. Pass Band Frequency (MHz)

23100

Max. Pass Band Frequency (MHz)

27000

Pass Band Insertion Loss (dB)

≤2.0dB

Stop Band Rejection

≥45dB @ 22.05GHz ≥45dB @ 28.05GHz ≥70dB @ 21.25GHz ≥70dB @ 28.85GHz

Impedance (Ω)

50

Power Handling (W)

≤10W

Connection Type

2.92mm-Female
