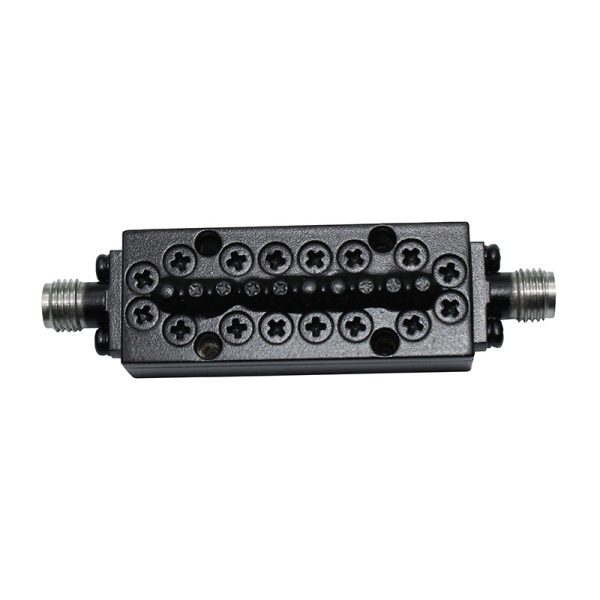

Band pass Filter From 26.99 ~30.01GHz OBP-285000-3020 With SMA-Female Connectors

Band pass Filter From 26.99 ~30.01GHz OBP-285000-3020 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-285000-3020,its Center Frequency(F0) is 28.5GHz , its Pass Band Bandwidth is 26.99 ~30.01GHz , its Pass Band Insertion Loss is≤1.0dB, and its PassBandVSWRis≤1.28:1 . Its Stop Band frequency is≥40dB @ DC ~ 26GHz≥40dB @ 31~ 52GHz.



Availability: Available on backorder SKU: OBP-285000-3020 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-285000-3020,its Center Frequency(F0) is 28.5GHz , its Pass Band Bandwidth is 26.99 ~30.01GHz , its Pass Band Insertion Loss is≤1.0dB, and its PassBandVSWRis≤1.28:1 . Its Stop Band frequency is≥40dB @ DC ~ 26GHz≥40dB @ 31~ 52GHz.

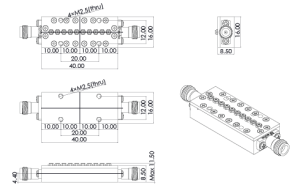

Outline

Band pass Filter From 26.99 ~30.01GHz OBP-285000-3020 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-285000-3020

Additional information

Center Frequency (F0) (MHz)

28500

Min. Pass Band Frequency (MHz)

26990

Max. Pass Band Frequency (MHz)

30010

Pass Band Insertion Loss (dB)

≤1.0 ≤0.4

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

2.92mm(K)-Female
