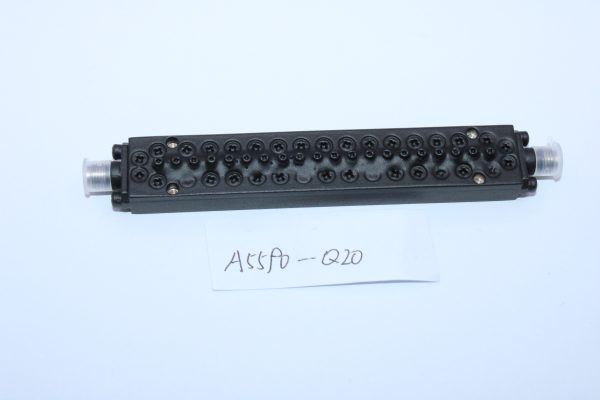

Band pass Filter From 37.7 ~43.5GHz OBP-40600-5800 With SMA-Female Connectors

Band pass Filter From 37.7 ~43.5GHz OBP-40600-5800 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-25875-3250,its Center Frequency(F0) is 25.875GHz, its Pass Band Bandwidth is 24.25~ 27.5GHz its Pass Band Insertion Loss is≤2.2dB, and its PassBand VSWR is. Its Stop Band frequency is≥60dB @ F0±2GHz (DC ~23.875GHz , 27.875 ~ 47.5GHz)

Availability: Available on backorder SKU: OBP-40600-5800 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-40600-5800,its Center Frequency(F0) is 40.6GHz, its Pass Band Bandwidth is 37.7 ~43.5GHz its Pass Band Insertion Loss is ≤2.6dB≥17dB, and itsPassBandVSWR is. Its Stop Band frequency is≥80dB @ F0±4000MHz (DC ~36600MHz , 44600 ~ 59000MHz)

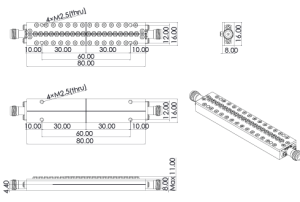

Outline

Band pass Filter From 37.7 ~43.5GHz OBP-40600-5800 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-40600-5800-1

Additional information

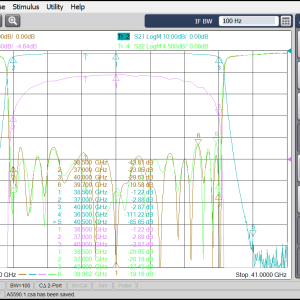

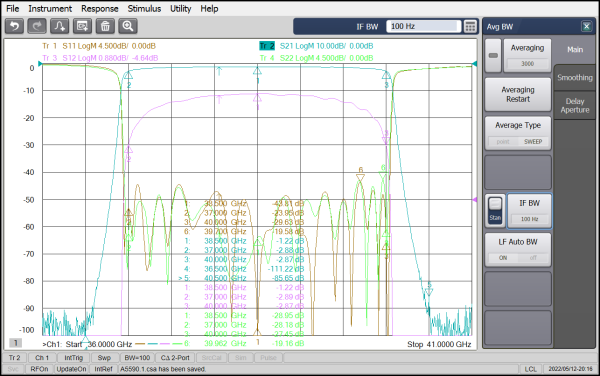

Center Frequency (F0) (MHz)

40600

Min. Pass Band Frequency (MHz)

37700

Max. Pass Band Frequency (MHz)

43500

Pass Band Insertion Loss (dB)

≤2.6 ≥17

Stop Band Rejection

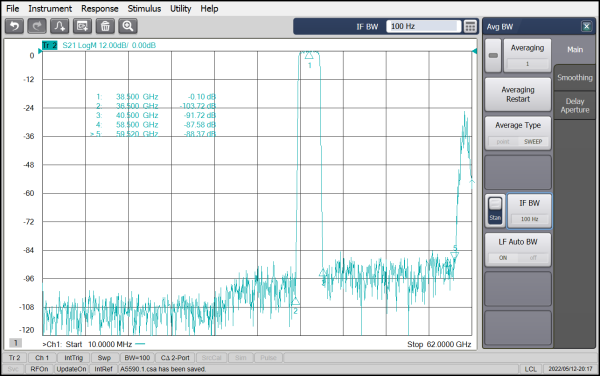

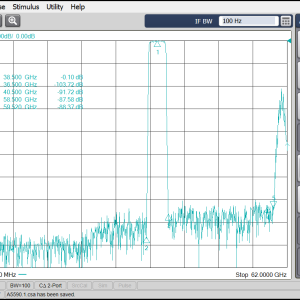

≥80dB @ F0±4000MHz (DC ~ 36600MHz , 44600 ~ 59000MHz)

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

2.92mm(K)-Female
