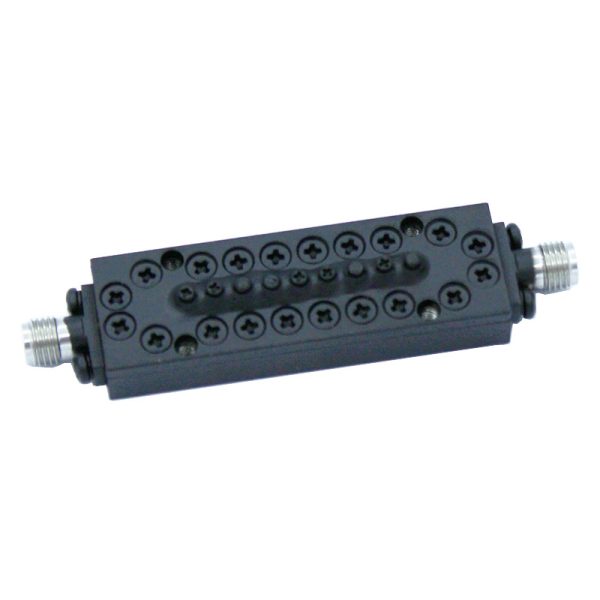

Band pass Filter From 40MHz(31680~31720MHz) OBP-38500-3000-1 With SMA-Female Connectors

Band pass Filter From 40MHz(31680~31720MHz) OBP-38500-3000-1 With SMA-Female Connectors

0 out of 5

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.The product name of this Ocean band-pass filter (OBP) is OBP-38500-3000,its Center Frequency(F0) is 38.5GHz, its Pass Band Bandwidth is 37 ~40GHzits Pass Band Insertion Loss is≤4.0dB≥17dB, and its PassBandVSWR is. Its Stop Band frequency is≥80dB @ F0±2000MHz (DC ~36500MHz , 40500 ~ 58500MHz)

SKU: OBP-38500-3000-1 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

SPEC

Cavity bandpass filter

Band pass Filter From 40MHz(31680~31720MHz) OBP-38500-3000-1 With SMA-Female Connectors

OBP-38500-3000-1

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.The product name of this Ocean band-pass filter (OBP) is OBP-38500-3000,its Center Frequency(F0) is 38.5GHz, its Pass Band Bandwidth is 37 ~40GHzits Pass Band Insertion Loss is≤4.0dB≥17dB, and its PassBandVSWR is. Its Stop Band frequency is≥80dB @ F0±2000MHz (DC ~36500MHz , 40500 ~ 58500MHz)

Property

Value

Center Frequency (F0) (MHz)

31700

Min. Pass Band Frequency (MHz)

31680

Max. Pass Band Frequency (MHz)

31720

Pass Band Insertion Loss (dB)

≤5.0 ≥15

Stop Band Rejection

≥20dB @ 0~31600MHz≥20dB @ 31800~41000MHz

Impedance (Ω)

50

Power Handling (W)

≤5

Connection Type

2.92mm(K)-Female

Data Sheet

Outline

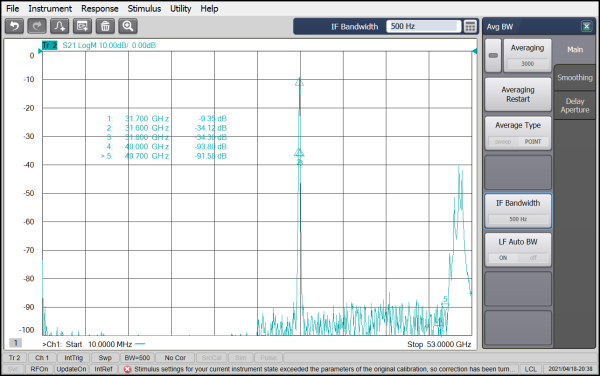

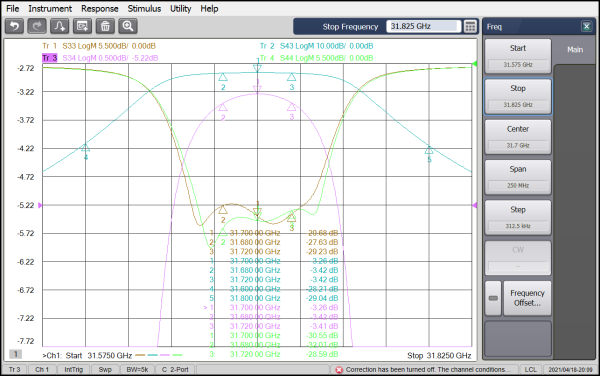

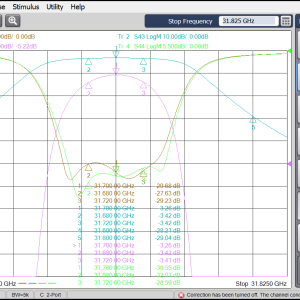

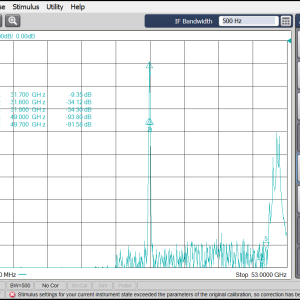

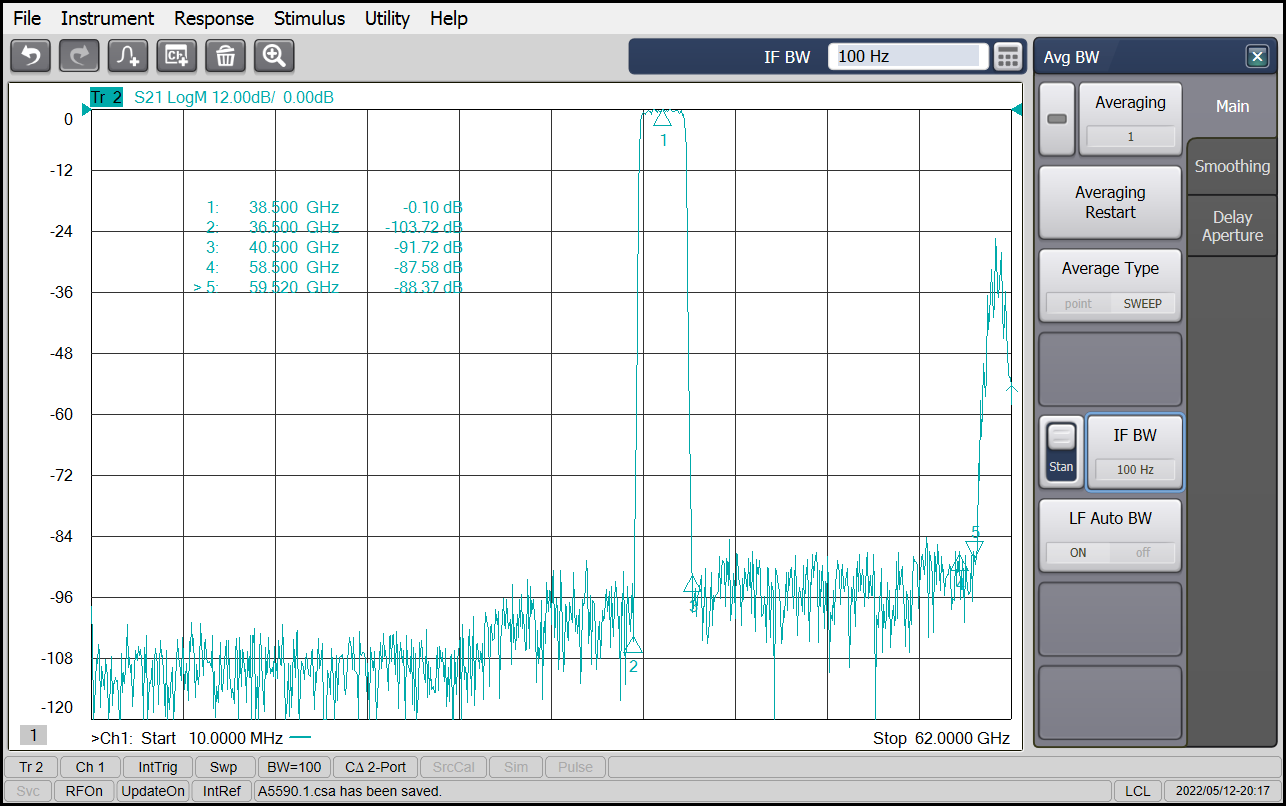

Plot

Additional information

Min. Pass Band Frequency (MHz)

31680

Max. Pass Band Frequency (MHz)

31720

Pass Band Insertion Loss (dB)

≤5.0 ≥15

1

≥20dB @ 0~31600MHz≥20dB @ 31800~41000MHz

Impedance (Ω)

50

Power Handling (W)

≤5

Connection Type

2.92mm(K)-Female
