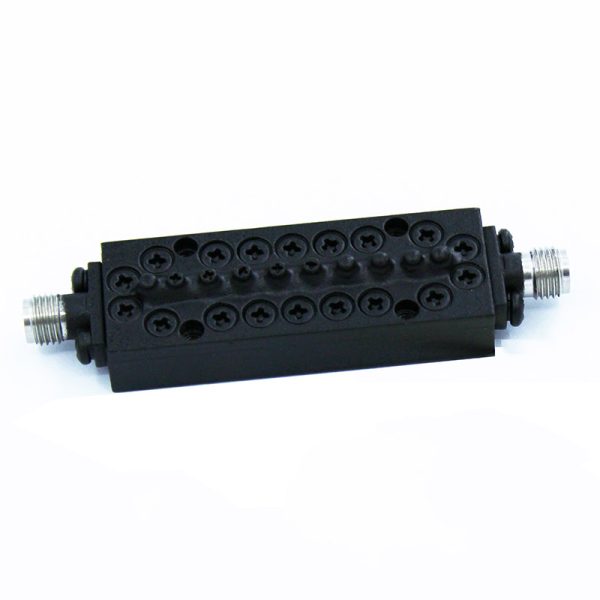

Band pass Filter From 5.25GHz (24.25~29.5GHz) OBP-268750-5250 With SMA-Female Connectors

Band pass Filter From 5.25GHz (24.25~29.5GHz) OBP-268750-5250 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-268750-5250,its Center Frequency(F0) is 26.875GHz, its Pass Band Bandwidthis5.25GHz (24.25~29.5GHz)its Pass Band Insertion Loss is≤1.0dB, and itsPassBandVSWR is≤1.3:1. Its Stop Band frequency is≥30dB@22.75GHz≥30dB@31GHz

Availability: Available on backorder SKU: OBP-268750-5250 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-268750-5250,its Center Frequency(F0) is 26.875GHz, its Pass Band Bandwidthis5.25GHz (24.25~29.5GHz)its Pass Band Insertion Loss is≤1.0dB, and itsPassBandVSWR is≤1.3:1. Its Stop Band frequency is≥30dB@22.75GHz≥30dB@31GHz

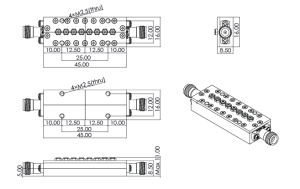

Outline

Band pass Filter From 5.25GHz (24.25~29.5GHz) OBP-268750-5250 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-268750-5250

Additional information

Center Frequency (F0) (MHz)

26875

Min. Pass Band Frequency (MHz)

24250

Max. Pass Band Frequency (MHz)

29500

Pass Band Insertion Loss (dB)

≤1.0

Impedance (Ω)

50

Power Handling (W)

≤10

Connection Type

2.92mm(K)-Female
