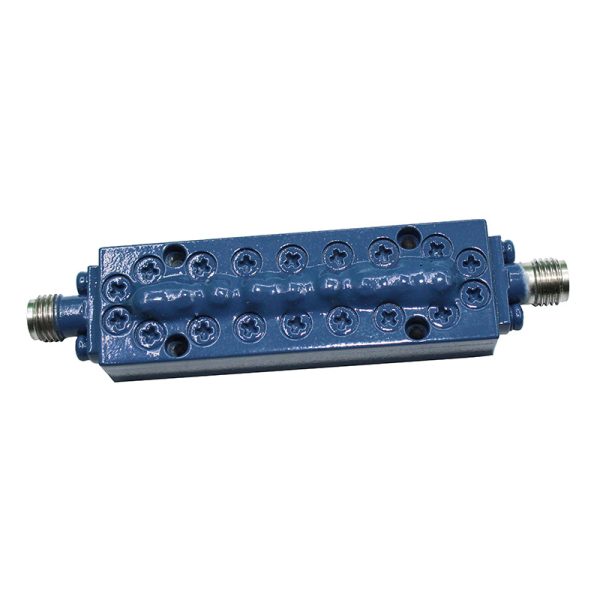

Band pass Filter From 5.25GHz(24.25~29.5GHz) OBP-260000-2000 With SMA-Female Connectors

Band pass Filter From 5.25GHz(24.25~29.5GHz) OBP-260000-2000 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

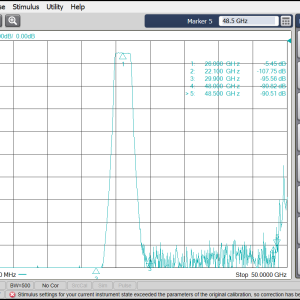

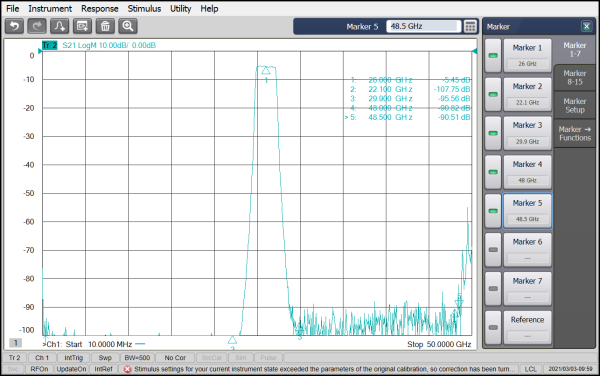

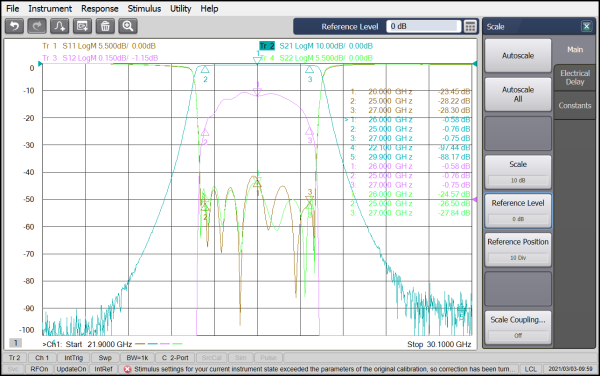

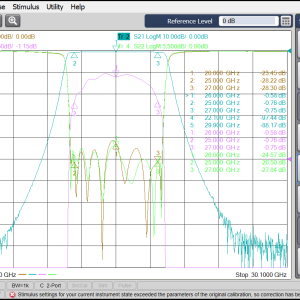

The product name of this Ocean band-pass filter (OBP) is OBP-260000-2000,its Center Frequency(F0) is 26GHz, its Pass Band Bandwidthis5.25GHz(24.25~29.5GHz)its Pass Band Insertion Loss is≤1.0dB, and itsPassBandVSWR is≤1.3:1. Its Stop Band frequency is≥80dB @DC~22.1GHz≥80dB@29.9~48GHz

Availability: Available on backorder SKU: OBP-260000-2000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-260000-2000,its Center Frequency(F0) is 26GHz, its Pass Band Bandwidthis5.25GHz(24.25~29.5GHz)its Pass Band Insertion Loss is≤1.0dB, and itsPassBandVSWR is≤1.3:1. Its Stop Band frequency is≥80dB @DC~22.1GHz≥80dB@29.9~48GHz

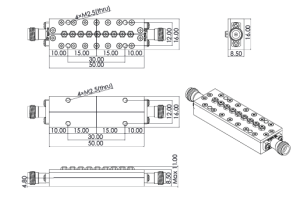

Outline

Band pass Filter From 5.25GHz(24.25~29.5GHz) OBP-260000-2000 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-260000-2000

Additional information

Center Frequency (F0) (MHz)

26000

Min. Pass Band Frequency (MHz)

24000

Max. Pass Band Frequency (MHz)

27000

Pass Band Insertion Loss (dB)

≤1.0

Impedance (Ω)

50

Power Handling (W)

5.0

Connection Type

2.92mm(K)-Female

Reviews

There are no reviews yet.
