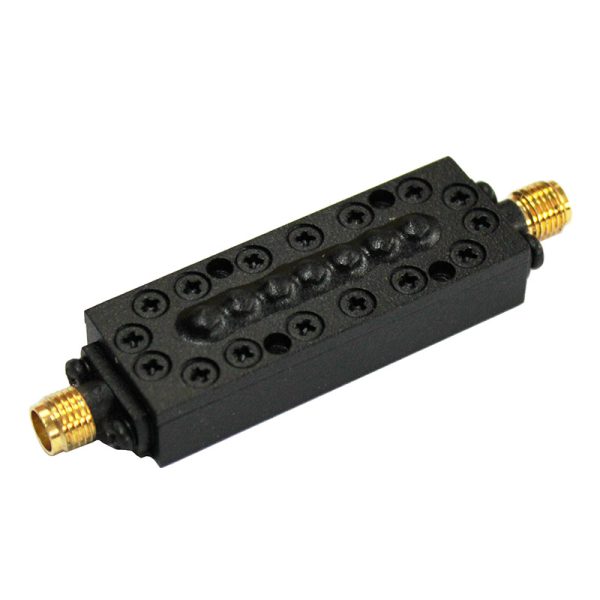

Band Pass Filter From 50MHz (19.975~20.025GHz) OBP-20000-50000 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-20000-10000,its Center Frequency(F0) is 20GHz, its Pass Band Bandwidth is15~25GHz, its Pass Band Insertion Loss is ≤0.7dB, and the Stop Band frequency is ≥80dB @DC~11.9GHz≥40dB @11.9~13.5GHz ≥40dB @26.6~28.2GHz≥80dB @28.2~34GHz.

Availability: Available on backorder SKU: OBP-20000-50000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

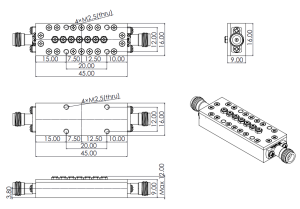

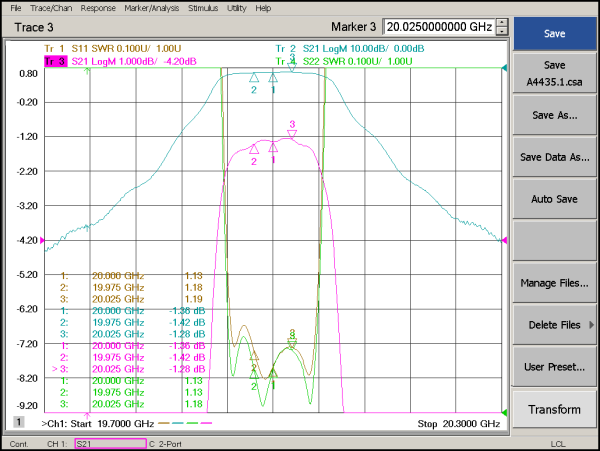

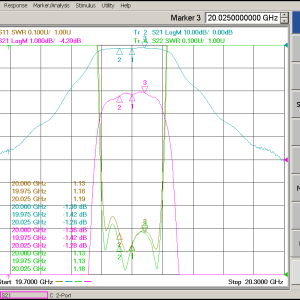

The product name of this Ocean band-pass filter (OBP) is OBP-20000-50000,its Center Frequency(F0) is 20GHz, its Pass Band Bandwidth is 50MHz (19.975~20.025GHz) ,its Pass Band Insertion Loss is ≤2.0dB, Pass Band VSWR is ≤1.3:1, and the Stop Band frequency is ≥30dB@F0±500MHz (DC~19.5GHz、20.5~25GHz).

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

20000

Min. Pass Band Frequency (MHz)

19975

Max. Pass Band Frequency (MHz)

20025

Pass Band Insertion Loss (dB)

≤2.0dB

Stop Band Rejection

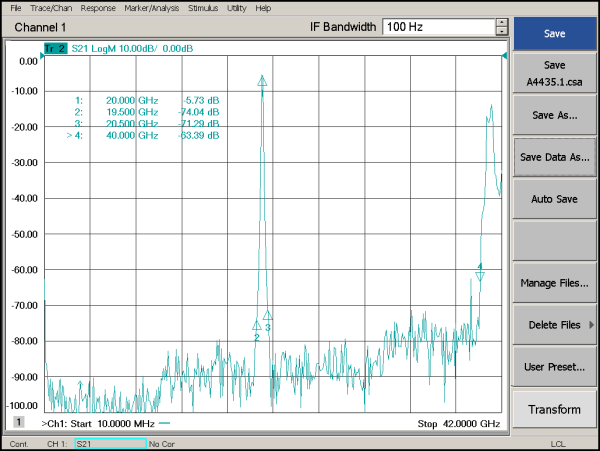

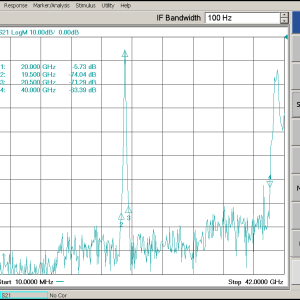

≥30dB @ F0±500MHz (DC~19.5GHz、20.5~25GHz)

Impedance (Ω)

50

Power Handling (W)

≤5W

Connection Type

SMA-Female
