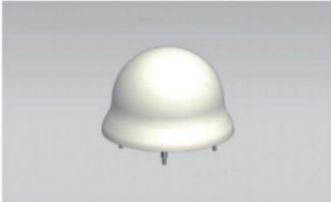

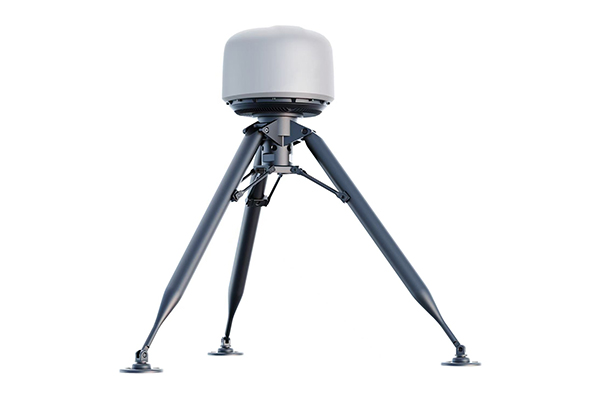

Base Station Type UAV Spoofing Defense System
24/7 all-weather protection for fixed defense areas
Omni-directional defense against multiple drones
Controllable defense range and boundaries
Supports multi-station networking for joint coordinated control
Advanced drone swarm defense and expulsion capability
Standalone deployment without external detection sensors
Active prevention of drone take-off and zone entry
Spherical defense coverage with radius >500 meters
- Description
- Datasheet
- Reviews (0)
Description
The Base Station Type UAV Spoofing Defense System is an automated security solution designed to protect sensitive areas from unauthorized ‘black’ drone flights. By transmitting milliwatt-level signals, the system disrupts the satellite navigation components of incoming drones, establishing a spherical defense zone with a radius of over 500 meters. This effectively prevents drone take-offs within the zone, actively expels intruders, and blocks entry. The system provides 24/7 all-weather protection without the need for external detection hardware. It is ideal for long-term deployment at military sites, government buildings, prisons, and critical infrastructure such as oil depots and nuclear power plants, and is capable of managing drone swarms through networked multi-station control.
Base Station UAV Spoofing Defense System | |
| Base Station Type UAV Spoofing Defense System | |
Property | Value |
| Operating Distance | ≥ 500m (unobstructed conditions) |
| Working Frequency | Civil UAV navigation frequency bands |
| Main Unit Weight | ≤ 10kg |
| Main Unit Dimensions | ≤ Φ536mm, Height < 400mm |
| Power Supply | 110V – 220V |
| Startup Time | ≤ 10min |
| Standard Operating Temperature | -10°C to +50°C |
| Radiant Power | ≤ 10mW |
| Main Unit Power Consumption | ≤ 30W |
| Wide Operating Temperature Range | -40°C to +60°C |
| Wide Operating Temperature | -40°C to +60°C |
Features | |
| 24/7 all-weather protection for fixed defense areas | |
| Omni-directional defense against multiple drones | |
| Controllable defense range and boundaries | |
| Supports multi-station networking for joint coordinated control | |
| Advanced drone swarm defense and expulsion capability | |
| Standalone deployment without external detection sensors | |
| Active prevention of drone take-off and zone entry | |
| Spherical defense coverage with radius >500 meters | |
Applications | |
| It is ideal for long-term deployment at military sites, government buildings, prisons, and critical infrastructure such as oil depots and nuclear power plants, and is capable of managing drone swarms through networked multi-station control. | |
