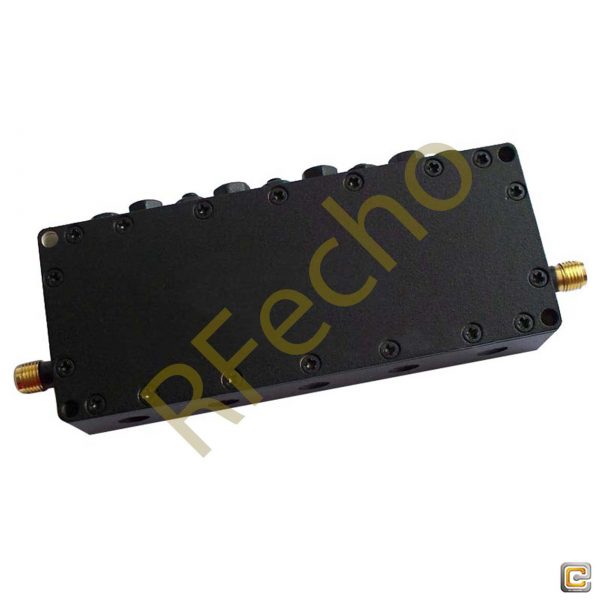

Cavity Band Pass OBP-1295-10

Cavity Band Pass OBP-1295-10

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-1295-10, its Center Frequency(F0) is 1295MHz, its Pass Band Bandwidth is 1290~1300MHz, its Pass Band Insertion Loss is ≤1.1dB, and its Pass Band Return Loss is ≥20dB. Its Stop Band frequency is DC~ 1230MHz & 1360~3000MHz.The Stop Band Rejection is:≥60dB

SKU: OBP-1295-10 Categories: ,

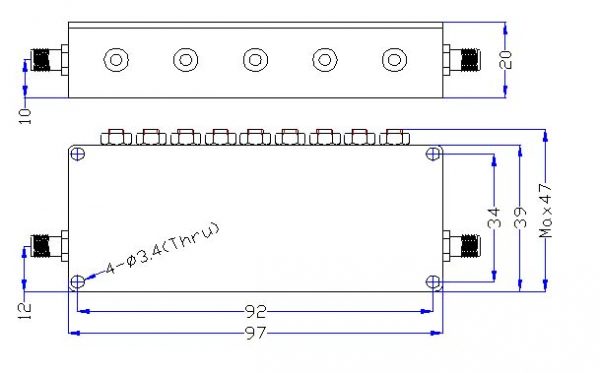

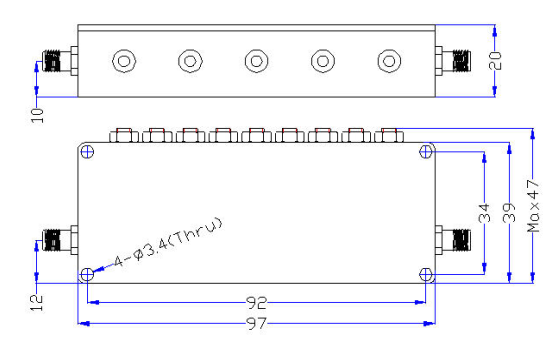

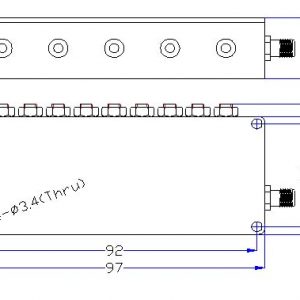

OBP 1295 10 outline Cavity Band Pass OBP-1295-10

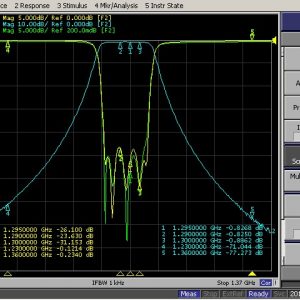

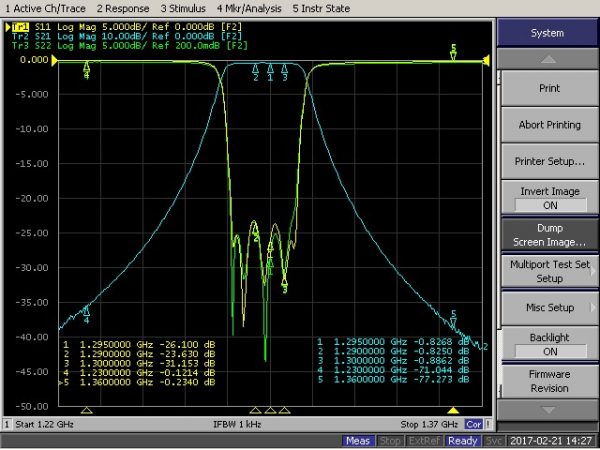

OBP 1295 10 plot1 Cavity Band Pass OBP-1295-10

Additional information

Center Frequency (F0) (MHz)

Min. Pass Band Frequency (MHz)

Max. Pass Band Frequency (MHz)

Pass Band Insertion Loss (dB)

Stop Band Rejection

Impedance (Ω)

Power Handling (W)

Connection Type
