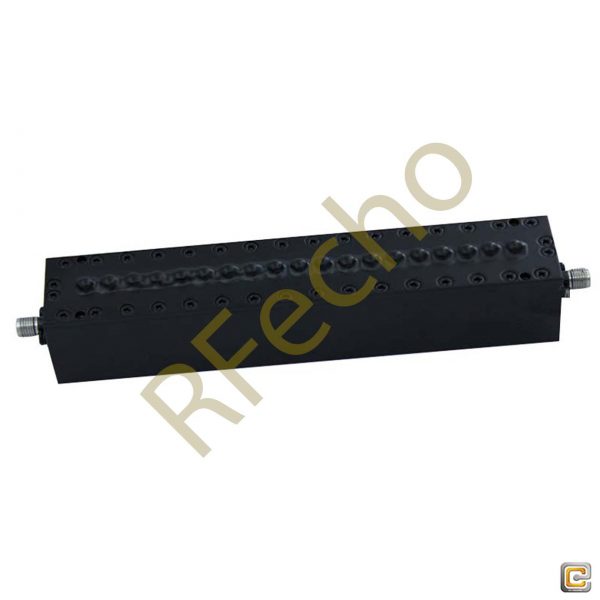

Cavity Band Pass OBP-1575-150

Cavity Band Pass OBP-1575-150

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:OBP) is a filter that allows waves of specific frequency
band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-1575-150, its Center Frequency(F0) is 1575MHz, its Pass Band Bandwidth is 1500~1650MHz, its Pass Band Insertion Loss is ≤1.5dB, and its Pass Band VSWR is ≤1.3:1. Its Stop Band frequency is DC~1450MHz & 1700~4000MHz. The Stop Band Rejection is: ≥40dB

SKU: OBP-1575-150 Categories: ,

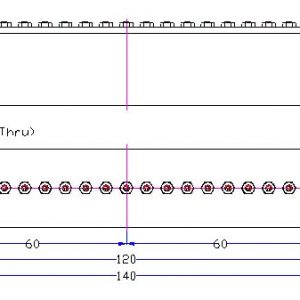

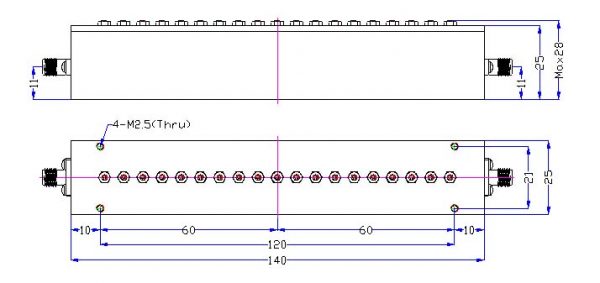

OBP 1575 150 outline Cavity Band Pass OBP-1575-150

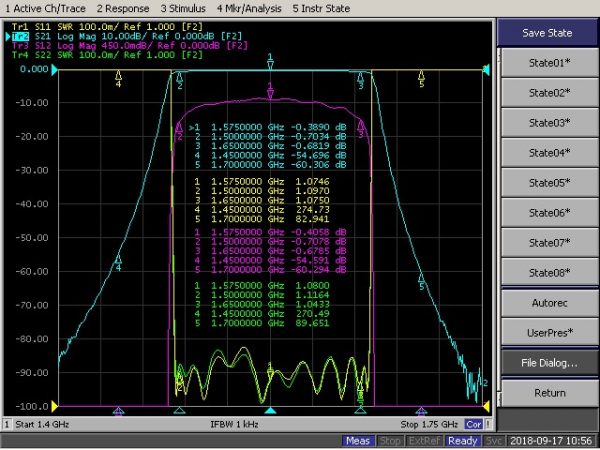

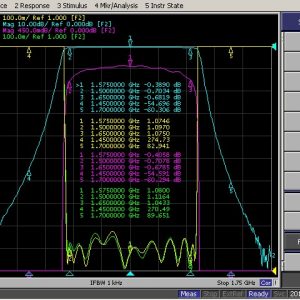

OBP 1575 150 plot1 Cavity Band Pass OBP-1575-150

Additional information

Center Frequency (F0) (MHz)

Min. Pass Band Frequency (MHz)

Max. Pass Band Frequency (MHz)

Pass Band Insertion Loss (dB)

Stop Band Rejection

Impedance (Ω)

Power Handling (W)

Connection Type
