Cavity Band Pass OBP-2475-120

Cavity Band Pass OBP-2475-120

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-2475-120, its Center Frequency(F0) is 2475MHz, its Pass Band Bandwidth is 2415~2535MHz, its Pass Band Insertion Loss is≤0.6dB, and its PassBand VSWR is≤1.2:1. Its Stop Band frequency is DC~2175MHz &2775~6000MHz. The Stop Band Rejection is:≥50dB

SKU: OBP-2475-120 Categories: ,

Description

PDF

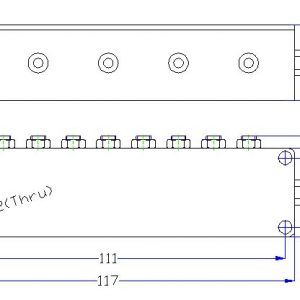

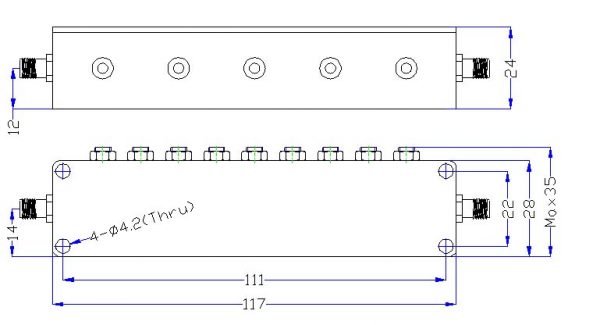

Outline

OBP 2475 120 outline Cavity Band Pass OBP-2475-120

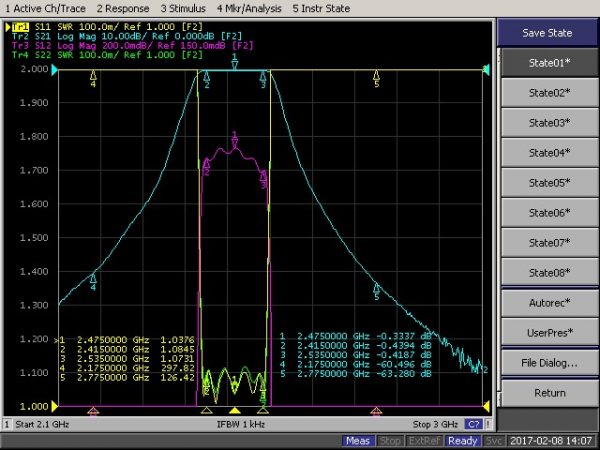

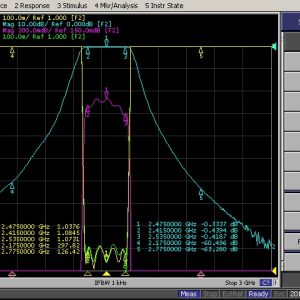

Plot

OBP 2475 120 plot1 Cavity Band Pass OBP-2475-120

Additional information

Center Frequency (F0) (MHz)

Min. Pass Band Frequency (MHz)

Max. Pass Band Frequency (MHz)

Pass Band Insertion Loss (dB)

Stop Band Rejection

Impedance (Ω)

Power Handling (W)

Connection Type
