Cavity Band Pass OBP-2477-10
Ocean Microwave band-pass filter (Ocean band-pass filter，abbreviation：OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

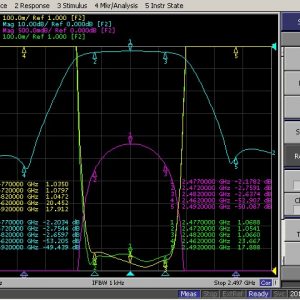

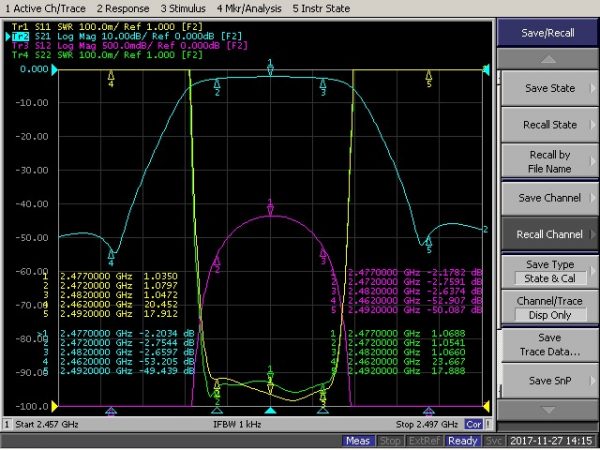

The product name of this Ocean band-pass filter (OBP) is OBP-2477-10, its Center Frequency(F0) is 2477MHz, its Pass Band Bandwidth is 2472～2482MHz, its Pass Band Insertion Loss is ≤3.0dB, and itsPassBand VSWR is≤1.3:1. Its Stop Band frequency is F0±15MHz. The S topBand Rejection is:≥40dB
