Cavity Band Pass OBP-2480-40
Ocean Microwave band-pass filter (Ocean band-pass filter，abbreviation：OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

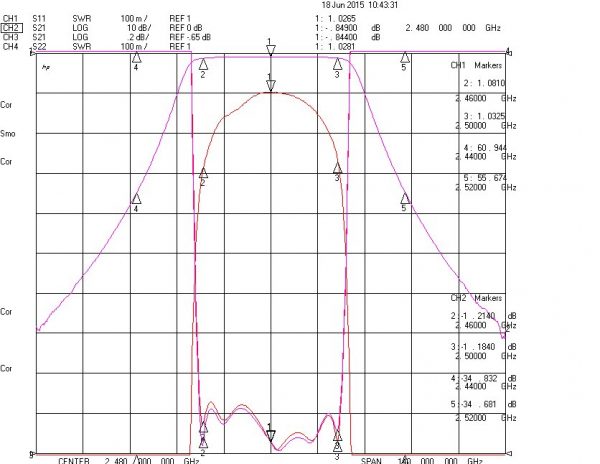

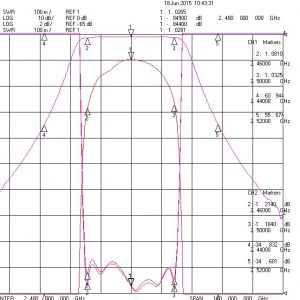

The product name of this Ocean band-pass filter (OBP) is OBP-2480-40, its Center Frequency(F0) is 2.48GHz, its Pass Band Bandwidth is 2.46GHz-2.5GHz, its Pass Band Insertion Loss is 2dB, and its Pass Band VSWR is1.5. Its Stop Band frequency is 2.44GHz & 2.52GHz. The Stop Band Rejection is 30dB.
- Additional information
- Reviews (0)
|Center Frequency (F0) (MHz)|
|Min. Pass Band Frequency (MHz)|
|Max. Pass Band Frequency (MHz)|
|Pass Band Insertion Loss (dB)|
|Stop Band Rejection|
|Power Handling (W)|
