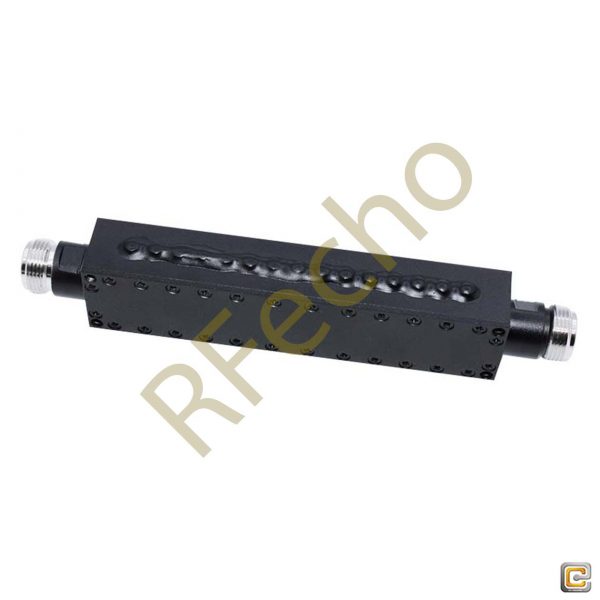

Cavity Band Pass OBP-3600-400

Cavity Band Pass OBP-3600-400

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-3600-400, its Center Frequency(F0) is 3.6GHz, its Pass Band Bandwidth is 3.4GHz-3.8GHz, its Pass Band Insertion Loss is 1dB, and its Pass Band VSWR is1.3. Its Stop Band frequency is DC-3.2GHz & 4-7GHz. The Stop Band Rejection is 40dB.

SKU: OBP-3600-400 Categories: ,

Description

PDF

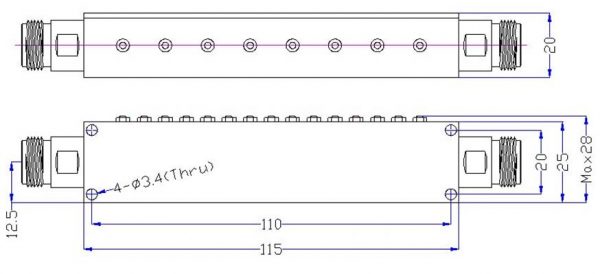

Outline

OBP 3600 400 outline Cavity Band Pass OBP-3600-400

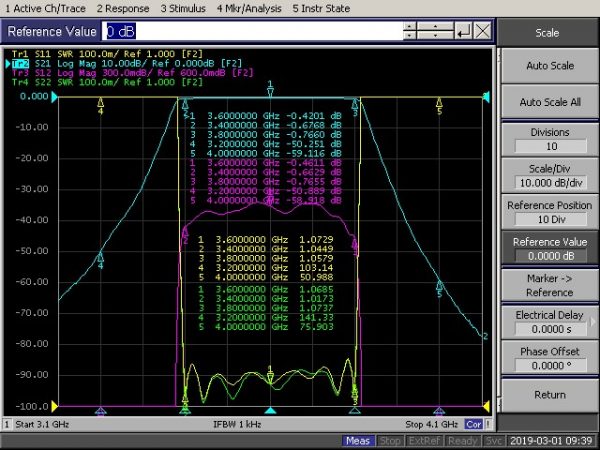

Plot

OBP 3600 400 plot1 Cavity Band Pass OBP-3600-400

Additional information

Center Frequency (F0) (MHz)

Min. Pass Band Frequency (MHz)

Max. Pass Band Frequency (MHz)

Pass Band Insertion Loss (dB)

Stop Band Rejection

Impedance (Ω)

Power Handling (W)

Connection Type
