Bandpass Filter From 9.30GHz To 9.40GHz With SMA-Female Connectors

Bandpass Filter From 9.30GHz To 9.40GHz With SMA-Female Connectors

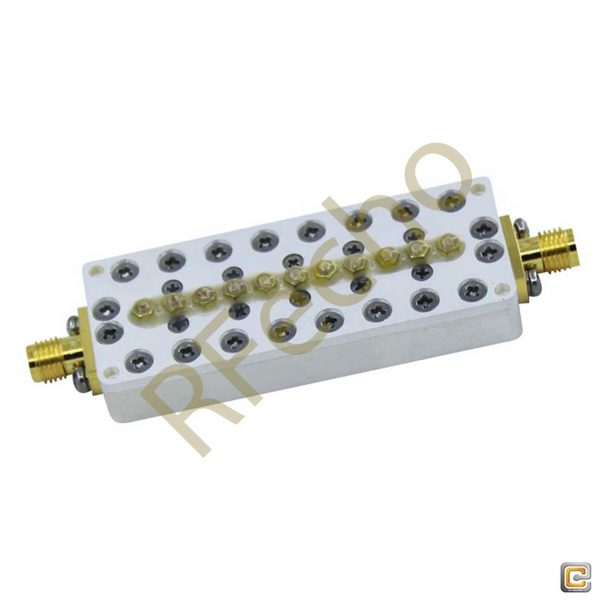

Cavity bandpass filter part number OBP-9350-100 is only one product of a wide selection of coaxial RF filter components supplied by RFecho. This RF cavity band pass filter design is built from 9.3GHz To 9.4GHz with SMA Female connectors. The SMA cavity bandpass filter design is rated for a VSWR of ≤1.3:1 and a maximum power of 5 Watts.

SKU: OBP-9350-100 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Cavity bandpass filter part number OBP-9350-100 is only one product of a wide selection of coaxial RF filter components supplied by RFecho. This RF cavity band pass filter design is built from 9.3GHz to 9.4GHz with SMA Female connectors. The SMA cavity bandpass filter design is rated for a VSWR of ≤1.3:1 and a maximum power of 5 Watts.

RFecho bandpass filter has a minimum passband frequency of 0.01 GHz and a maximum pass band frequency of 40 GHz. Cavity RF band-pass filter part number OBP-9350-100 has an insertion loss maximum that is 2.0 dB. More coaxial SMA bandpass filter design specs for this radio frequency component can be found on its cavity RF bandpass filter PDF specifications datasheet.



OBP-9350-100 Datasheet (Click to download)

OBP-9350-100

Additional information

Center Frequency (F0) (MHz)

9350

Min. Pass Band Frequency (MHz)

NA

Max. Pass Band Frequency (MHz)

NA

Pass Band Insertion Loss (dB)

≤2.0

Stop Band Rejection

≥60dB @ 9000MHz (Typical 65dB) ≥65dB @ 10000MHz

Impedance (Ω)

50

Power Handling (W)

≤5

Connection Type

SMA-Female
