Band Recject Filter From 2515MHz To 2675MHz With SMA-Female Connectors

Band Recject Filter From 2515MHz To 2675MHz With SMA-Female Connectors

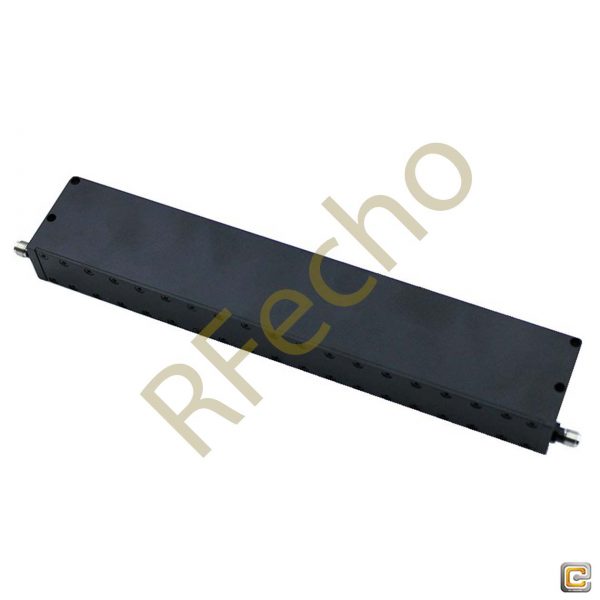

OBR-2595-160 band-reject filter (also called a band-stop filter or notch filter in narrow stopband) from RFecho is just part of a wide selection of coaxial RF filter products supplied. This RF band reject filter is built from 2515MHz to 2675MHz with SMA Female connectors. The SMA band-reject filter design is rated for a VSWR of 1.7:1 and a maximum power of 10 Watts.

SKU: OBR-2595-160 Categories: Cavity Band Reject Filter, RF Cavity Filter, RF Filters

Description

OBR-2595-160 band-reject filter (also called a band-stop filter or notch filter in narrow stopband) from RFecho is just part of a wide selection of coaxial RF filter products supplied. This RF band reject filter is built from 2515MHz to 2675MHz with SMA Female connectors. The SMA band-reject filter design is rated for a VSWR of 1.7:1 and a maximum power of 10 Watts.

RFecho band-reject / band-stop filters have a minimum stopband frequency of 200 MHz and a maximum stopband frequency of 18GHz. The band-stop / notch filter part number OBR-2595-160 has an insertion loss maximum that is 2.0 dB. More RF coaxial band-stop / notch filter specs for this radio frequency component can be found on its notch/rejection RF filter PDF specifications datasheet.

RFecho also stocks a large selection of other band-stop RF filter products that will ship the same day from our location. RF/microwave and millimeter wave cavity filter components and other RF parts for radio, antenna, other types of radio frequency component connections in typical use, production, test and measurement labs, military/defense, etc. are in stock and ship same day from our warehouse inventory.



Band Reject Filter Datasheet (Click to download)

OBR-2595-160

Additional information

Center Frequency (F0) (MHz)

NA

Stop Band Min. Frequency (MHz)

2515

Stop Band Max. Frequency (MHz)

2675

Stop Band Attenuation (dB)

≥40

Band Min. Frequency (MHz) A

DC

Band Max. Frequency (MHz) A

2465

Band Min. Frequency (MHz) B

2725

Band Max. Frequency (MHz) B

5200

Pass Band Insertion Loss (dB)

≤2

Impedance (Ω)

50

Power Handling (W)

≤10

Connection Type

SMA-Female
