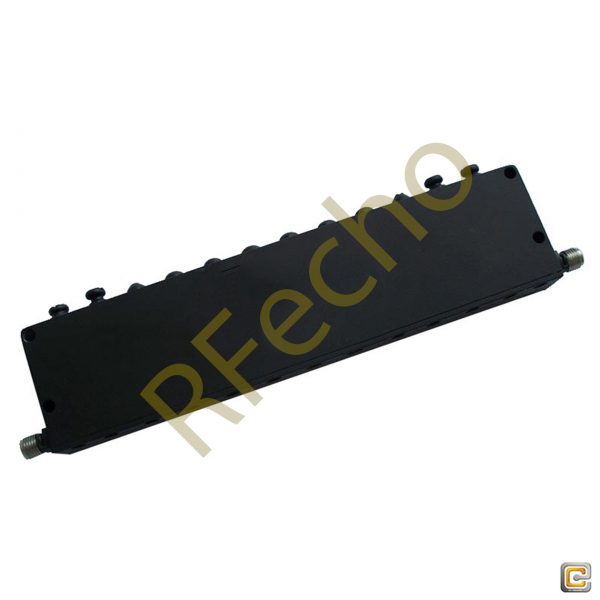

Band Reject RF Cavity Filter 3550MHz to 3700MHz rejection ≥ 40dB Cavity Passive Band Reject Filter with SMA Female Connector

Band Reject RF Cavity Filter model OHP: 3625-150 also known as Band Stop filter and Notch Filter that passes most frequencies unaltered but attenuates frequencies in a specific range to a very low level. This Band Reject RF Cavity Filter manufactured with a stopband frequency from 3550MHz to 3700MHz and a passband frequency from DC to 3500MHz & 3750MHZ to 9000MHz. Cavity Passive Band Reject Filter provides a nominal insertion loss of ≤2.5dB across its passband and a typical rejection of ≥40. This Band Reject RF Microwave Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Cavity Passive Band Reject Filter has Passband VSWR of ≤1.8:1 and Impedance of 50ohms. Band Reject RF Cavity Filter is manufactured with SMA Female Connector and Custom Net Weight. Our Ocean Microwave Band Reject Filter has power Handling of ≤20W. 3550MHz to 3700MHz Ocean Band Stop Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 3550MHz to 3700MHz Band Reject RF Cavity Filter is ready for shipping worldwide after purchase. Additional specs of this Cavity Passive Band Reject Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OBR-3625-150 Categories: Cavity Band Reject Filter, RF Cavity Filter, RF Filters

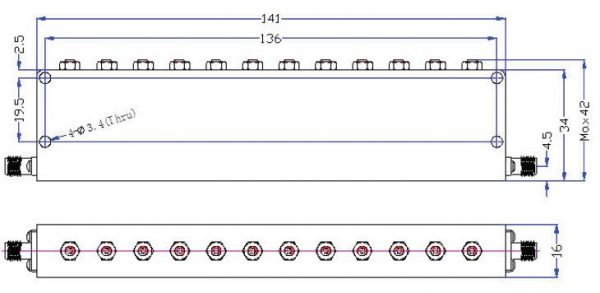

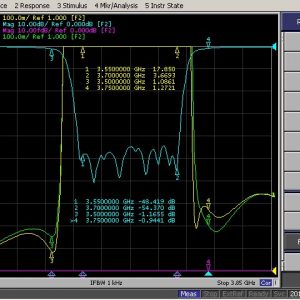

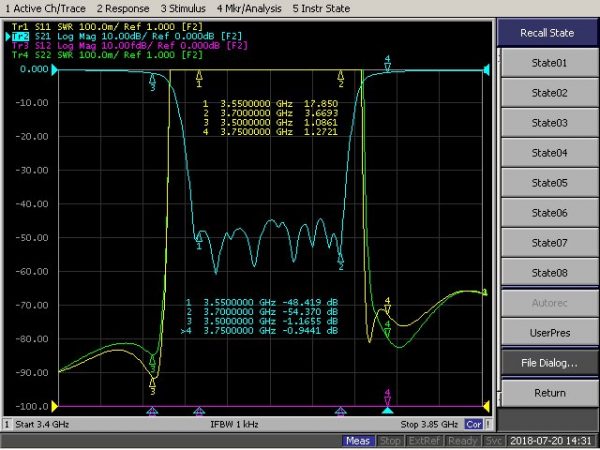

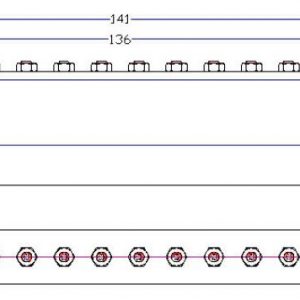

Description

OBR-3625-150 band-reject filter (also called a band-stop filter or notch filter in narrow stopband) from RFecho is just part of a wide selection of coaxial RF filter products supplied. This RF band reject filter is built from 3550MHz to 3700MHz with SMA Female connectors. The SMA band-reject filter design is rated for a VSWR of 1.8:1 and a maximum power of 20 Watts.

RFecho band-reject / band-stop filters have a minimum stopband frequency of 200 MHz and a maximum stopband frequency of 18GHz. The band-stop / notch filter part number OBR-3625-150 has an insertion loss maximum that is 2.0 dB. More RF coaxial band-stop / notch filter specs for this radio frequency component can be found on its notch/rejection RF filter PDF specifications datasheet.

RFecho also stocks a large selection of other band-stop RF filter products that will ship the same day from our location. RF/microwave and millimeter wave cavity filter components and other RF parts for radio, antenna, other types of radio frequency component connections in typical use, production, test and measurement labs, military/defense, etc. are in stock and ship same day from our warehouse inventory.



Band Reject Filter Datasheet (Click to download)



Additional information

Center Frequency (F0) (MHz)

NA

Stop Band Min. Frequency (MHz)

3550

Stop Band Max. Frequency (MHz)

3700

Stop Band Attenuation (dB)

≥40

Band Min. Frequency (MHz) A

DC

Band Max. Frequency (MHz) A

3500

Band Min. Frequency (MHz) B

3750

Band Max. Frequency (MHz) B

9000

Pass Band Insertion Loss (dB)

≤2

Impedance (Ω)

50

Power Handling (W)

≤20

Connection Type

SMA-Female
