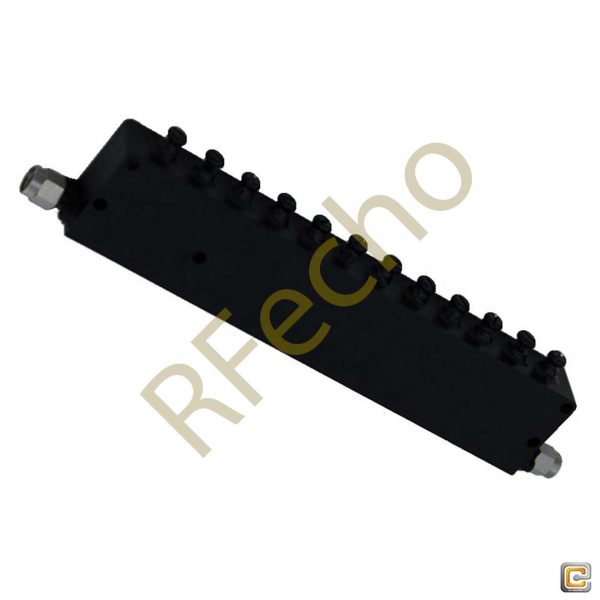

Cavity Band Rejection Filter OBR-4900-100

Cavity Band Rejection Filter OBR-4900-100

Ocean Microwave Bandstop Filters (Ocean Bandstop Filters, abbreviation:OBR) refer to filters that can pass through most frequency but attenuate some range of frequency to extremely low levels, which is opposite to the concept of band-pass filters. Among them, the notch filter is a special band-stop filter with a very small stop band range and a very high Q Factor.
The product name of this Ocean Bandstop Filters (OBR) is OBR-4900-100, its Stop Band Frequency is 4800~5000MHz,Stop Band attenuation is 40dB, its Pass Band Frequency is DC~4730MHz & 5070~10000MHz, and its Pass Band Insertion Loss is 2.5dB. Its Pass Band VSWR is 1.8:1

SKU: OBR-4900-100 Categories: ,

Description

PDF

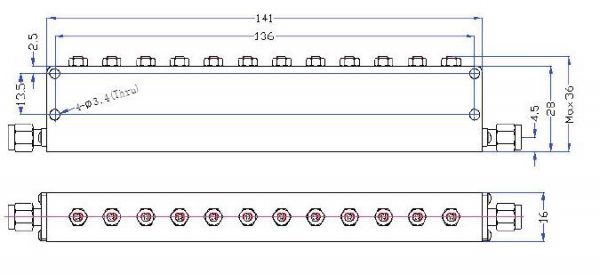

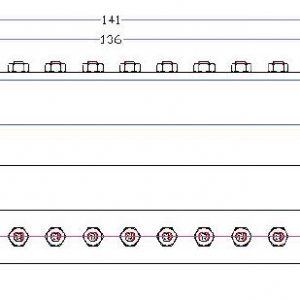

Outline

OBR 4900 100 outline Cavity Band Rejection Filter OBR-4900-100

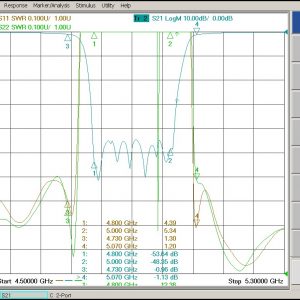

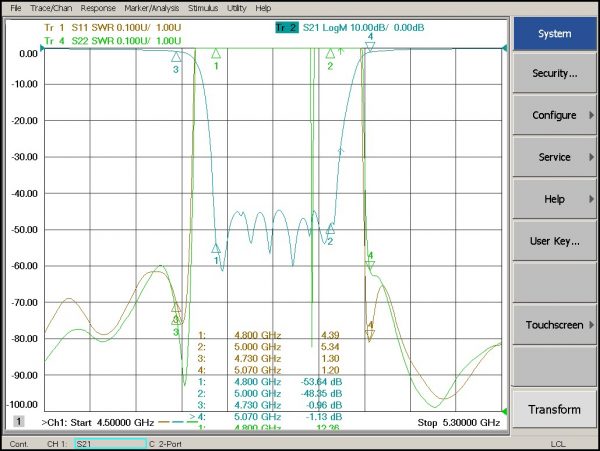

Plot

OBR 4900 100 plot1 Cavity Band Rejection Filter OBR-4900-100

Additional information

Center Frequency (F0) (MHz)

Stop Band Min. Frequency (MHz)

Stop Band Max. Frequency (MHz)

Stop Band Attenuation (dB)

Band Min. Frequency (MHz) A

Band Max. Frequency (MHz) A

Band Min. Frequency (MHz) B

Band Max. Frequency (MHz) B

Pass Band Insertion Loss (dB)

Impedance (Ω)

Power Handling (W)

Connection Type
