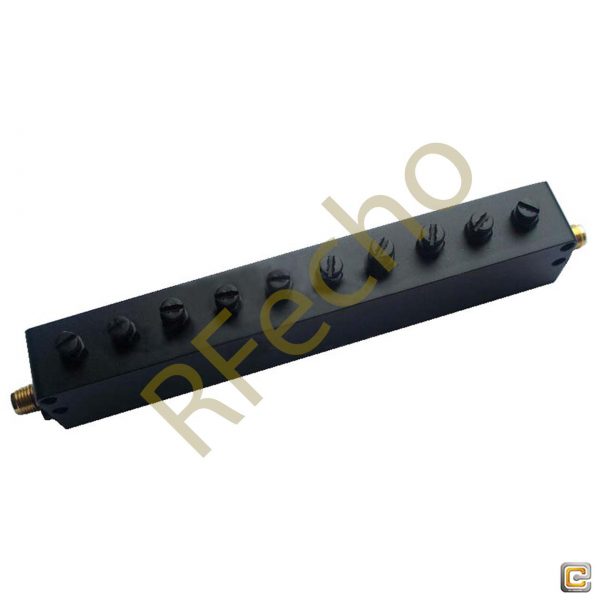

Band Recject Filter From 4900MHz To 5900MHz With SMA-Female Connectors

Band Recject Filter From 4900MHz To 5900MHz With SMA-Female Connectors

OBR-5400-1000 band-reject filter (also called a band-stop filter or notch filter in narrow stopband) from RFecho is just part of a wide selection of coaxial RF filter products supplied. This RF band reject filter is built from 4900MHz To 5900MHz with SMA Female connectors. The SMA band-reject filter design is rated for a VSWR of 1.7:1 and a maximum power of 2 Watts.

SKU: OBR-5400-1000 Categories: Cavity Band Reject Filter, RF Cavity Filter, RF Filters

Description

OBR-5400-1000 band-reject filter (also called a band-stop filter or notch filter in narrow stopband) from RFecho is just part of a wide selection of coaxial RF filter products supplied. This RF band reject filter is built from 4900MHz To 5900MHz with SMA Female connectors. The SMA band-reject filter design is rated for a VSWR of 1.7:1 and a maximum power of 2 Watts.

RFecho band-reject / band-stop filters have a minimum stopband frequency of 200 MHz and a maximum stopband frequency of 18GHz. The band-stop / notch filter part number OBR-5400-1000 has an insertion loss maximum that is 3.0 dB. More RF coaxial band-stop / notch filter specs for this radio frequency component can be found on its notch/rejection RF filter PDF specifications datasheet.

RFecho also stocks a large selection of other band-stop RF filter products that will ship the same day from our location. RF/microwave and millimeter wave cavity filter components and other RF parts for radio, antenna, other types of radio frequency component connections in typical use, production, test and measurement labs, military/defense, etc. are in stock and ship same day from our warehouse inventory.



Band Reject Filter Datasheet (Click to download)

OBR-5400-1000

Additional information

Center Frequency (F0) (MHz)

NA

Stop Band Min. Frequency (MHz)

4900

Stop Band Max. Frequency (MHz)

5900

Stop Band Attenuation (dB)

≥40

Band Min. Frequency (MHz) A

DC

Band Max. Frequency (MHz) A

4550

Band Min. Frequency (MHz) B

6250

Band Max. Frequency (MHz) B

8000

Pass Band Insertion Loss (dB)

≤3

Impedance (Ω)

50

Power Handling (W)

≤2

Connection Type

SMA-Female
