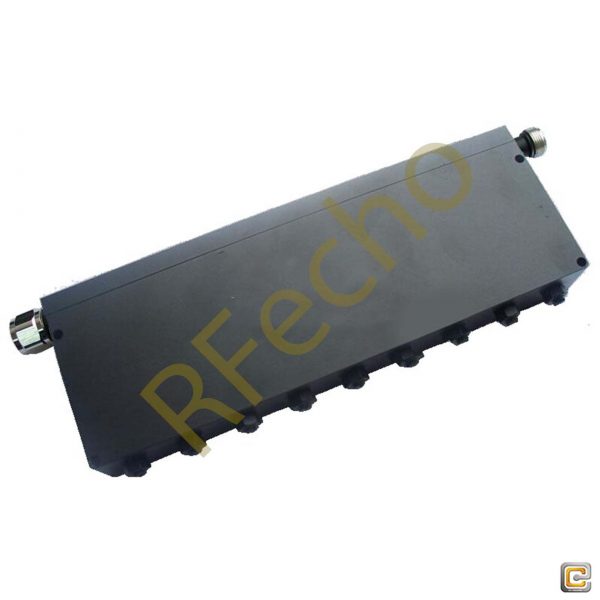

791MHz to 821MHz Band Reject RF Filter model OHP: 806-30 also known as Band Stop filter and Notch Filter that passes most frequencies unaltered but attenuates frequencies in a specific range to a very low level. This 791MHz to 821MHz Band Reject RF Filter manufactured with a stopband frequency from 791MHz to 821MHz and a passband frequency from DC to 771MHz & 841MHZ to 2200MHz. Cavity Passive Band Reject Filter provides a nominal insertion loss of ≤1.5dB across its passband and a typical rejection of ≥45. Our 791MHz to 821MHz Band Reject RF Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Cavity Passive Band Reject Filter has Passband VSWR of ≤1.5:1 and Impedance of 50ohms. 791MHz to 821MHz Band Reject RF Filter is manufactured with N-Type M/F Connector and Net Weight of 0.95Kg. Our Ocean Microwave Band Reject Filter has power Handling of ≤50W. 791MHz to 821MHz Ocean Band Stop Cavity filter from RFecho is just one part in a large selection of our RF Components. 791MHz to 821MHz Band Reject RF Filter is ready for shipping worldwide after purchase. Additional specs of this Band Reject Cavity Passive Filter with N-Type M/F Connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OBR-806-30 Categories: Cavity Band Reject Filter, RF Cavity Filter, RF Filters

Description

OBR-806-30 band-reject filter (also called a band-stop filter or notch filter in narrow stopband) from RFecho is just part of a wide selection of coaxial RF filter products supplied. This RF band reject filter is built from 791MHz to 821MHz with N-Type Male/Female connectors. The N-Type band-reject filter design is rated for a VSWR of 1.5:1 and a maximum power of 50 Watts.

RFecho band-reject / band-stop filters have a minimum stopband frequency of 200 MHz and a maximum stopband frequency of 18GHz. The band-stop / notch filter part number OBR-806-30 has an insertion loss maximum that is 1.5 dB. More RF coaxial band-stop / notch filter specs for this radio frequency component can be found on its notch/rejection RF filter PDF specifications datasheet.

RFecho also stocks a large selection of other band-stop RF filter products that will ship the same day from our location. RF/microwave and millimeter wave cavity filter components and other RF parts for radio, antenna, other types of radio frequency component connections in typical use, production, test and measurement labs, military/defense, etc. are in stock and ship same day from our warehouse inventory.



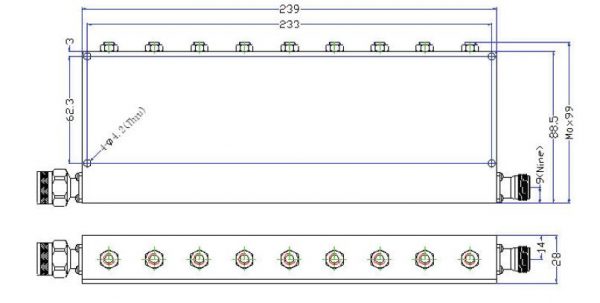

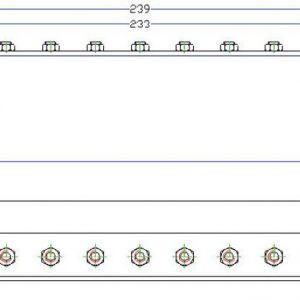

Band Reject Filter Datasheet (Click to download)

OBR-806-30

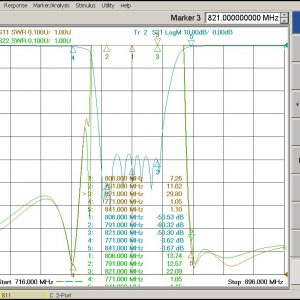

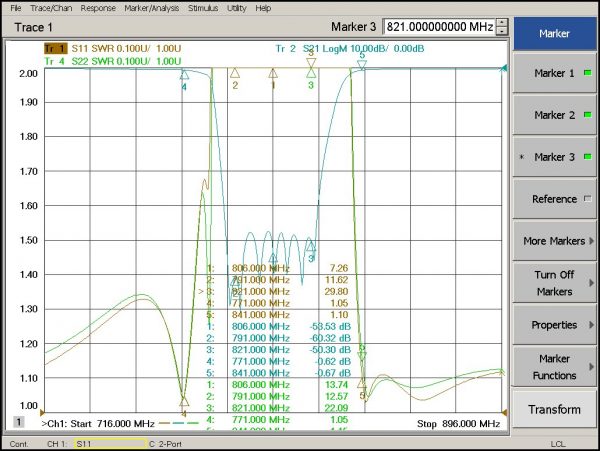

Additional information

Center Frequency (F0) (MHz)

NA

Stop Band Min. Frequency (MHz)

791

Stop Band Max. Frequency (MHz)

821

Stop Band Attenuation (dB)

≥45

Band Min. Frequency (MHz) A

DC

Band Max. Frequency (MHz) A

771

Band Min. Frequency (MHz) B

841

Band Max. Frequency (MHz) B

2200

Pass Band Insertion Loss (dB)

≤1.5

Impedance (Ω)

50

Power Handling (W)

≤50

Connection Type

N-Male / N-Female
