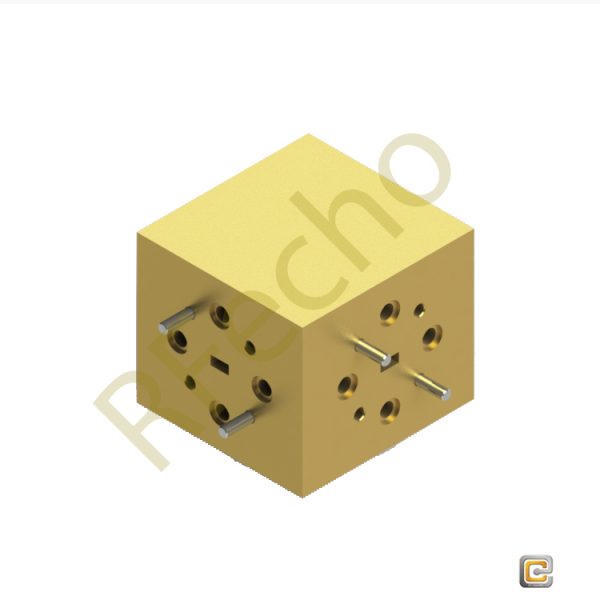

Model OIS-180270-15-15-KFKF-I is a full K band coaxial isolator that covers the frequency range of 18 to 26.5GHz.
The full band isolator is designed andmanufactured to provide an insertion loss of1.5dB typical with good flatness. Theisolator also offers a moderate isolation of 15dBfor system integration and a highpower handling.
The RF interface of other type of connector combinations are alsooffered under different model numbers.

SKU: OIS-180270-15-15-KFKF-I Categories: Ferrite Devices, Routing

Description

SPEC

Ferrite Devices



ModelOIS-180270-15-15-KFKF-I is a full K band coaxial isolator that covers the frequency range of 18 to 26.5GHz. The full band isolator is designed and manufactured to provide an insertion loss of1.5dB typical with good flatness. The isolator also offers a moderate isolation of 15dBfor system integration and a high power handling.The RF interface of other type of connector combinations are also offered under different model numbers.



Features

Low InsertionLoss

Moderate Isolation

Compact Configuration





Applications

Port Isolation

Module Integration

Part No.

OIS-180270-15-15-KFKF-I

RF Frequency Range(GHz)

18-26.5

Insertion Loss(dB)

    1.5

Isolation(dB)

    15

Return Loss(dB)

    14

Forward PowerHandling(W) Reverse Power Handling(W)

Specification Temperature

Operating Temperature

Impedance

5

14

+25 °C

-25°C~+60 °C

50 Ω





PDF

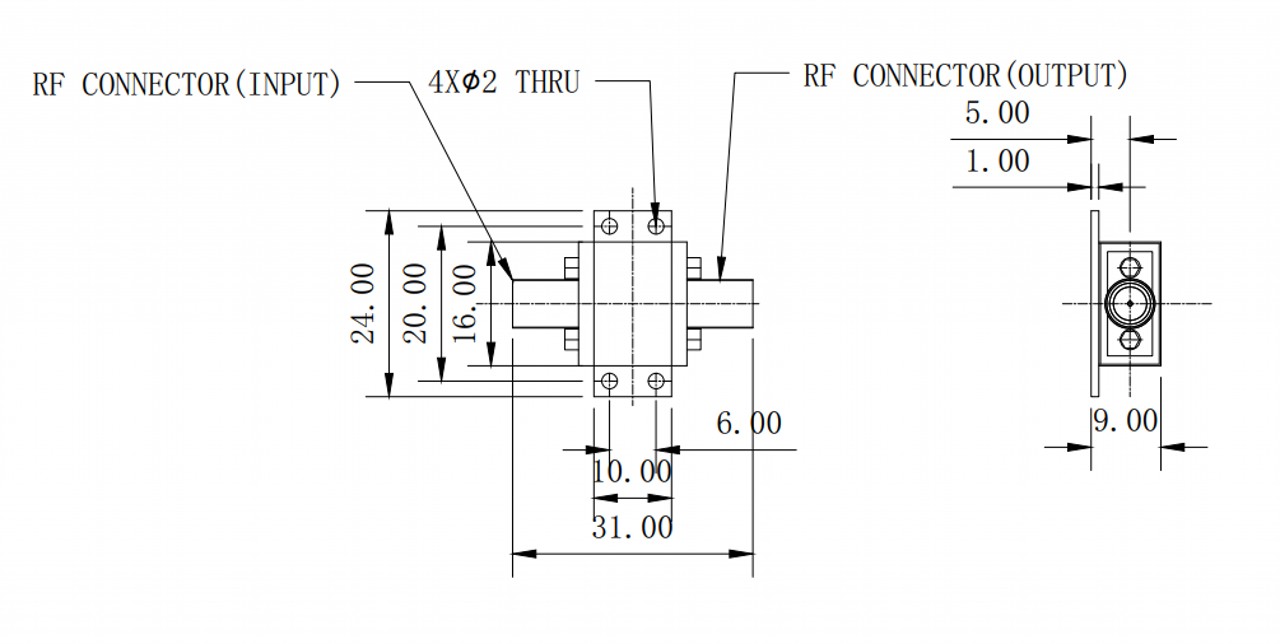

Outline

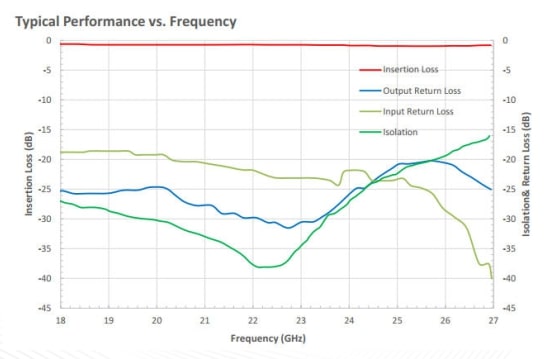

Plot

Additional information

Min. Frequency (GHz)

18

Max. Frequency (GHz)

26.5

Insertion Loss (dB)

1.5

Isolation (dB)

15

VSWR

NA
