Ferrite Devices OIS-180270-15-15-SFSF-I

Ferrite Devices OIS-180270-15-15-SFSF-I

0 out of 5

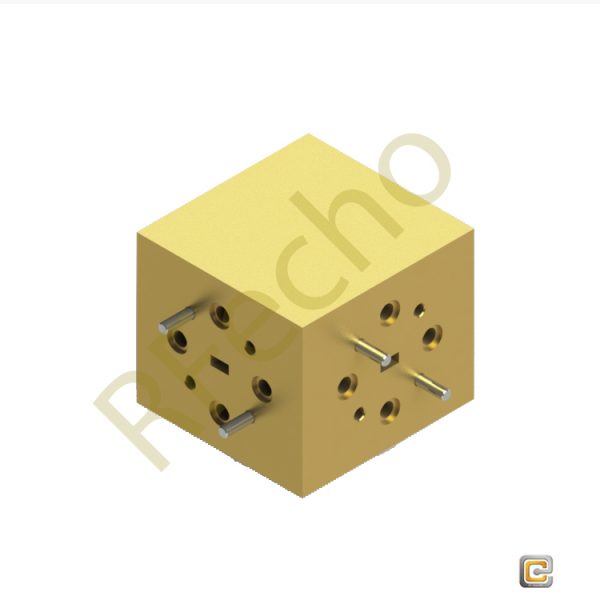

Model OIS-180270-15-15-SFSF-I is a full K band coaxial isolator that covers the frequency range of 18 to 26.5GHz.
The full band isolator is designed andmanufactured to provide an insertion loss of 1.5dB typical with good flatness. The isolator also offers a moderate isolation of 15dBfor system integration and a highpower handling.
The input and output ports are SMA(F) connectors. The RFinterface of other type of connectors, such as SMA(M) or 2.92 mm (K) connectors isalso available under different model numbers.

Description

SPEC

Ferrite Devices



Model OIS-180270-15-15-SFSF-I is a full K band coaxial isolator that covers the frequency range of 18 to 26.5GHz. The full band isolator is designed and manufactured to provide an insertion loss of 1.5dB typical with good flatness.



The isolator also offers a moderate isolation of 15dBfor system integration and a high power handling. The input and output ports are SMA(F) connectors. The RF interface of other type of connectors, such as SMA(M) or 2.92 mm (K) connectors is also available under different model numbers.



Features

Low Insertion Loss

Moderate Isolation

Compact Configuration





Applications

Port Isolation

Module Integration

Part No.

OIS-180270-15-15-SFSF-I

RF Frequency Range(GHz)

18.0-26.5

Insertion Loss(dB)

   1.5

Isolation(dB)

    15

VSWR

   1.5:1

Forward Power Handling(W)

Specification Temperature

Operating Temperature

Impedance

20

+25 °C

-40°C~+85 °C

50 Ω





PDF

Outline

OIS 180270 15 15 SFSF I outline Ferrite Devices OIS-180270-15-15-SFSF-I

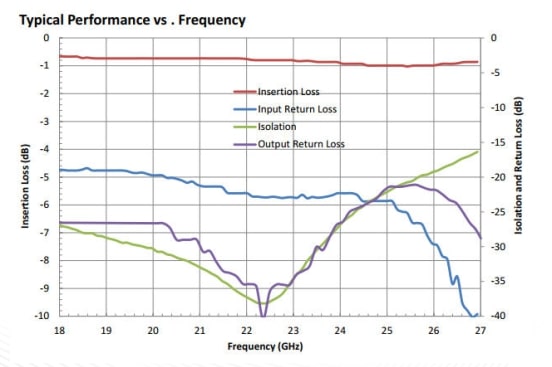

Plot

OIS 180270 15 15 SFSF I plot1 Ferrite Devices OIS-180270-15-15-SFSF-I

Additional information

Min. Frequency (GHz)

18

Max. Frequency (GHz)

26.5

Insertion Loss (dB)

Isolation (dB)

VSWR

1.5:1
