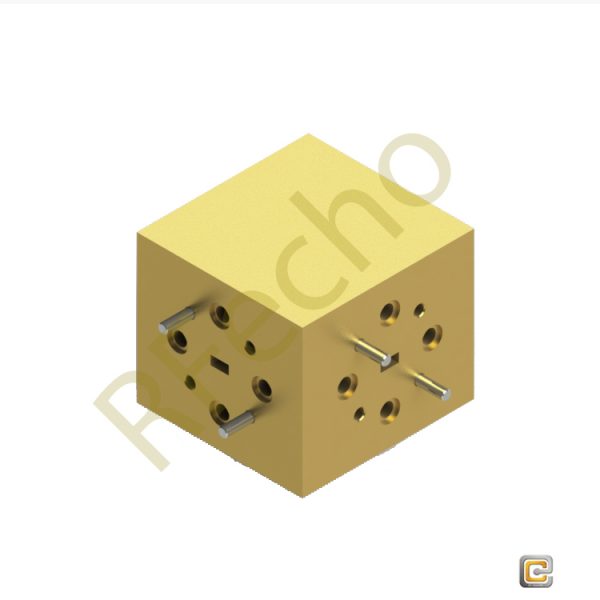

Model OIS-270400-16-14-KFKF-C is a Ka band coaxial circulator that,covers the frequency range of 26.5 to 40GHz.
The coaxial circulator is designed and manufactured to provide a low insertion loss of 1.6dB typical with goodflatness. The circulator also offers a moderate isolation of 14dBfor systemintegration.The input and output ports are 2.92 mm(K)female connectors.
The RF interface of other type of connectors,such as 2.92 mm (M) connectors is also available under different model numbers.

SKU: OIS-270400-16-14-KFKF-C Categories: Ferrite Devices, Passive Devices

Description

SPEC

Ferrite Devices



Model OIS-270400-16-14-KFKF-C is a Ka band coaxial circulator that, covers the frequency range of 26.5 to 40GHz. The coaxial circulator is designed and manufactured to provide a low insertion loss of 1.6dB typical with good flatness.



The circulator also offers a moderate isolation of 14dBfor system integration. The input and output ports are 2.92 mm(K)female connectors. The RF interface of other type of connectors, such as 2.92 mm (M) connectors is

also available under different model numbers.



Features

Low Insertion Loss

Moderate Isolation

Compact Configuration



Applications

Port Isolation

Module Integration

Part No.

OIS-270400-16-14-KFKF-C

RF Frequency Range(GHz)

26.5-40

Insertion Loss(dB)

    1.6

Isolation(dB)

    14

VSWR

   1.6:1

Power Handling(W) Specification Temperature

Operating Temperature

Impedance

10

+25 °C

-40°C~+80 °C

50 Ω





PDF

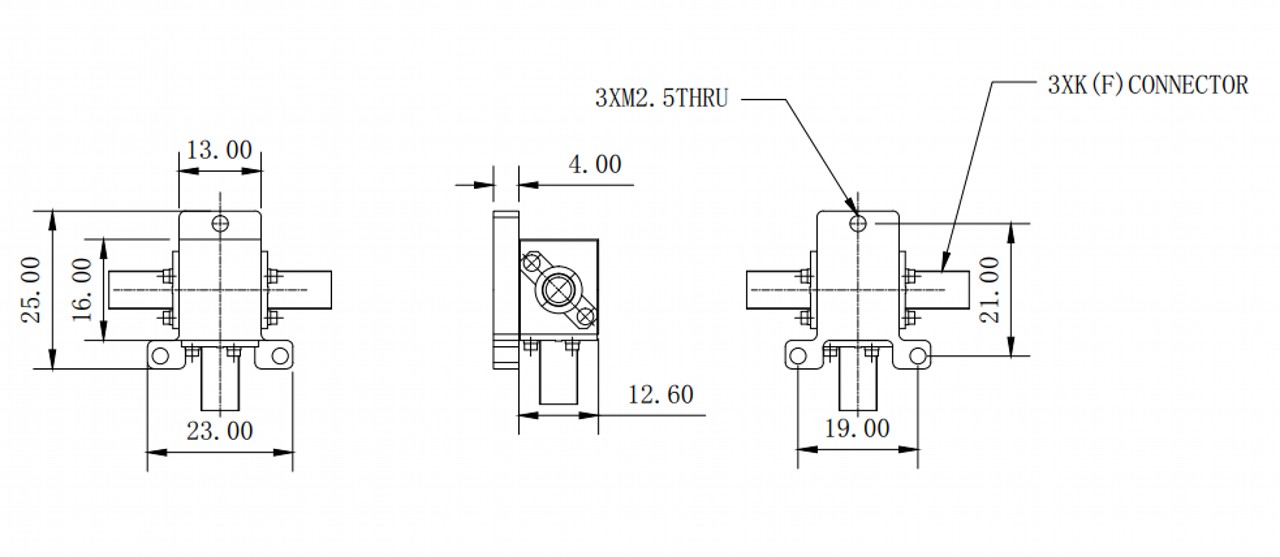

Outline

Ferrite Devices OIS-270400-16-14-KFKF-C

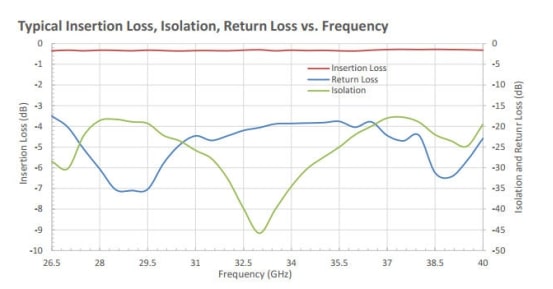

Plot

Ferrite Devices OIS-270400-16-14-KFKF-C

Additional information

Min. Frequency (GHz)

26.5

Max. Frequency (GHz)

40

Insertion Loss (dB)

1.6

Isolation (dB)

14

VSWR

1.6:1
