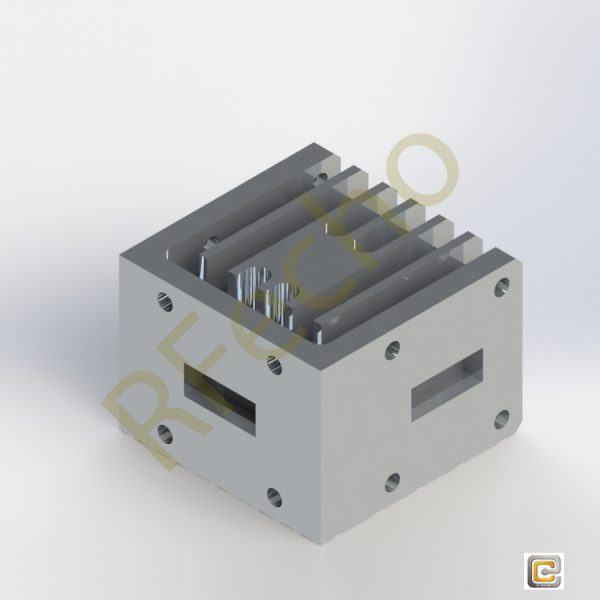

Model OIS-270400-16-14-KMKM-I is a full Ka band coaxial isolator that covers the frequency range of 26.5 to 40GHz.
The full band isolator is designed andmanufactured to provide an insertion loss of 1.6dB typical with good flatness. The isolator also offers a moderate isolation of 14dB and a high-power handling for system integration.The input and output ports are K (M) connectors.
The RFinterface of other type of connector combinations are also offered underdifferent model numbers.

Description

SPEC

Ferrite Devices



Model OIS-270400-16-14-KMKM-I is a full Ka band coaxial isolator that covers the frequency range of 26.5 to 40GHz. The full band isolator is designed and manufactured to provide an insertion loss of 1.6dB typical with good flatness.

The isolator also offers a moderate isolation of 14dB and a high-power handling for system integration. The input and output ports are K (M) connectors. The RF interface of other type of connector combinations are also offered under

different model numbers.



Features

Low Insertion Loss

Moderate Isolation

Compact Configuration





Applications

Port Isolation

Module Integration

Part No.

OIS-270400-16-14-KMKM-I

RF Frequency Range(GHz)

26.5-40

Insertion Loss(dB)

    1.6

Isolation(dB)

    14

Return Loss(dB)

    12

Forward Power Handling(W) Reverse Power Handling(W)

Specification Temperature

Operating Temperature

10

1

+25 °C

-40°C~+80 °C





PDF

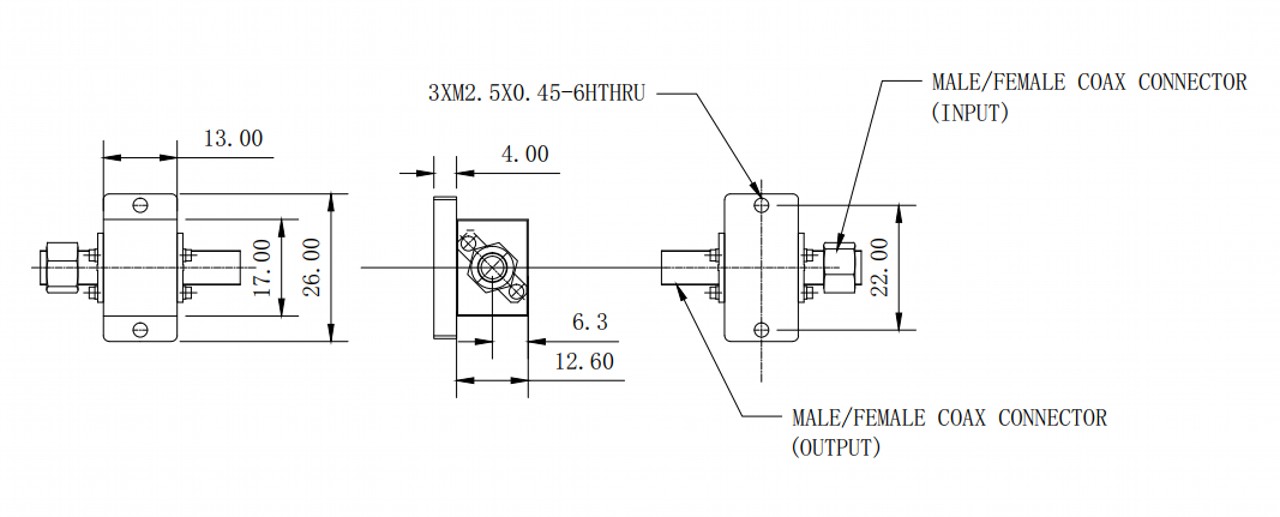

Outline

OIS 270400 16 14 KMKM I outline Ferrite Devices OIS-270400-16-14-KMKM-I

Plot

OIS 270400 16 14 KMKM I plot1 Ferrite Devices OIS-270400-16-14-KMKM-I

Additional information

Min. Frequency (GHz)

26.5

Max. Frequency (GHz)

40

Insertion Loss (dB)

Isolation (dB)

VSWR

NA
