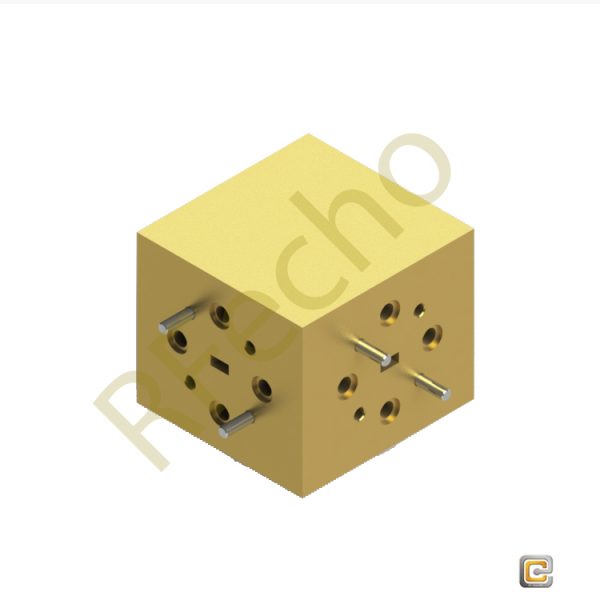

Ferrite Devices OIS-34-H

Ferrite Devices OIS-34-H

0 out of 5

Model OIS-34-H is a WR-34,waveguide junction isolator that covers thefrequency range of 22 to 33GHz.
The full band isolator is designed andmanufactured to provide a low insertion loss of 0.45dB typical with goodflatness. The isolator also offers a moderate isolation of 19dB for systemintegration and a high power handling.
The input and output ports are WR-34waveguides with UG-1530/U flanges.

Description

SPEC

Ferrite Devices



Model OIS-34-H is a WR-34, waveguide junction isolator that covers the frequency range of 22 to 33GHz. The full band isolator is designed and manufactured to provide a low insertion loss of 0.45dB typical with good flatness. The isolator also offers a moderate isolation of 19dB for system integration and a high power handling.The input and output ports are WR-34 waveguides with UG-1530/U flanges



Features

Low InsertionLoss

Moderate Isolation

Compact Configuration

.



Applications

Port Isolation

Module Integration

Part No.

OIS-34-H

RF Frequency Range(GHz)

22-33

Insertion Loss(dB)

    0.45

Isolation(dB)

    19

VSWR

   1.25:1

Forward PowerHandling(W) Reverse Power Handling(W)

Specification Temperature

Operating Temperature

25

10

+25 °C

-25°C~+60 °C





PDF

Outline

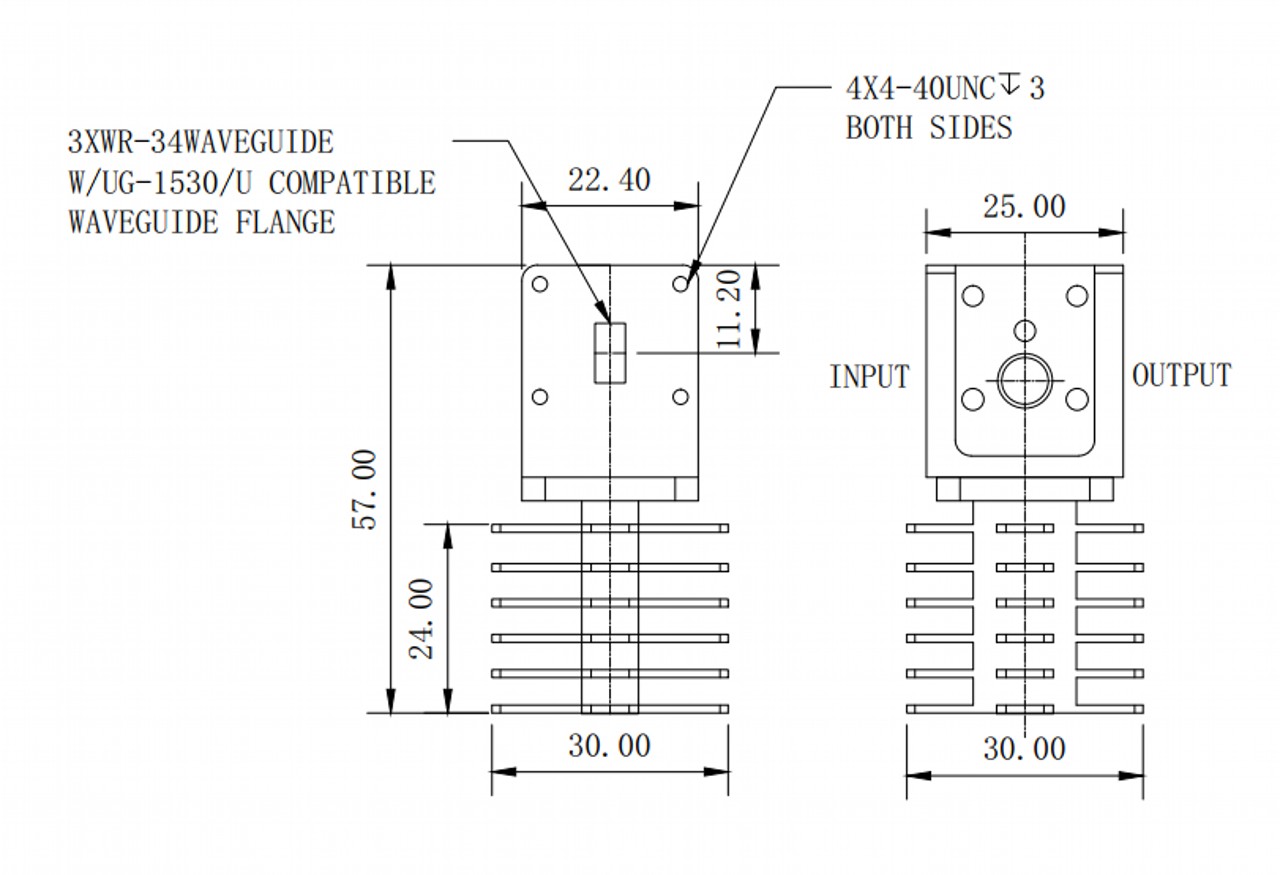

OIS 34 H outline Ferrite Devices OIS-34-H

Plot

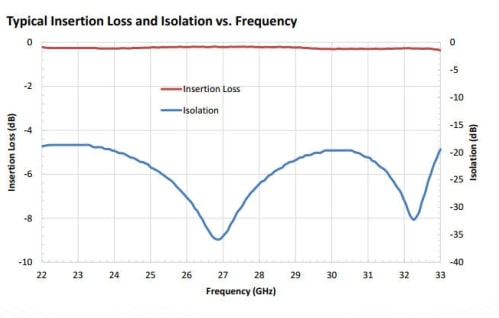

OIS 34 H plot1 Ferrite Devices OIS-34-H
OIS 34 H plot2 Ferrite Devices OIS-34-H

Additional information

Min. Frequency (GHz)

22

Max. Frequency (GHz)

33

Insertion Loss (dB)

Isolation (dB)

VSWR

1.25:1
