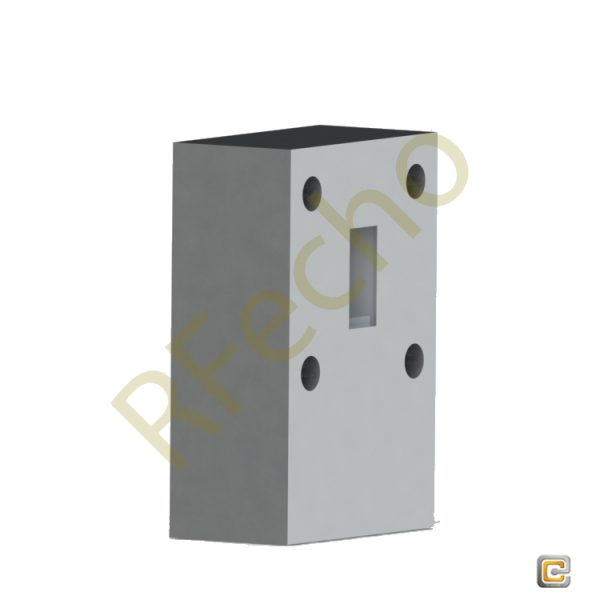

Model OIS-370400-05-18-28 is a Ka band waveguide junction isolatorthat covers the frequency range of 37 to 40GHz.
Compared with a Faradayisolator, the waveguide junction isolator offers a lower insertion loss of 0.5dB typical and a much shorter insertion length for system integration. As a trade off, the waveguide junction isolator only offers a typical isolation of 18dB.
The input and output ports are WR-28 waveguides with UG-599/Uflanges.

SKU: OIS-370400-05-18-28 Categories: Ferrite Devices, Routing

Description

SPEC

Ferrite Devices



Model OIS-370400-05-18-28 is a Ka band waveguide junction isolator that covers the frequency range of 37 to 40GHz. Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss of 0.5dB typical and a much shorter insertion length for system integration.



As a trade off, the waveguide junction isolator only offers a typical isolation of

18dB.The input and output ports are WR-28 waveguides with UG-599/U flanges.



Features

Low Insertion Loss

Moderate Isolation

Compact Configuration



Applications

Port Isolation

Module Integration

Part No.

OIS-370400-05-18-28

RF Frequency Range(GHz)

37-40

Insertion Loss(dB)

    0.5

Isolation(dB)

    18

VSWR

    1.35:1

Forward Power Handling(W) Reverse Power Handling(W)

Specification Temperature

Operating Temperature

8(CW)

2(CW)

+25 °C

-40°C~+85 °C





PDF

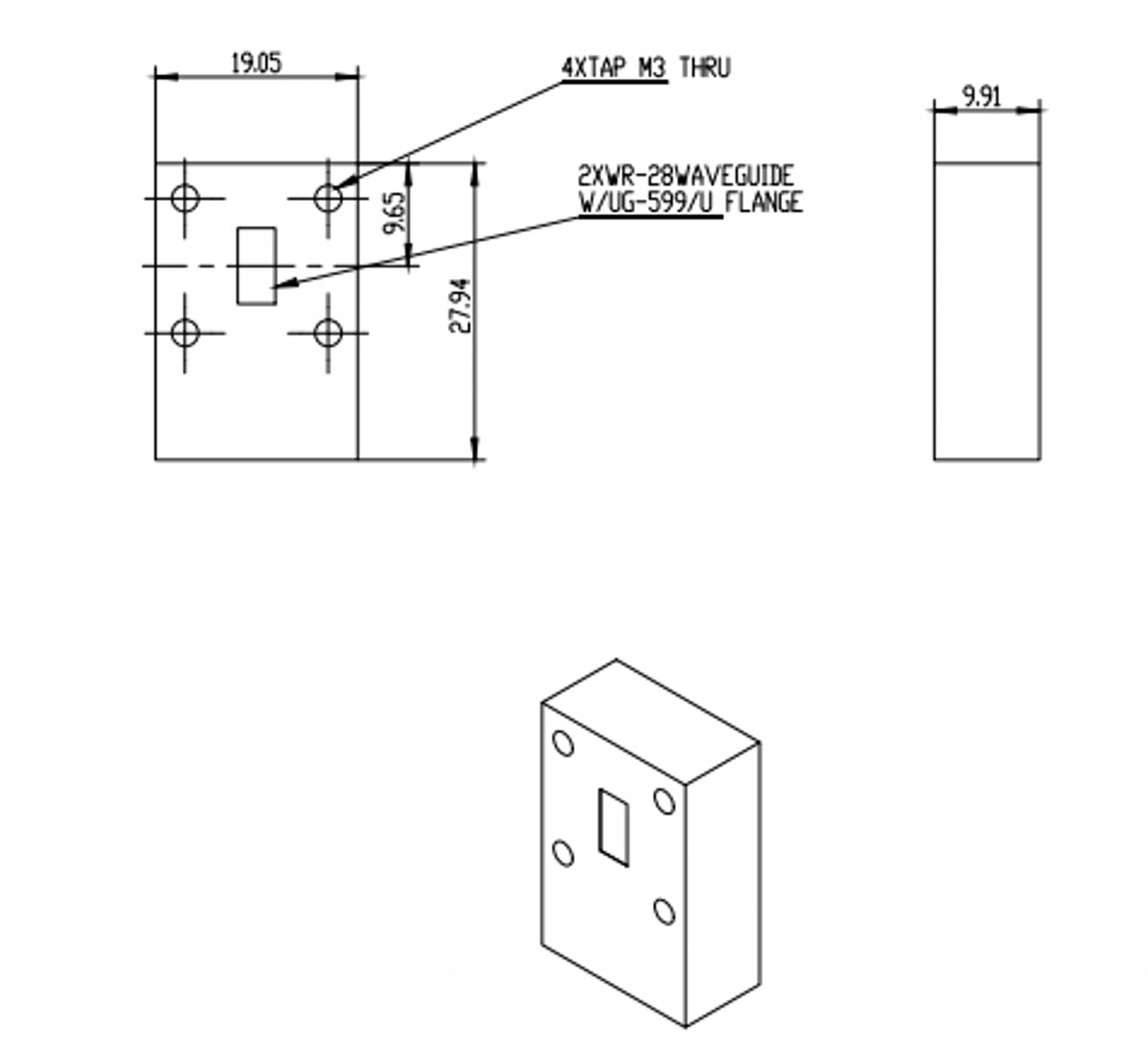

Outline

Ferrite Devices OIS-370400-05-18-28

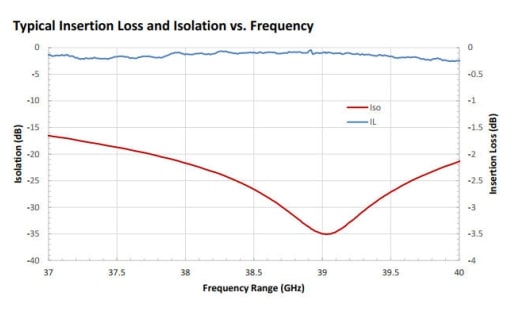

Plot

Ferrite Devices OIS-370400-05-18-28

Additional information

Min. Frequency (GHz)

37

Max. Frequency (GHz)

40

Insertion Loss (dB)

0.5

Isolation (dB)

18

VSWR

1.35:1
