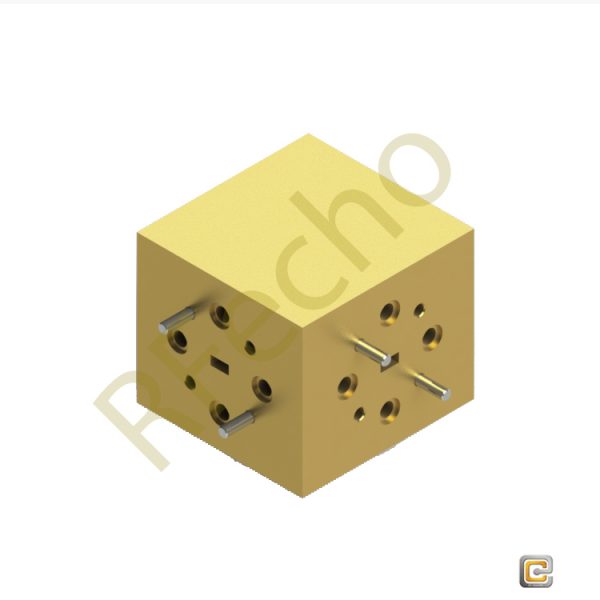

Model OIS-42 is a K band,wave guide junction isolator that covers thefrequency range of 18 to 26.5 GHz.
The full band isolator is designed andmanufactured to provide a low insertion loss of 0.3dB typical with good flatness.Compared to a Faraday isolator,it offers a much shorter insertion lengthfor systemintegration.
The isolator also offers a moderate isolation of 20dB. Theinput and output ports are WR-42waveguides with UG-595/U flanges.

Description

SPEC

Ferrite Devices



Model OIS-42 is a K band, wave guide junction isolator that covers the frequency range of 18 to 26.5 GHz. The full band isolator is designed and manufactured to provide a low insertion loss of 0.3dB typical with good flatness.



Compared to a Faraday isolator, it offers a much shorter insertion length for system integration. The isolator also offers a moderate isolation of 20dB. The input and output ports are WR-42waveguides with UG-595/U flanges.



Features

Low Insertion Loss

Moderate Isolation

Compact Configuration







Applications

Port Isolation

Module Integration

Part No.

OIS-42

RF Frequency Range(GHz)

18-26.5

Insertion Loss(dB)

    0.3

Isolation(dB)

    20

Return Loss

   20dB

Forward Power Handling(W) Reverse Power Handling(W)

Specification Temperature

Operating Temperature

25

5

+25 °C

-25°C~+60 °C





PDF

Outline

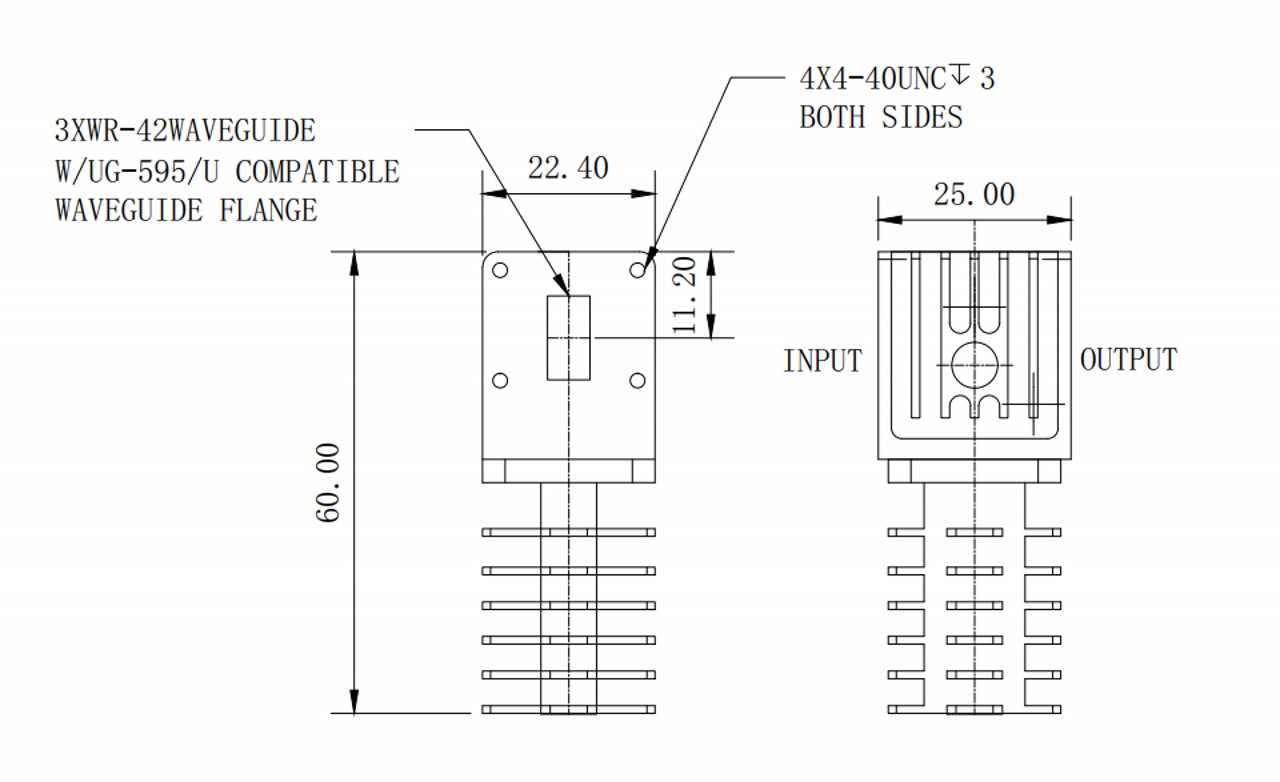

OIS 42 outline Ferrite Devices OIS-42

Plot

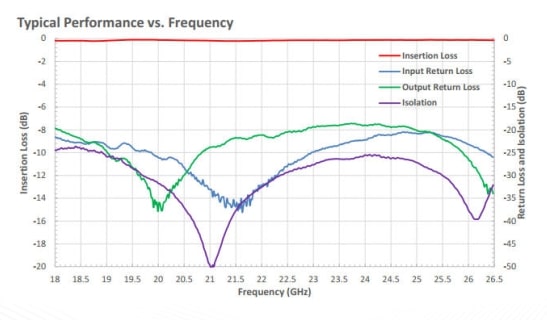

OIS 42 plot1 Ferrite Devices OIS-42

Additional information

Min. Frequency (GHz)

18

Max. Frequency (GHz)

26.5

Insertion Loss (dB)

Isolation (dB)

VSWR

NA
