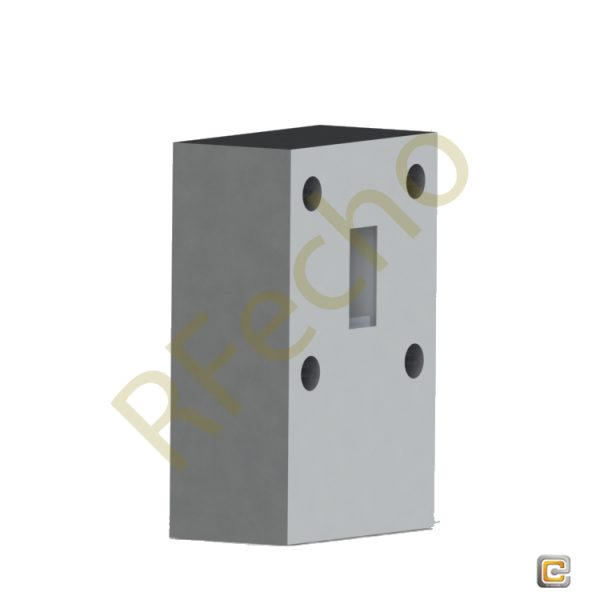

Model OIS-460480-05-18-22 is a Q band waveguide junction isolator that covers the frequency range of 46 to 48GHz.
Compared with a Faradayisolator, the waveguide junction isolator offers a lower insertion loss of0.5 dB nominal and a much shorter insertion length for systemintegration. As a tradeoff, the waveguide junction isolator only offers anisolation of 18 dB typical. The input and output ports are WR-22waveguides with UG-383/U flanges. Various configurations andfrequency ranges are offered under different model numbers.

Description

SPEC

Ferrite Devices



Model OIS-460480-05-18-22 is a Q band waveguide junction isolator that covers the frequency range of 46 to 48GHz. Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss of 0.5 dB nominal and a much shorter insertion length for system integration.



As a tradeoff, the waveguide junction isolator only offers an isolation of 18 dB typical. The input and output ports are WR-22

waveguides with UG-383/U flanges. Various configurations and frequency ranges are offered under different model numbers.



Features

Low Insertion Loss

Moderate Isolation

Compact Configuration











Applications

Port Isolation

Module Integration

Part No.

OIS-460480-05-18-22

RF Frequency Range(GHz)

46-48

Insertion Loss(dB)

    0.5

Isolation(dB)

    18

Return Loss

    18 dB

Power Handling(W)

Specification Temperature

Operating Temperature

5(CW)

+25 °C

-40°C~+85 °C





PDF

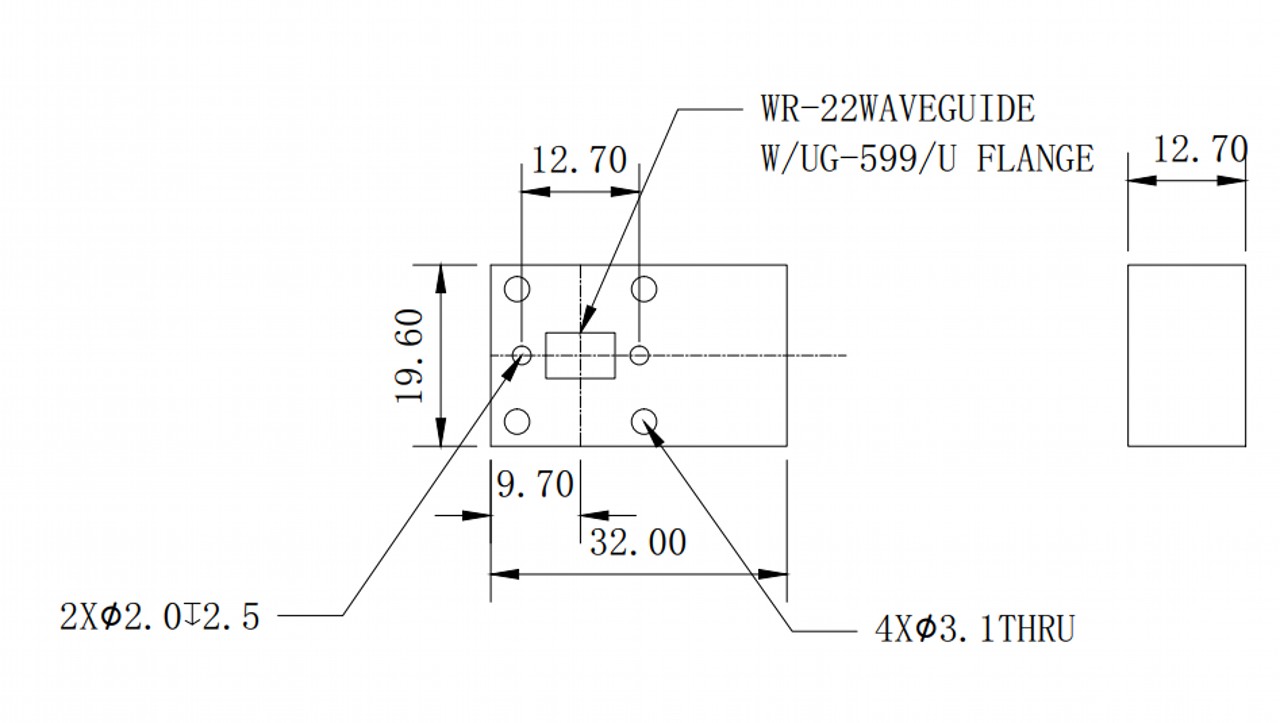

Outline

OIS 460480 05 18 22 outline Ferrite Devices OIS-460480-05-18-22

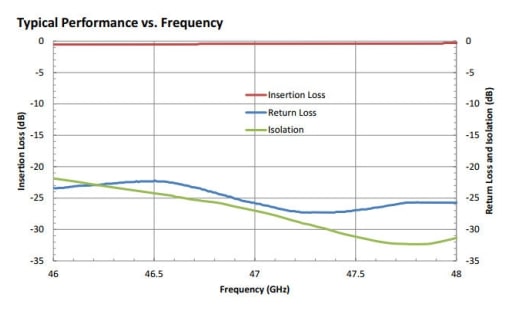

Plot

OIS 460480 05 18 22 plot1 Ferrite Devices OIS-460480-05-18-22

Additional information

Min. Frequency (GHz)

46

Max. Frequency (GHz)

48

Insertion Loss (dB)

Isolation (dB)

VSWR

NA
