Ferrite Devices OIS-540560-10-16-15

Ferrite Devices OIS-540560-10-16-15

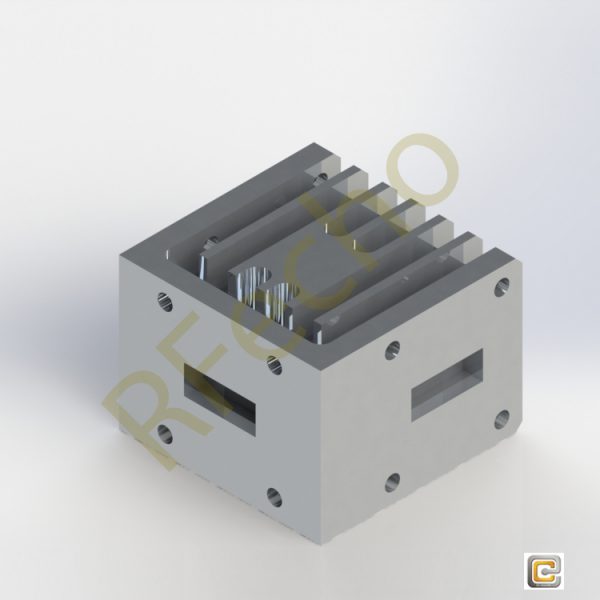

Model OIS-540560-10-16-15 is a V band waveguide junction isolator that covers the frequency range of 54 to 56GHz.
Compared with a Faraday isolator, the waveguidejunction isolator offers a lower insertion loss of 1.0 dBnominal and a much shorter insertion length for systemintegration. As a tradeoff, the waveguide junction isolatoronly offers a typical isolation of 16 dB. The input and outputports are WR-15 waveguides with UG-385/U flanges.

SKU: OIS-540560-10-16-15 Categories: Ferrite Devices, Passive Devices

Description

SPEC

Ferrite Devices



Model OIS-540560-10-16-15 is a V band waveguide junction isolator that covers the frequency range of 54 to 56GHz. Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss of 1.0 dB

nominal and a much shorter insertion length for system integration.

As a tradeoff, the waveguide junction isolator only offers a typical isolation of 16 dB. The input and output ports are WR-15 waveguides with UG-385/U flanges.



Features

Low Insertion Loss

Moderate Isolation

Compact Configuration





Applications

Port Isolation

Module Integration

Part No.

OIS-540560-10-16-15

RF Frequency Range(GHz)

54-56

Insertion Loss(dB)

    1.0

Isolation(dB)

    16

VSWR

    1.4:1

Forward Power Handling(W) Reverse Power Handling(W)



2(CW)

0.5(CW)







PDF

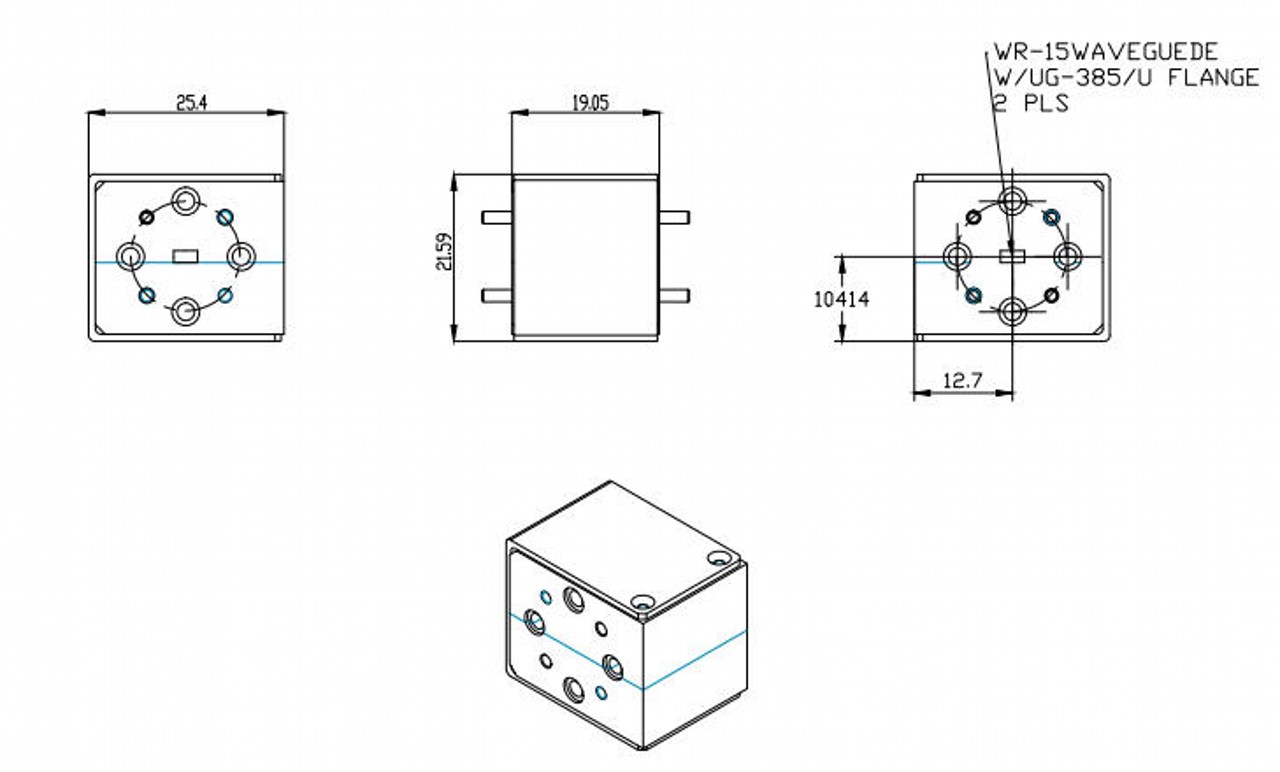

Outline

Ferrite Devices OIS-540560-10-16-15

Additional information

Min. Frequency (GHz)

54

Max. Frequency (GHz)

56

Insertion Loss (dB)

1

Isolation (dB)

16

VSWR

1.4:1
