Ferrite Devices OIS-590610-10-16-15

Ferrite Devices OIS-590610-10-16-15

0 out of 5

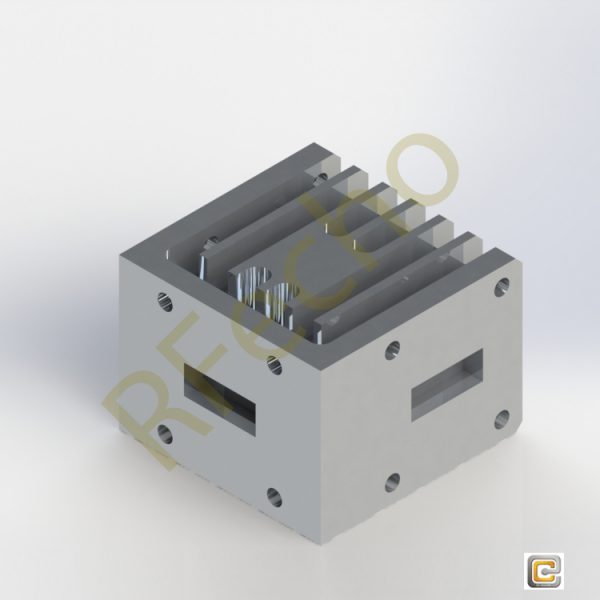

Model OIS-590610-10-16-15 is a V band waveguide junction isolator that covers
the frequency range of 59 to 61GHz.
Compared with a Faraday isolator, the waveguidejunction isolator offers a
lower insertion loss of 1.0 dBnominal and a much shorter insertion length for
systemintegration.
As a tradeoff, the waveguide junction isolatoronly offers a typical isolation of
16 dB.
The input and outputports are WR-15 waveguides with UG-385/U flanges.

Description

SPEC

Ferrite Devices



Model OIS-590610-10-16-15 is a V band waveguide junction isolator that covers the frequency range of 59 to 61GHz. Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss of 1.0 dB

nominal and a much shorter insertion length for system integration.

As a tradeoff, the waveguide junction isolator only offers a typical isolation of 16dB. The input and output ports are WR-15 waveguides with UG-385/U flanges.



Features

Low Insertion Loss

Moderate Isolation

Compact Configuration



Applications

Port Isolation

Module Integration

Part No.

OIS-590610-10-16-15

RF Frequency Range(GHz)

59-61

Insertion Loss(dB)

    1.0

Isolation(dB)

    16

VSWR

    1.4:1

Forward Power Handling(W) Reverse Power Handling(W)

Specification Temperature

Operating Temperature

2

0.5

+25 °C

-40°C~+85 °C





PDF

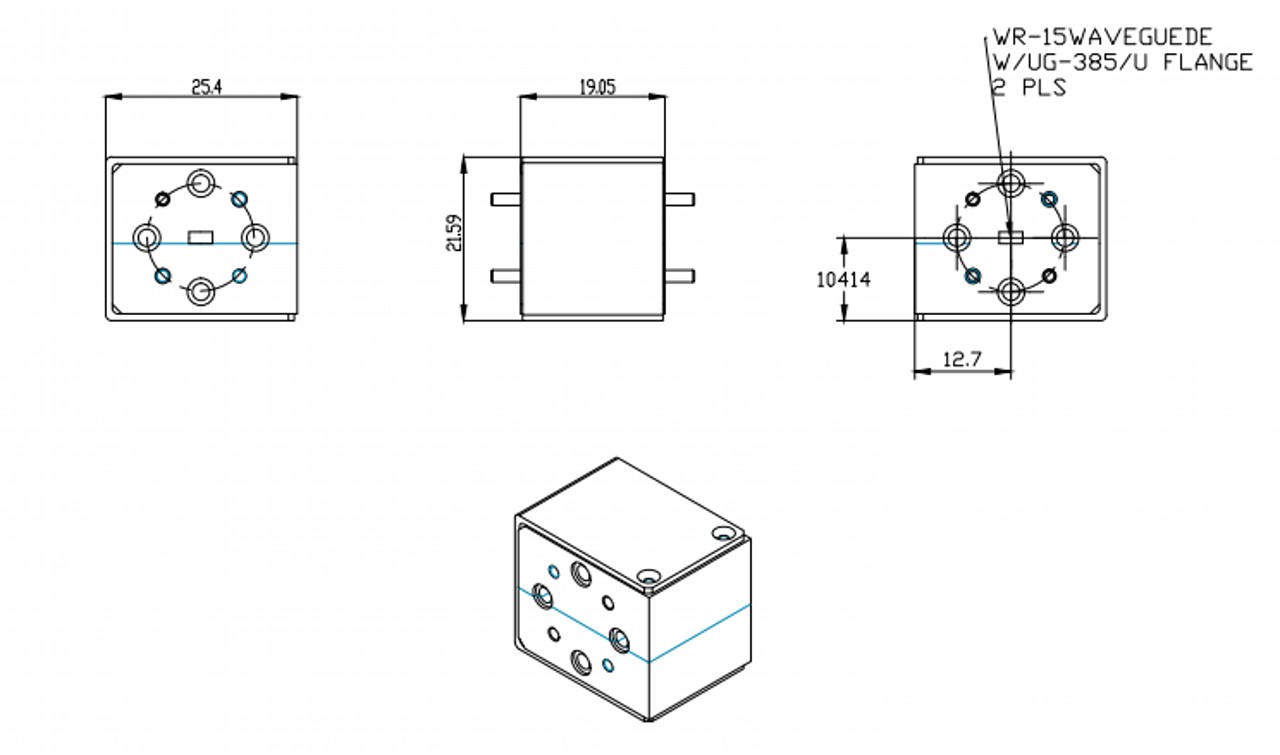

Outline

OIS 590610 10 16 15 outline Ferrite Devices OIS-590610-10-16-15

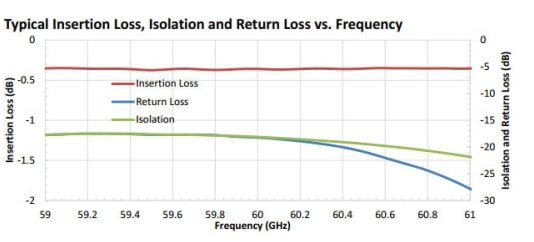

Plot

OIS 590610 10 16 15 plot1 Ferrite Devices OIS-590610-10-16-15

Additional information

Min. Frequency (GHz)

59

Max. Frequency (GHz)

61

Insertion Loss (dB)

Isolation (dB)

VSWR

1.4:1
