Aerial antenna OGGG-BD-36-P

OGGG-BD-36-P

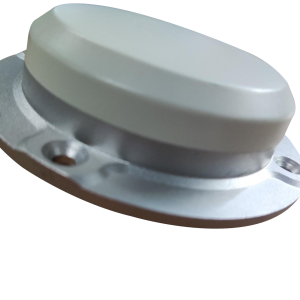

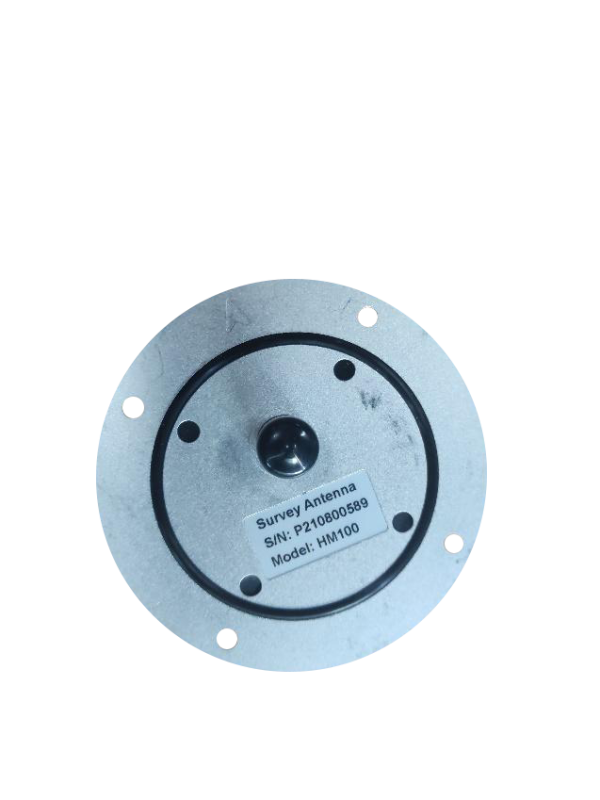

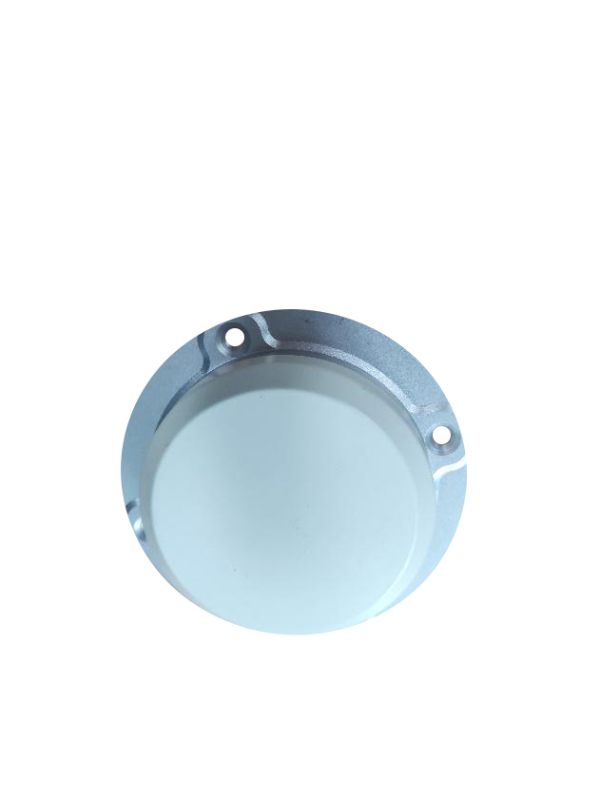

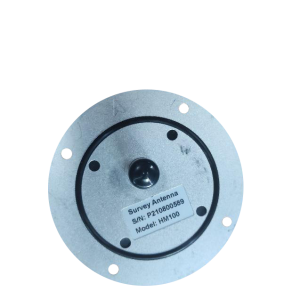

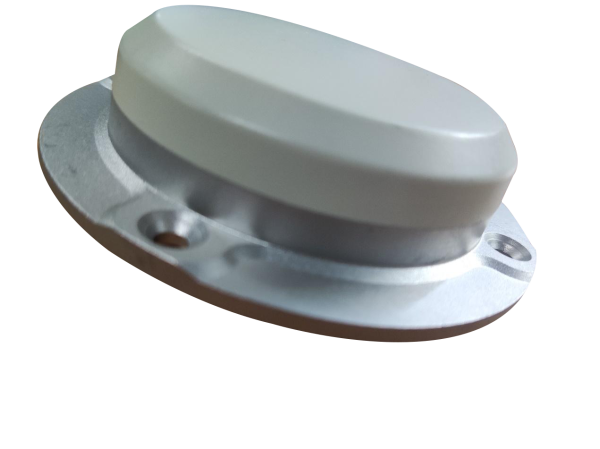

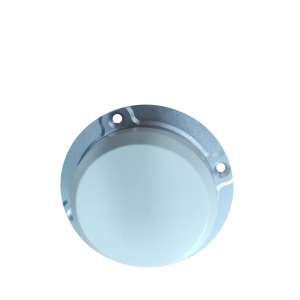

The OGGG-BD-36-P is a four-system multi-frequency aviation antenna supporting GPS, BDS, GLONASS, and GALILEO. This passive antenna offers high gain, a wide beam width, and excellent reception of low elevation signals, ensuring consistent star collection even in environments with significant signal occlusion. Its wide operating frequency bandwidth supports multi-system, multi-frequency point operations, especially the B3 frequency, enhancing system stability in global networking. Compact and lightweight, with a reliable structure, the antenna achieves an IP67 protection level after assembly and IP65 as a standalone unit, providing strong resistance to water and impact, thereby increasing UAV reliability. Additionally, its high out-of-band rejection minimizes interference from external sources like communication base stations, ensuring stable and precise performance across various demanding environments.

The OGGG-BD-36-P aviation antenna is designed for high-precision applications in unmanned aerial vehicles (UAVs) and other aviation sectors. It plays a crucial role in various scenarios, including precision agriculture, where UAVs equipped with the antenna enable accurate navigation and data collection, significantly improving farming efficiency. In aerial photography and telemetry, the OGGG-BD-36-P supports high-resolution image capture and long-distance data transmission, making it ideal for mapping and GIS applications. For disaster monitoring and patrol, this aviation antenna provides stable navigation support, ensuring UAVs can operate effectively in complex terrains and high-altitude environments during natural disaster response or surveillance missions. Additionally, the OGGG-BD-36-P is essential for security monitoring and power line inspections, allowing UAVs to perform regular power line checks and border patrols with strong signal reception and wide coverage, ensuring efficient and reliable operations. This high-performance antenna is key to enhancing UAV functionality across diverse fields by maintaining stable signal strength in various challenging environments .GPS antenna :https://www.rfecho.com/product-category/rf-antenna/gps-antenna/

Property

Value

Frequency range

BDSB1/B2/B3
GPS：L1/L2/LBand/L5
GLONASS：G1/G2/G3
GALILEO：E1/E6/E5b

Polarization

Right circular polarization

Max. Gain

2.5dBi

Voltage

DC3.3～12V

Antenna axis

≤3dB

Operating temperature

-40°C ~ +85°C

VSWR

≤2

Gain (dBi)

36±2
