Flexible Value — OM-141FLEX RF Cable

$74.42 – $253.02

E-Testing ECO

N male to N male · 18 GHz

F036-291S0-291S0-180-N

SKU: F036-291S0-291S0-180-N Categories: E-Testing ECO, OM-141Flex, RF Cables

Description

Technical specifications

18 GHzMaximum frequency
OM-141FLEXFlexible coaxial cable
Ø 4.14 mmBase cable jacket diameter
End A
N male, straight
End B
N male, straight
Armour
None
Assembly insertion loss
Confirm for required length and frequency
Base cable jacket
FEP
Base cable construction
PTFE, solid silver-plated copper-clad steel conductor, double shield
One-time bend radius, base cable
10.16 mm
Repeated bend radius, base cable
40.13 mm

Cable details

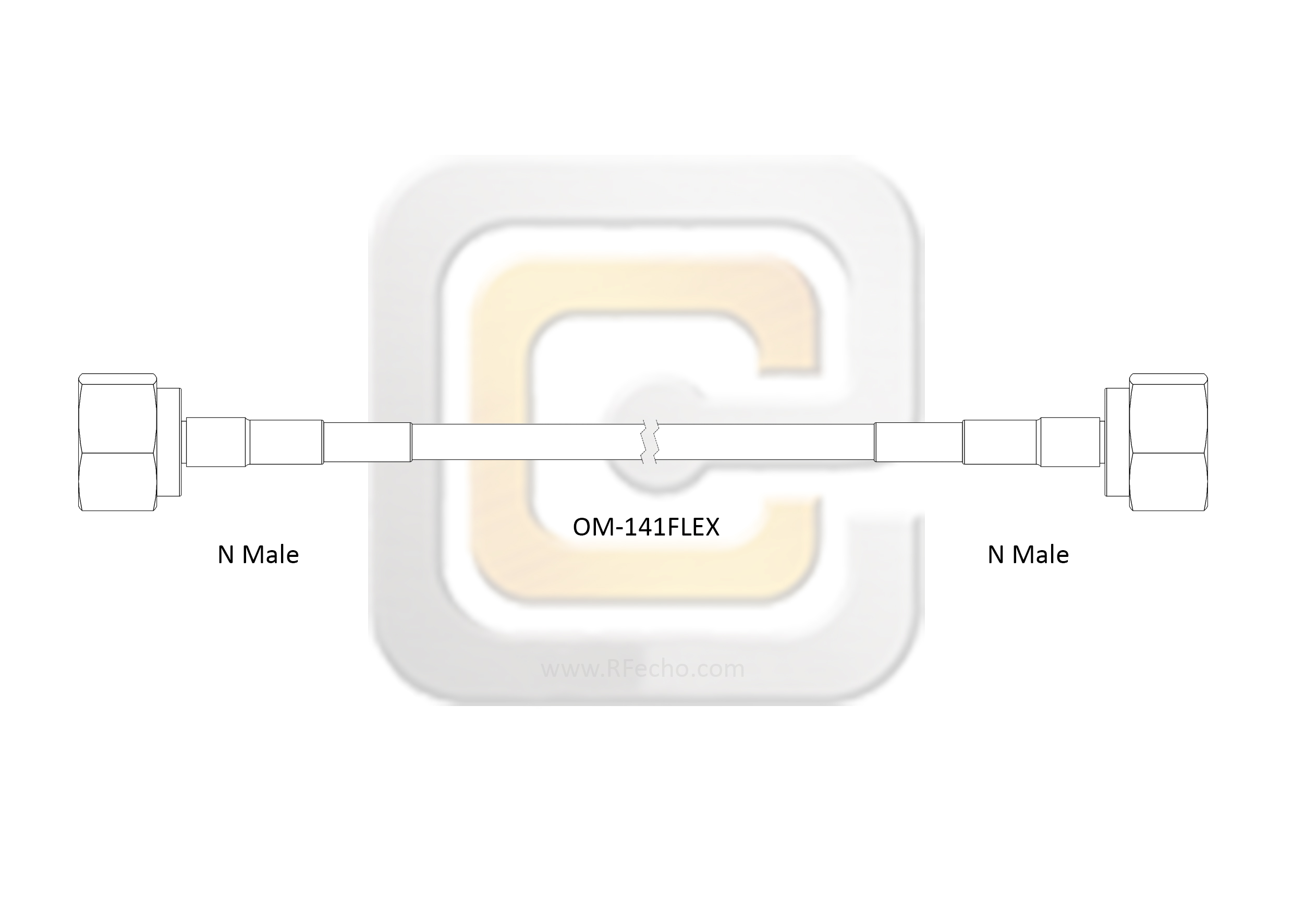

N male — OM-141FLEX — N male

OM-141FLEX plain cable routing
Cable routing · Cable family routing illustration. See connector close-ups for this SKU.

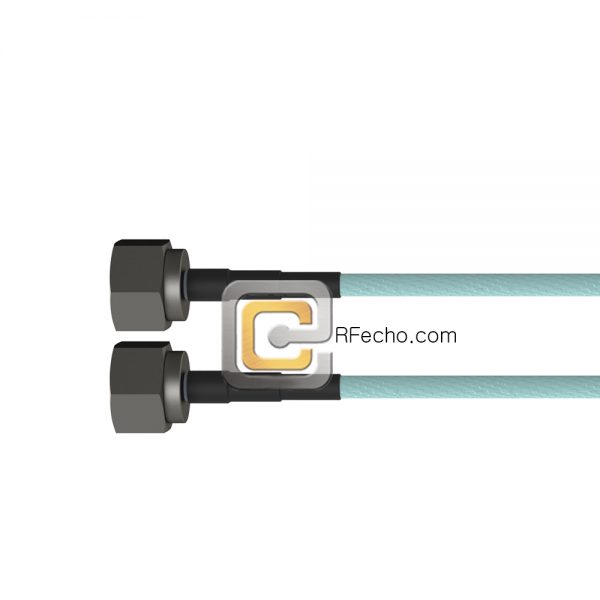

N straight male connector close-up
N male × 2 · Straight connector.

Cable cutaway

OM-141FLEX construction cutaway
Illustrative cable construction. Layer thicknesses are schematic.

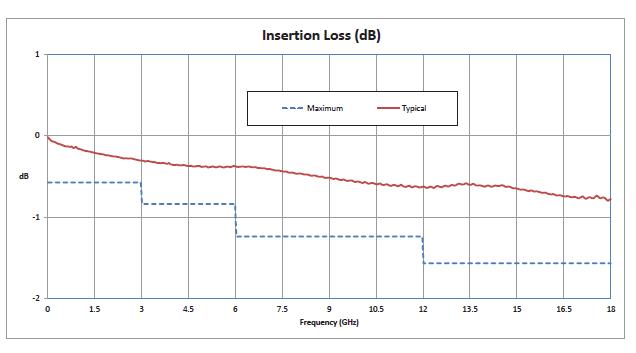

Loss versus frequency

OM-141FLEX loss versus frequency
24 in reference assembly. This graph includes connector effects and is specific to the stated reference length and configuration.
