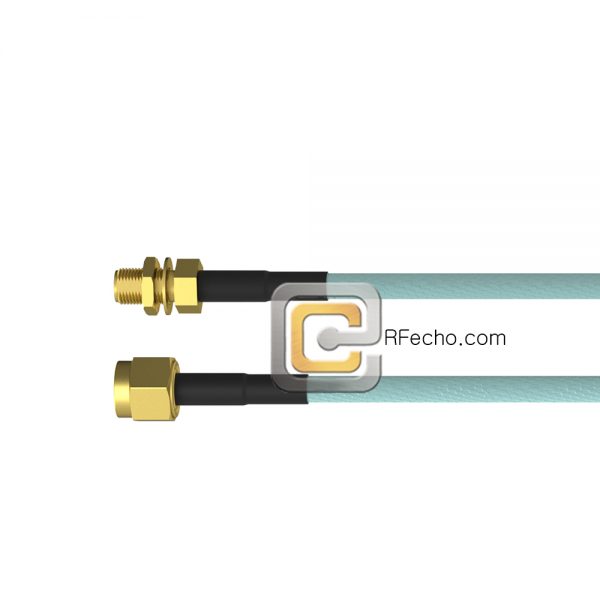

Low Loss SMA Female Bulkhead to SMA Male, 26.5 GHz, OM-141FLEX Coax and RoHS

RF cable assembly part number F036-320S1-321S0-265-N is a low loss SMA Female Bulkhead to SMA Male coaxial cable. RFecho has huge variety of coaxial cables for all types of applications including radio, antenna and interconnect with RF components. Low loss SMA Female to SMA Male cable OM-141FLEX coax and RoHS, like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide.

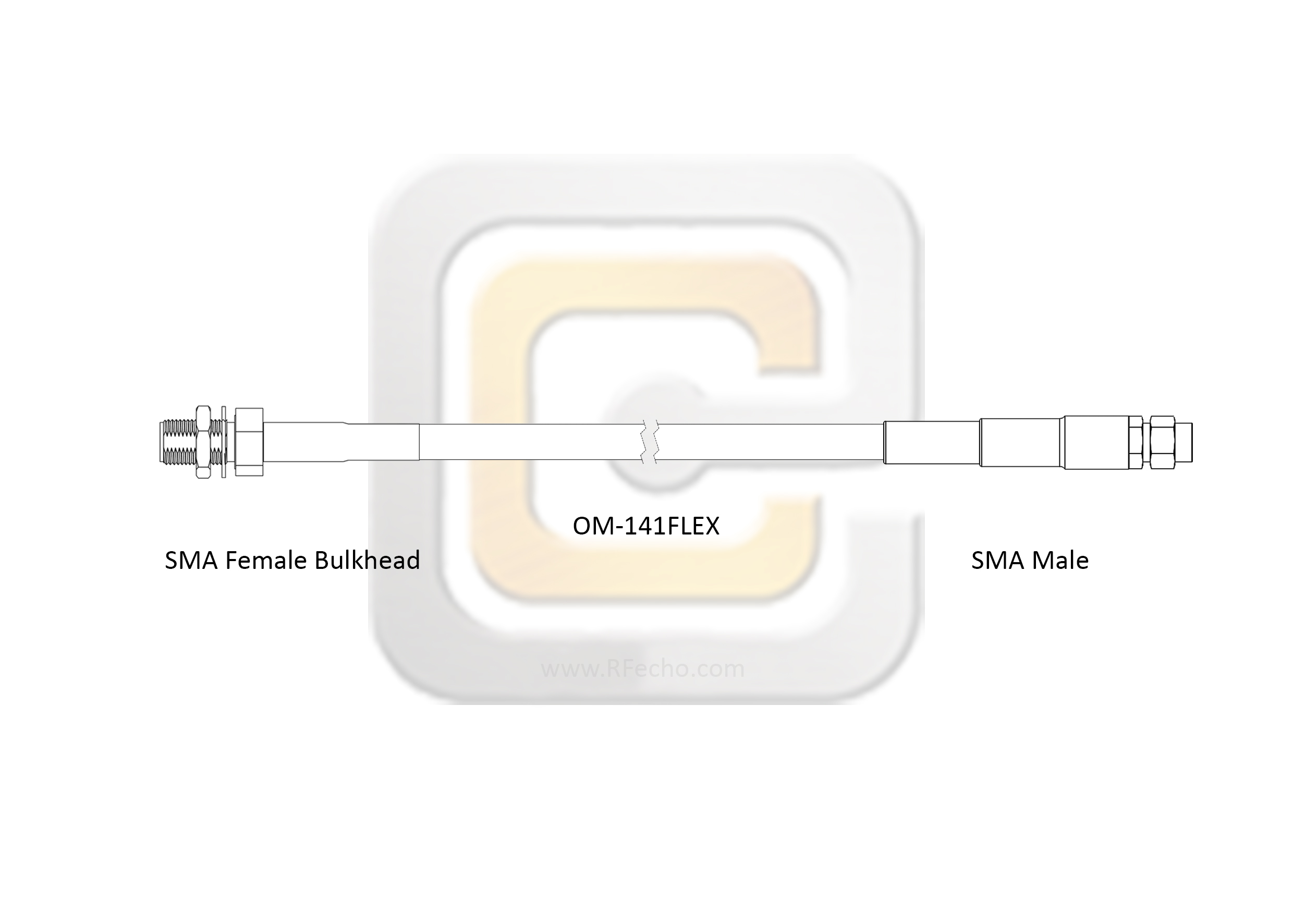

This RFecho’s RF coaxial assembly is manufactured with SMA type cable connection on one end and a SMA type cable connection on the other end. Our type SMA cable assembly has a Female gender on end one and Male on other two. Rfecho type SMA Female to type SMA Male cable assembly F036-320S1-321S0-265-N is built with OM-141FLEX coax and it is a Flexible design. RFecho is where to buy a high-quality type SMA Female to SMA Male cable assembly for quick shipment worldwide.

RFecho also have an extensive selection of low to high frequency coaxial cables that will ship from our warehouse. Custom cable assemblies are also available on request.

SKU: F036-320S1-321S0-265-N Categories: E-Testing ECO, OM-141Flex, RF Cables

Description

Additional information

Cable Type

OM-141FLEX

Cable Coax Type

Flexible

Cable Armour

None

Connector 1

SMA

Connector 1 Gender

Female

Connector 1 Body Style

Straight

Connector 1 Mounting Method

Bulkhead

Connector 1 Connection Method

Standard

Connector 2

SMA

Connector 2 Gender

Male

Connector 2 Body Style

Straight

Connector 2 Mounting Method

None

Connector 2 Connection Method

Standard
