Ultra-Low Loss — LL335i RF Cable

ll335i n sma plain transparent wm.png Ultra-Low Loss — LL335i RF Cable
ll335i n tnc armored transparent wm.png Ultra-Low Loss — LL335i Armored RF Cable
0 out of 5
( There are no reviews yet. )

$108.65 – $465.86

E-Testing ECO

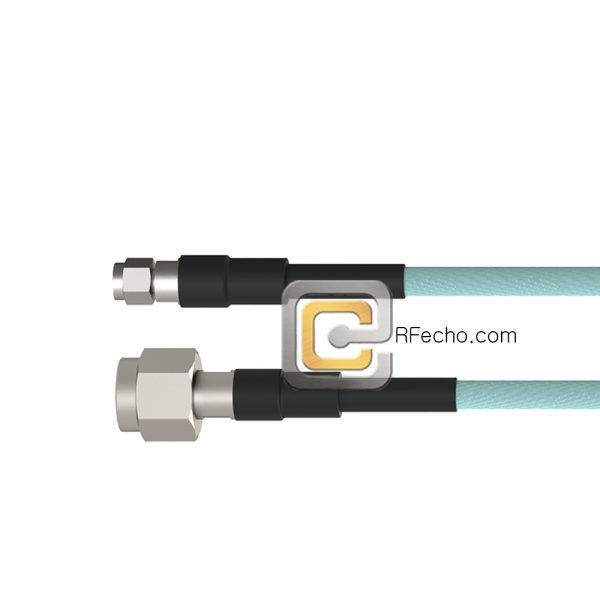

SMA male to TNC male · 11 GHz

F040-321S0-411S0-110-N

SKU: F040-321S0-411S0-110-N Categories: E-Testing ECO, LL335i, RF Cables
Add to Wishlist

Description

Technical specifications

11 GHzMaximum frequency
LL335iFlexible coaxial cable
Ø 7.62 mmBase cable jacket diameter
End A
SMA male, straight
End B
TNC male, straight
Armour
None
Assembly insertion loss
Confirm for required length and frequency
Base cable bend radius
38.1 mm
Typical cable attenuation at 18 GHz
0.72 dB/m

Cable details

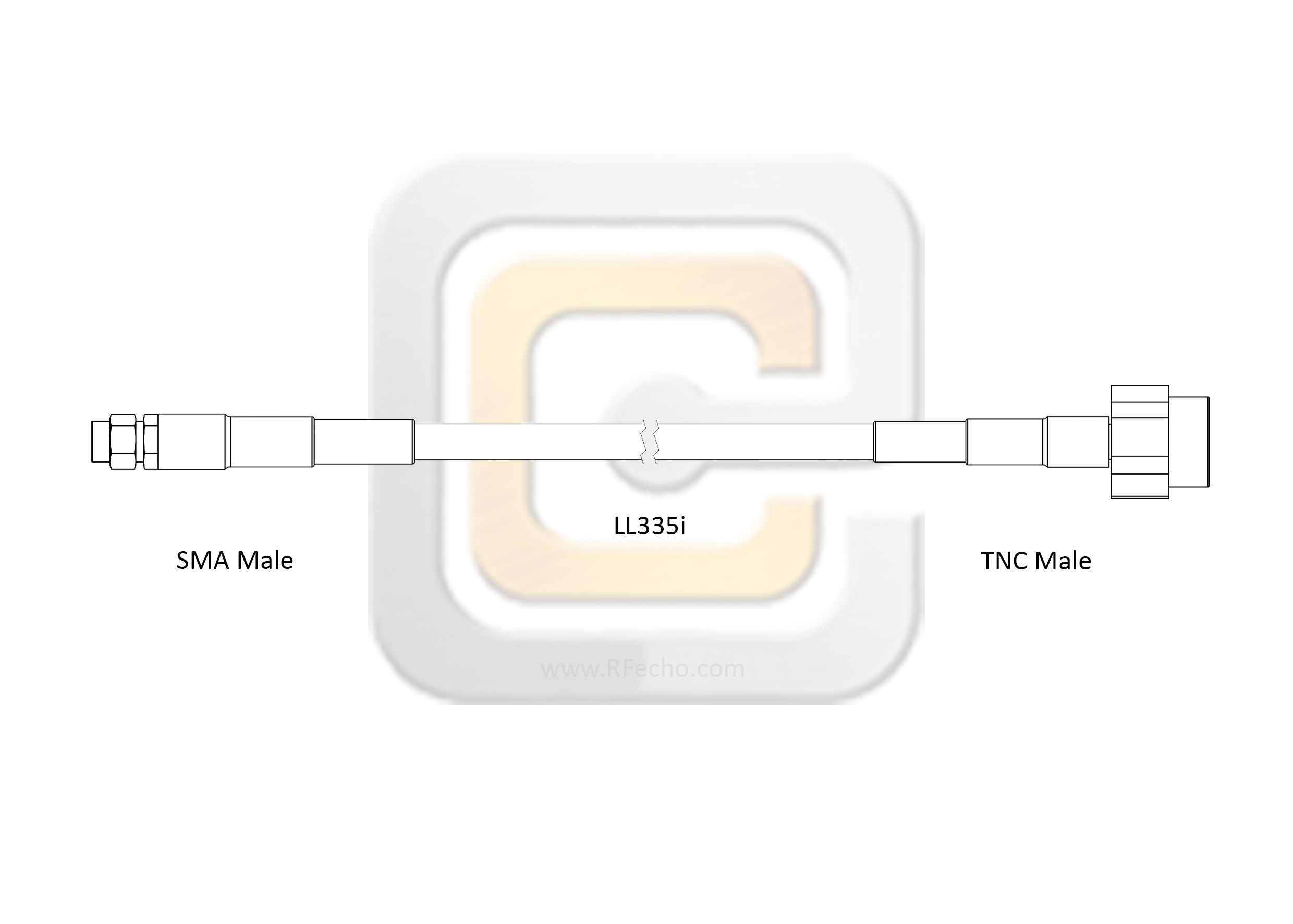

SMA male — LL335i — TNC male

LL335i plain cable routing
Cable routing · Cable family routing illustration. See connector close-ups for this SKU.
SMA straight male connector close-up
SMA male · Straight connector.
TNC straight male connector close-up
TNC male · Straight connector.

Cable cutaway

LL335i construction cutaway
Illustrative cable construction. Layer thicknesses are schematic.

Loss versus frequency

LL335i loss versus frequency
Typical base cable attenuation. The assembly frequency rating is listed above. Total insertion loss depends on length, frequency and connectors.
