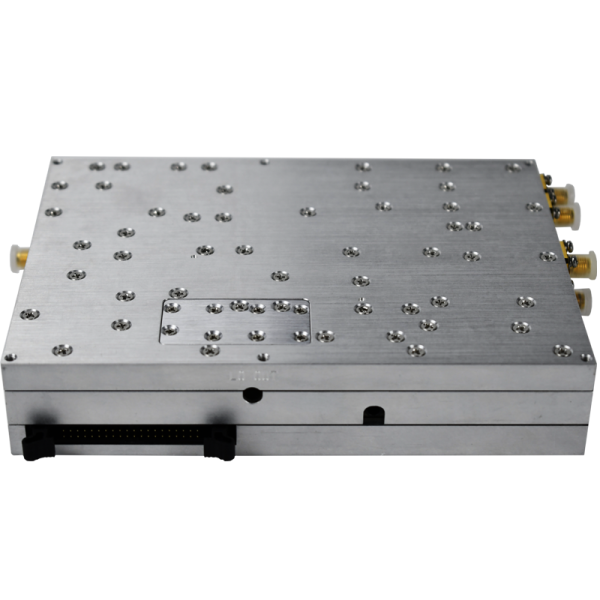

MSA200 Modular Spectrum AnalyzerThe frequency range from 9kHz to 20GHz

MSA200 Modular Spectrum AnalyzerThe frequency range from 9kHz to 20GHz

0 out of 5

$16890

MSA200 spectrum analyzer modular is a wide band, high-performance, small-sized microwave spectrum analyzer that measures
frequency range from 9kHz to 20GHz. The highly integrated RF front-end and digital processing make it compact and
capable of independent signal processing, suitable for microwave test system integration. The main technical specification of MSA080
spectrum analyzer modular are comparable to desktop spectrum analyzer, with up to 80dB of IF suppression and minimal residual response
specification to meet the requirements of radio monitoring. The maximum 40MHz real-time bandwidth meets the testing needs of radio
signals such as mobile communication, TV, and WiFi, and the 145MHz analog IF output provides users with multiple testing options. The
SCPI commands make it easy to replace system test equipment.

SKU: MSA200 Categories: Active Device, Spectrum, Testing Instrument

Description

SPEC

Spectrum Analyzer

MSA200 Modular Spectrum Analyzer
The frequency range from 9kHz to 20GHz

MSA200

MSA200 spectrum analyzer modular is a wide band, high-performance, small-sized microwave spectrum analyzer that measures
frequency range from 9kHz to 20GHz. The highly integrated RF front-end and digital processing make it compact and
capable of independent signal processing, suitable for microwave test system integration. The main technical specification of MSA080
spectrum analyzer modular are comparable to desktop spectrum analyzer, with up to 80dB of IF suppression and minimal residual response
specification to meet the requirements of radio monitoring. The maximum 40MHz real-time bandwidth meets the testing needs of radio
signals such as mobile communication, TV, and WiFi, and the 145MHz analog IF output provides users with multiple testing options. The
SCPI commands make it easy to replace system test equipment.

Property

Value

Frequency Range

9kHz∼20.0G Hz

Amplitude Accuracy

1MHz∼13.5GHz,±1.5dB;13.5GHz∼20GHz,±2.0dB

Phase Noise(@10kHz,f=3GHz)

≤-95dBc/Hz

Noise Level

<-160dBm

Model Type

Module

Power

Adapter

Dimensions

165mm ×120mm ×32mm

Features

Swept Spectrum Analysis

Miniaturized design, Single power supply, Seamless system integration

LAN and USB interfaces for remote control and measurement data transfer

Applications

Primarily utilized in the electronic communications industry and microwave electronic measurement sectors, it is also well-suited for educational and research purposes, product development, manufacturing, maintenance. and other related scenarios.

Datasheet

Characteristics

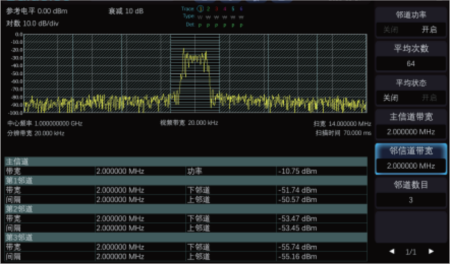

Adjacent Channel Power Measurement

Measures the power level of the main channel, as well as the powerlevels of the two adjacent channels before and after it, along with theirpower differences relative to the main channel.

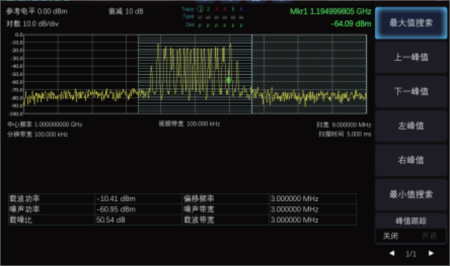

Carrier-to-noise Ratio Measurement

Measures the power of carriers and noise within a specified bandwidth,as well as the ratio between the two.

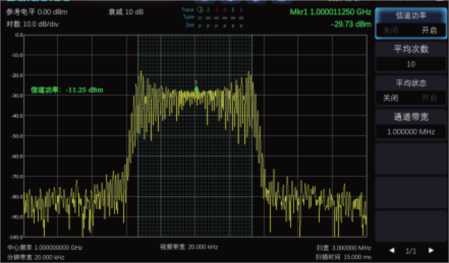

Channel Power Measurement

Measures power and power density within specified channel bandwidths.

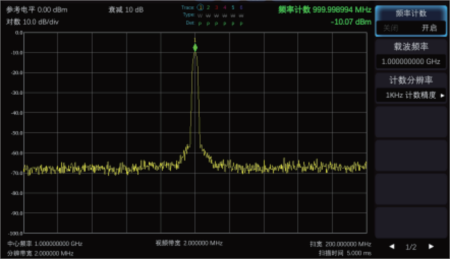

Frequency Counting Measuremen

Provides more accurate frequency accuracy for testing signals

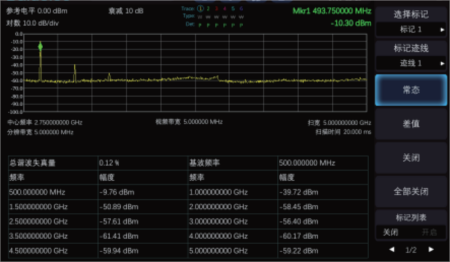

Harmonic Distortion Measurement

Measures the power of each harmonic of a carrier signal and thetotal harmonic distortion. The maximum measurable harmonic isthe 10th harmonic.

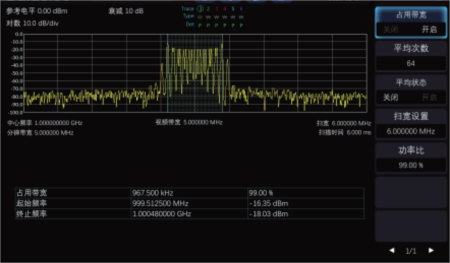

Occupied Bandwidth Measurement

Integrates to calculate the total power over the entire sweep width.and then calculates the bandwidth occupied by the specified powerratio based on the set power ratio.

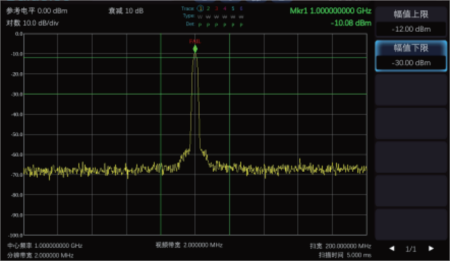

Pass-Fail Test

Verifies whether the tested signal is located within the set windowor area.

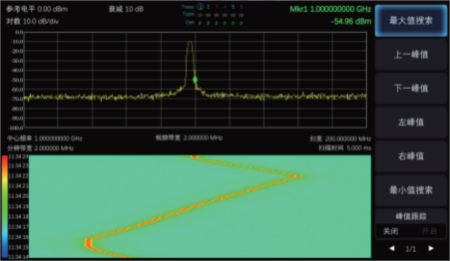

Spectrum and Spectrogram

Measures the variation of the spectrum over time.

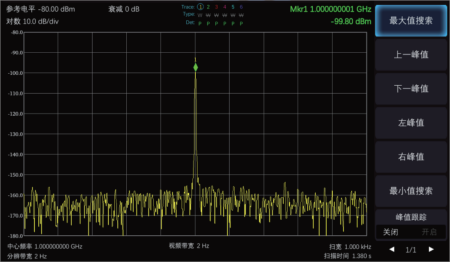

Swept Spectrum Analysis

Wide frequency band, high dynamic range, excellent small signalmeasurement capability, equipped with a variety of advanced measurementfu榫nctions.

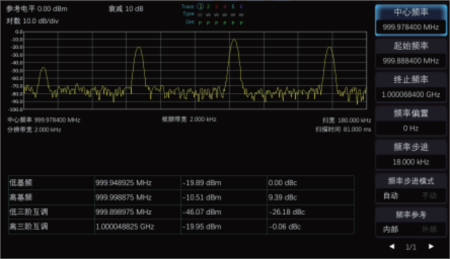

Third-order Intermodulation Measurement

Measures parameters of the third-order intermodulation productof two signals (with equal amplitude and close frequencies).

Additional information

Frequency Range

9kHz∼20.0G Hz

Amplitude Accuracy

1MHz∼13.5GHz,±1.5dB;13.5GHz∼20GHz,±2.0dB

Phase Noise(@10kHz,f=3GHz)

≤-95dBc/Hz

Model Type

Module

Power

Adapter

Dimensions

165mm ×120mm ×32mm
